Product Details:
|
| Screw No.: | Single-screw | Material Of Screw And Barrel: | 38crmoala |
|---|---|---|---|
| Product Type: | PE Pipe | Color: | Optinal |
| Automation: | Automatic | After-sales Service: | Provided |
| High Light: | 630mm PE Plastic Pipe Production Line,310mm PE Plastic Pipe Production Line,630mm Gas Pipe Extrusion Machine |
||
200-500mm PE Gas Pipe Extrusion Machine Plastic Pipe Production Line
200-500mm PE Gas Pipe Extrusion Machine Plastic Pipe Production Line is spefialized for PE/PP material and make pipe. The extruder equipped with barrel unit and mixing structure, we use special screw and barrel for PE/PPR/ABS...Material, special design for shaping and cooling system, the vacuum shaping tank can ensure the stability of size and roundness, speed controllers are used in extruder, haul-off to offer stability and precision. The whole line can adopt PLC control system and large liquid crystal screen, which makes the operation very convenient. The line can be equipped with another co-extruder used for extruding color line.
| Model/Item | Pipe range |
Extruder |
Max.output | Motor power | Total power |
| PE-63 | 16-63mm | SJ65/33 SJ25-25 | 120-180kg/h | 45KW | 110KW |
| PE-110 | 16-110mm | SJ65/33 SJ25-25 | 150-200 kg/h | 55KW | 130KW |
| PE-160 | 50-160mm | SJ75/33 SJ25-25 | 150-220 kg/h | 75KW | 150KW |
| PE-250 | 75-250mm | SJ75/33 SJ25-25 | 280-350 kg/h | 90KW | 280KW |
| PE-315 | 110-315mm | SJ90/33 SJ25-25 | 250-350 kg/h | 132KW | 350KW |
| PE-450 | 160-450mm | SJ90/33 SJ25-25 | 350-450 kg/h | 160KW | 400KW |
| PE-630 | 315-630mm | SJ120/33 SJ25-25 | 550-850 kg/h | 200KW | 550KW |
| PE-800 | 450-800mm | SJ120/33 SJ25-25 | 800-1300kg/h | 250KW | 750KW |
Configuration:

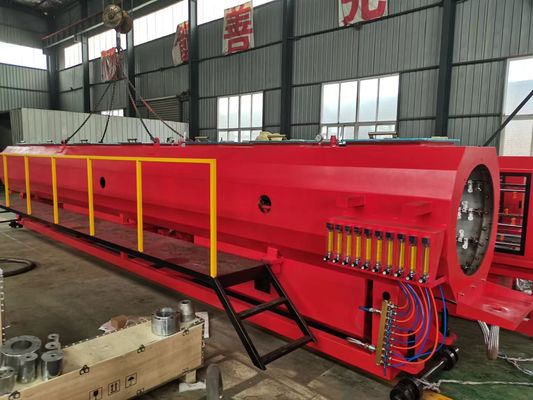

PE pipe production line contains single screw extruder, mould, single screw extruder (for mark line), calibrating tank, cooling tank, haul-off, cutter and stacker.
Application:

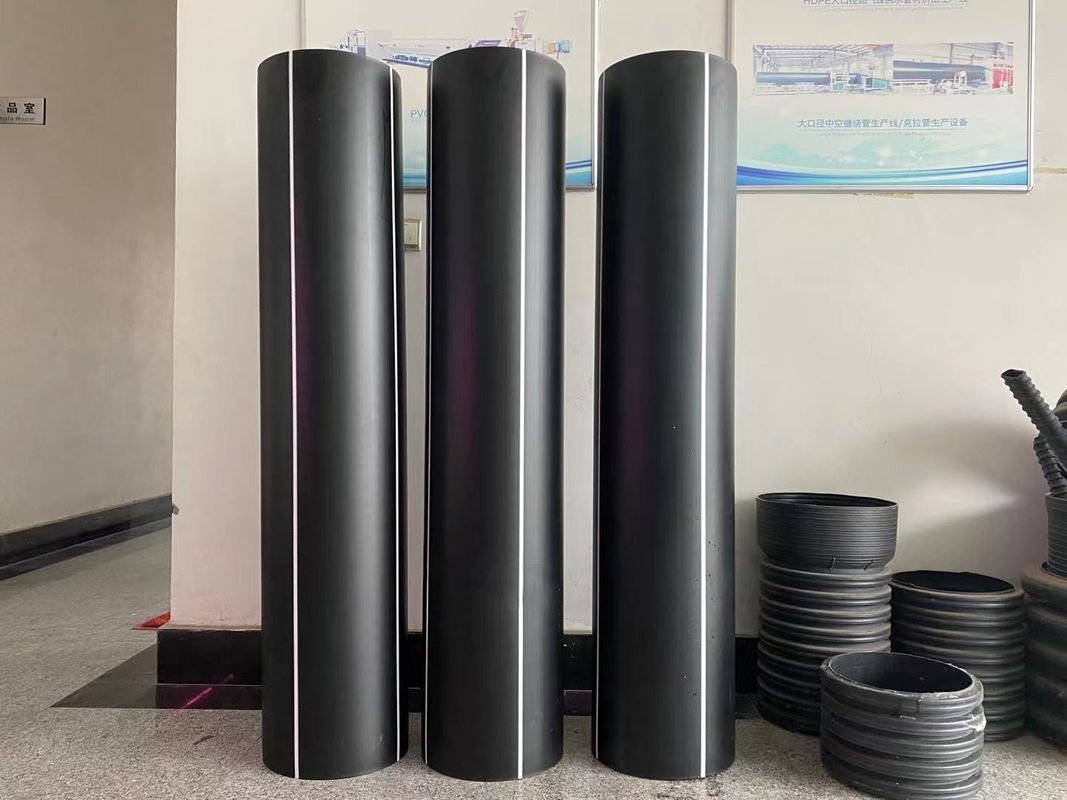

PE pipe production line is mainly used to produce PE water pipe, gas pipe, drain pipe and so on.
Description:
Single screw extruder, very suitable to process PE resin with high capacity, max capacity can reach 1000kg/h
The production line adopts reasonable design, absorbing safe producing technology, acquiring CE certificate.
Diameter range is 16mm-800mm, which can be changed into inch standard to meet clients' special requirement.
At present, China's pipe market, plastic pipes are developing steadily, PE pipe, PP-R pipe, UPVC pipe have a place, and the strong development momentum of PE pipe is eye-catching. PE pipes are used in a wide range of fields. Among them, water supply pipes and gas pipes are among the largest application markets. Reliable quality and reasonable price have won a good reputation for our company. Our company has rich production experience in the production of PE pipe moulds. The development of PE pipes will inevitably put forward higher requirements for molds. Due to the product specifications, models and detailed parameters, please contact us! (model can be customized)
