Product Details:
|
| Main Electrics: | Siemens / Schneider | Temperature Control: | Omron |
|---|---|---|---|
| Condition: | New | Inverter: | ABB |
| Automation: | Automatic | Voltage: | According To Requirement |
| High Light: | 4kw double wall corrugated pipe machine,800mm double wall corrugated pipe machine |
||
400-630mm High Speed Single Wall Corrugated Pipe Extrusion Line
400-630mm High Speed Single Wall Corrugated Pipe Extrusion Line has a unique shape structure, so it has the characteristics of high ring rigidity, high impact strength, low meter weight, creep resistance, external pressure resistance, corrosion resistance (acid, alkali, salt, etc.), pollution-free, long service life (up to 50 years), etc.
| Model | Diameter | Extruder Model | Speed(m/min) | Capacity(kg/h) | Power(kw) | Dimension(m) |
| SW-630 | 400-630 | SW-92/188 | 0.08-0.8 | 700 | 245 | 48*2.5*2.5 |
Application Area
The pipe is widely used in municipal drainage and sewage system, and it will be the renewal product of cement pipe, cast iron pipe and ceramic pipe. Low assembly cost, easy operation, easy connection and economy will make the pipe have more extensive application prospect and market potential.
If you want to buy High Speed Corrugated Pipe Extrusion line Single Wall Corrugated Pipe Extrusion Production Line please contact us, Qingdao Win Win Machinery Manufacturing Co., Ltd., the first-class quality and competitive price is your best choice!
Constituent Part
The composition of the production line is as follows:
Loading dryer
Extruder

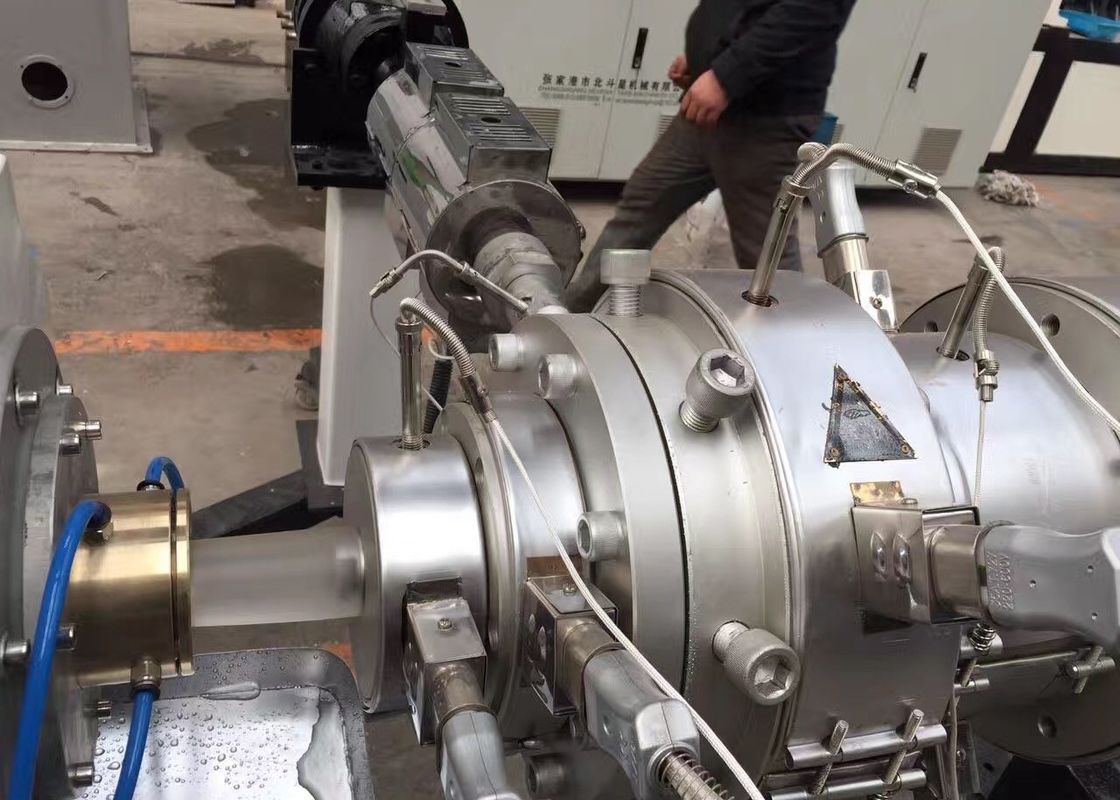

Extruder head
Molding machine
Winder
Wire feeder
400-630mm High Speed Single Wall Corrugated Pipe Extrusion Line can continuously produce PE, PP, EVA, PVC and other single wall corrugated pipes. The plastic single wall corrugated pipes produced by our production line are characterized by smooth inner and outer walls, consistent joints, high temperature resistance, corrosion resistance, wear resistance, high strength, good flexibility, etc. It is widely used in the fields of automobile harness, electrical wiring for home decoration, electrical wiring, machine tool wiring, protective sleeve for lighting wiring, air conditioning, washing machine, wash basin drain pipe, medical equipment ventilator, etc.
The high-speed plastic single wall corrugated pipe production line carefully developed by our company has high degree of automation and stable performance.
The molding machine adopts horizontal full closed structure, which is easy to operate and elegant in appearance. Through the gear transmission module, the formwork is cooled by water, the products are cooled by air, and the molding track is long, so that the corrugated pipe produced has fast molding speed, uniform corrugated shape, consistent seams and smooth inner and outer walls Smooth, stable quality, and can maintain high-speed operation.
After forming, the bellows joint is very perfect, no staggered joint can ensure the strength of the pipe, not easy to damage, beautiful appearance, and the machine can run for a long time without stopping. Under the control of water cooling and air cooling, the line speed can reach 25-30 meters per minute, which is three times of the production speed of the honest production line. The bellows forming machine can be equipped with 90 pairs of modules.
The forming die is run by gear and rail, and the replacement of the die is convenient for 15 minutes. It can be designed on a pair of molds to accommodate two sizes of apertures. It is easy to operate, does not need to change the grinding tools frequently, reduces the time of changing the molds, improves the working efficiency, and saves the cost of the molds. The unique threading technology is easy to operate, which makes the bellows threading more convenient.
