200-500mm Three Layers PE Solid Pipe Plastic Pipe Production Line

200-500mm Three Layers PE Solid Pipe Plastic Pipe Production Line

200-500mm Three Layers PE Solid Pipe Plastic Pipe Production Line is primarily used in the manufacturing of PE pipes with diameters ranging from 16mm to 1200mm. The various thickness of the pipes produced can make them suitable for applications range from urban water supply to gas transportation. This line also excels in the production of anti-flammable and anti-static electricity pipes using a two or three layer spiral mould for use in mining industries. Pipes produced feature even wall-thickness and perfect roundness. Through switching or adding certain part of machine unit, this line can also be customized to extrude pipes of various other kinds.

Brief Introduction:

1. We offer high speed single-screw extruder of following modes, including SJ65, SJ75, SJ90, SJ105, SJ120 and SJ150, SJ180. Suitable for PE, HDPE, PP, PPR , PPH, PPB pipe extrusion.

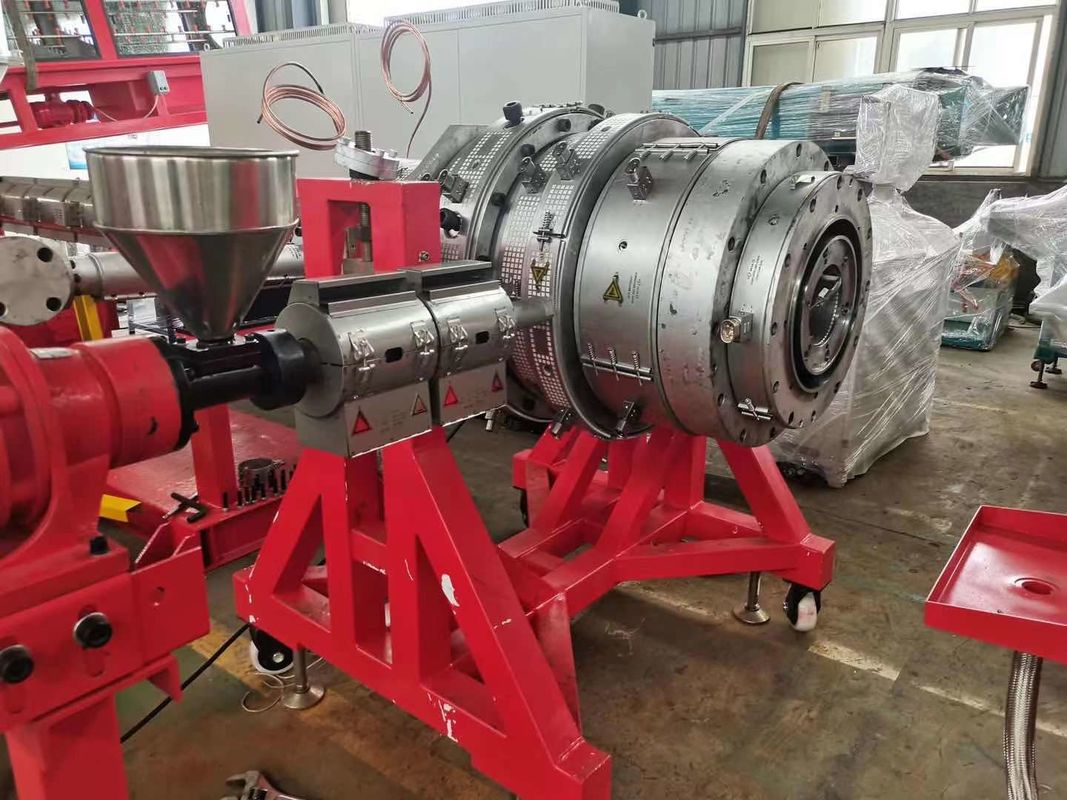

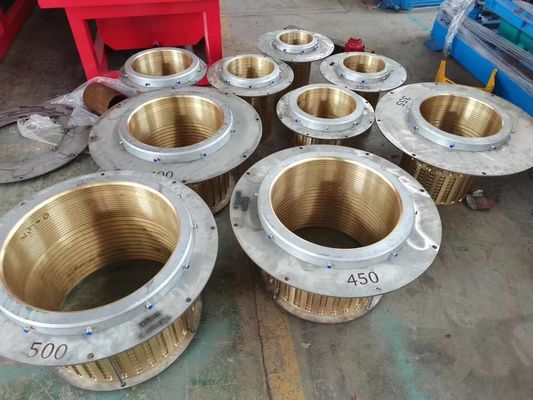

2. Optimized spiral die ensure the melt distribution uniform to make the pipe wall uniform and guarantee the pipe pressure. Equipped copper Vacuum calibration sleeve with water lubrication ring, twin-chamber vacuum tank with spraying cooling and semicircular Nylon support, to ensure fast calibration, increase the production capacity and lower the operation. These designs are especially good for big diameter pipe production and high speed production.

3. All of vacuum tank and water cooling tank is made from stainless steel, dual water supply pipe line with filtration system, water level and temperature control system and optimized positioning of the bayonet-type spray nozzles.
4. The twin or multi caterpillar haul-off unit is equipped with high quality rubber block or rubber belt (for high speed production) accuracy driving and control system ensure the speed stable and running reliable.

5. PPR pipe has the advantages of light weight, good corrosion resistance and long service life.Moreover, PPR pipe is safe and non-toxic, can be used in cold and hot water pipelines, as well as drinking water system. The maximum working temperature of PPR tube can be 90 degree. At 70 degree, its service life can reach more than 50 years. While in room temperature, its service life is more over 100 years.

Application:
Water supplying and transportation pipe
Gas distribution and transportation pipe

Main Features of 200-500mm Three Layers PE Solid Pipe Plastic Pipe Production Line:
The optimum spiral structure-feeding throat highly improves the output of extruder;
Accurate temperature control system ensures materials melting performance;
Unique screw design achieves better plasticizing and high quality products;
Precisely designed gearbox with a high torsion guarantees stable running;
"H" shape frame to decrease vibrating of extruder;
Advanced PLC operation system realizes synchronization and automation;
Adopt automatic water temperature & level control and special independent filters on both vacuum and cooling tanks;
Offer stable haul-off unit with 2-12 caterpillars;
Provide saw & chip-free cutting options;
Low energy consumption, excellent performance, and easy maintenance.

Adavantages:
*PLC control, high automation;
*Adopting specialized screw with good plasticizing effect.
*Vacuum calibration, constant temperature control, eliminating pipe stress;
*Adopting co-extrusion head to add color line;
*High extrusion capacity, low and equal temperature of melt.
*Wide processing range of raw materials.
