Product Details:
|
| Product Type: | PVC Pipe | Screw No.: | Double-screw |
|---|---|---|---|
| Capacity: | 300kg/H | Motor Power: | 37KW |
| Computerized: | Computerized | Condition: | New |
| High Light: | 110mm Conical Twin Screw Extruder PVC,50mm Conical Twin Screw Extruder PVC,110mm conical screw extruder machine |
||

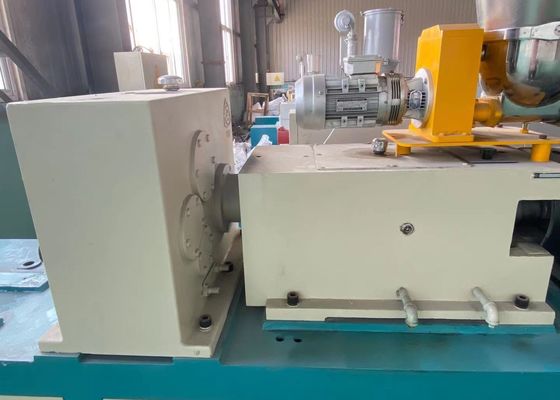

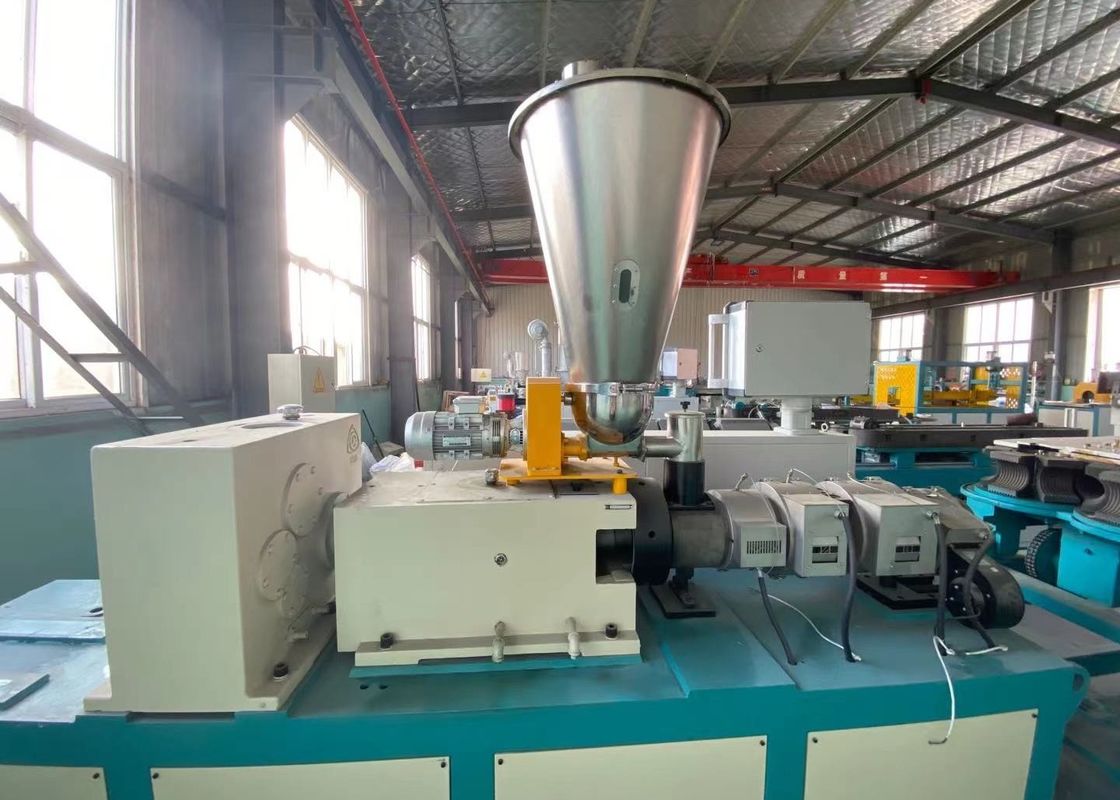

50-110mm PVC (Electric Conduit) Conical Twin Screw Extruder Machine
50-110mm PVC (Electric Conduit) Conical Twin Screw Extruder Machine is mainly used in the area of agriculture water supply system, architectural water supply system, pavement of cables, ect, as well as PVC pipe material of all sorts of pipe caliber and wall thickness, this machine group consists mainly of twin concial screws extruder, vacuum calibrating tank, haul off unit, cutting unit, tilter, ect, single screw extruder and haul off unit have applied impoded AC inverter, both vacuum pump and driving motor have applied excellent products, the drawing machine included two-claw type, four claw type, six-claw type, ect, and following planetary cutting machine, it has reached world advanced level.
| Machine model |
Machine model |
Vacuum Calibration Tank11 | Spray Cooling Tank1 | Haul-off unit | Cutter | |||||
| Vacuum pump | Water pump |
Length(mm) | Water pump |
Length(mm) | Caterpillar quantity | Motor | Motor | Cutting type | ||
| PVC63*2 | φ16mm-φ63mm | 3kw*2 | 3kw*2 | 5000mm | / | / | 2 | 1.5kw*4 | 1.1kw*2 | Guillotine cutter |
| PVC-110 | Φ40mm-φ110mm | 4kw*1 | 4kw*2 | 6000mm | / | / | 2 | 3kw | 2.2kw*1 | Guillotine cutter |
| PVC-160 | Φ50mm-φ110mm | 5.5kw*1 | 5.5kw*2 | 6000mm | / | / | 3 | 1.1kw*3 | 1.5kw*1 | Planetary cutter |
| PVC-250 | Φ75mm-φ250mm | 5.5kw*1 | 5.5kw*2 | 6000mm | / | / | 3 | 1.1kw*3 | 2.2kw*1 | Planetary cutter |
| PVC-315 | Φ110mm-φ315mm | 5.5kw*1 | 5.5kw*2 | 6000mm | / | / | 4 | 1.1kw*4 | 2.2kw*1 | Planetary cutter |
| PVC-400 | Φ160mm-φ400mm | 5.5kw*2 | 5.5kw*2 | 6000mm | 5.5kw*1 | 6000mm | 4 | 1.1kw*3 | 2.2kw*1 | Planetary cutter |
| PVC-630 | Φ315mm-φ630mm | 7.5kw*2 | 7.5kw*2 | 6000mm | 7.5kw*1 | 6000mm | 6 | 1.1kw*6 | 3kw*1 | Planetary cutter |
50-110mm PVC (Electric Conduit) Conical Twin Screw Extruder Machine Production Flow
Material →Heating Cooling Mixer →Material Feeding →Conical Twin Screw Extruder →Extrusion Mould & calibrator → vacuum Calibration Cooling Tank → (Spray Cooling Tank) →Printer → Haul-off Unit →cutter →stacker
Equipment Features
PVC Pipe Diameter Range:φ16mm-φ800mm
The Vacuum Calibration Tank will be equipped with different quantity and power of water pump and vacuum pump for different pipe diameter
For extruder Temperature Control system,Digital PLC control or Manual Temperature Control Meter
Caterpillar Haul-off unit with two caterpillar, threecaterpillar, four caterpillar,six caterpillar,eight caterpillar design for different range of pipe diameter haul-off
Guillotine cutter&Planetary cutter can be choosed according to different diameter pipe.
Equip with special mould and other device,it can produce inner wall sprial pipe and Inner wall hollow pipe and three layer pipe.
Easy Operation,Reliable performance,High Extrusion Efficiency,Easy Maintenance
