Product Details:
|
| Product Type: | PVC Pipe | Screw No.: | Double-screw |
|---|---|---|---|
| Capacity: | 180-250kgs/Hour | Motor Power: | 37KW |
| Control: | PLC+Touch Screen | Warranty: | 1 Year |
| High Light: | 110mm Twin Screw Extruder Machine,Cable Pipe Twin Screw Extruder Machine,20mm cable twin screw extruder |
||

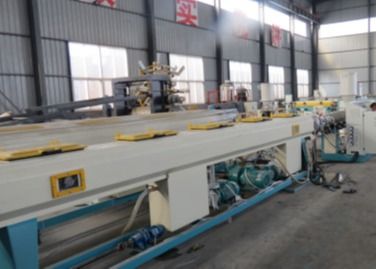

20-110mm PVC Electricity Conduit Cable Pipe Twin Screw Extruder Machine
| Diameter(mm) | 16-40dual | 20-63dual | 20-63 | 75-200 | 160-315 | 315-630 |
| Extruder mode | SJZ51/105 | SJZ65/132 | SJZ51/105 | SJZ65/132 | SJZ80/156 | SJZ92/188 |
| Extruder power (kw) | 18.5AC | 37AC | 18.5AC | 37AC | 55AC | 110DC |
| Max lineal speed (m/min) | 0.5-10 | 0.5-15 | 0.5-10 | 0.5-8 | 0.5-6 | 0.5-4 |
| Max capacity (kg/h) | 120 | 250 | 80-120 | 180-250 | 280-350 | 500-600 |
20-110mm PVC Electricity Conduit Cable Pipe Twin Screw Extruder Machine Produce process :
PVC powder + additive → mixing → spring feeding → twin screw extruder → mould and calibrator → vacuum forming machine → haul off machine → cutting machine → stacker
Main Composition
| Item | Quantity |
| 1.Conical twin screw extruder (Equipped with automatic feeding unit) | 1SET |
| 2.Die and Mold | 1SET |
| 3.Vacuum calibration unit | 1SET |
| 4.Haul-off unit | 1SET |
| 5.Cutter Unit | 1SET |
| 6.Stacker | 1SET |
| Optional auxiliary machines for your choice | |
| 1.Printer | 1SET |
| 2.Mixer | 1SET |
| 3.Crusher | 1SET |
| 4.Milling machine | 1SET |
| 5.PVC pipe belling machine | 1SET |
20-110mm PVC Electricity Conduit Cable Pipe Twin Screw Extruder Machine Product Description
1. It is mainly used to produce all kinds of UPVC pipes for agriclutural water supply and drainage, building water supply and drainage and cable laying etc.
2. Saw cutter, dust freee cutter and planetary cutter for choice.
3. Changing some parts can also produce M-PVC pipe, C-PVC pipe, inner spiral wall pipe, inner hollow wall pipe, formed core pipe.
4. Conical twin screw extruder and parallel twin screw extruder for choice.
5. Double cavity and four cavity for choice for small pipes.

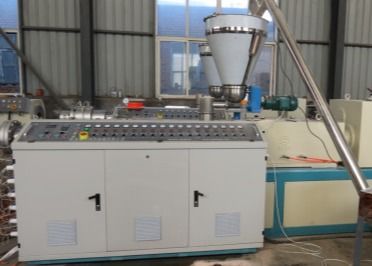

SJSZ-XXX conical twin screw extruder (Equipped with automatic feeding unit)
• World famous brand electrical component such as Siemens, Schneider, ABB etc
• Include full set of vacuum and water pump
Upper and lower caterpillar is driven separately by the frequency inverter
4. Stacker
The height is adjustable
Stainless steel 304 as touching material
Discharge driving by air cylinder
