Product Details:
|
| Product Type: | PE Pipe | Screw No.: | Single-screw |
|---|---|---|---|
| Engagement System: | Full Intermeshing | Customized: | Customized |
| Screw Channel Structure: | Deep Screw | Warranty: | 1 Year |
| High Light: | 50mm Double Wall Corrugated Pipe Machine,250mm Double Wall Corrugated Pipe Machine,50mm Corrugated Pipe Extrusion Line |
||
| Model | Pipe diameter, mm | PVC Output, kg/h | HDPE output, kg/h | Max. speed, m/min | Total power, kw |
| SFDWC-300 | 100-300 | 650 | 600 | 6.5 | 400 |
| SFDWC-500 | 150-500 | 1200 | 1000 | 6.5 | 580 |
| SFDWC-1000 | 200-1000 | 1300 | 1900 | 3.5 | 610 |
| SFDWC-1200 | 600-1200 | 1400 | 2000 | 1.5 | 800 |
| SFDWC-1500 | 1000-1500 | - | 2300 | 0.8 | 900 |

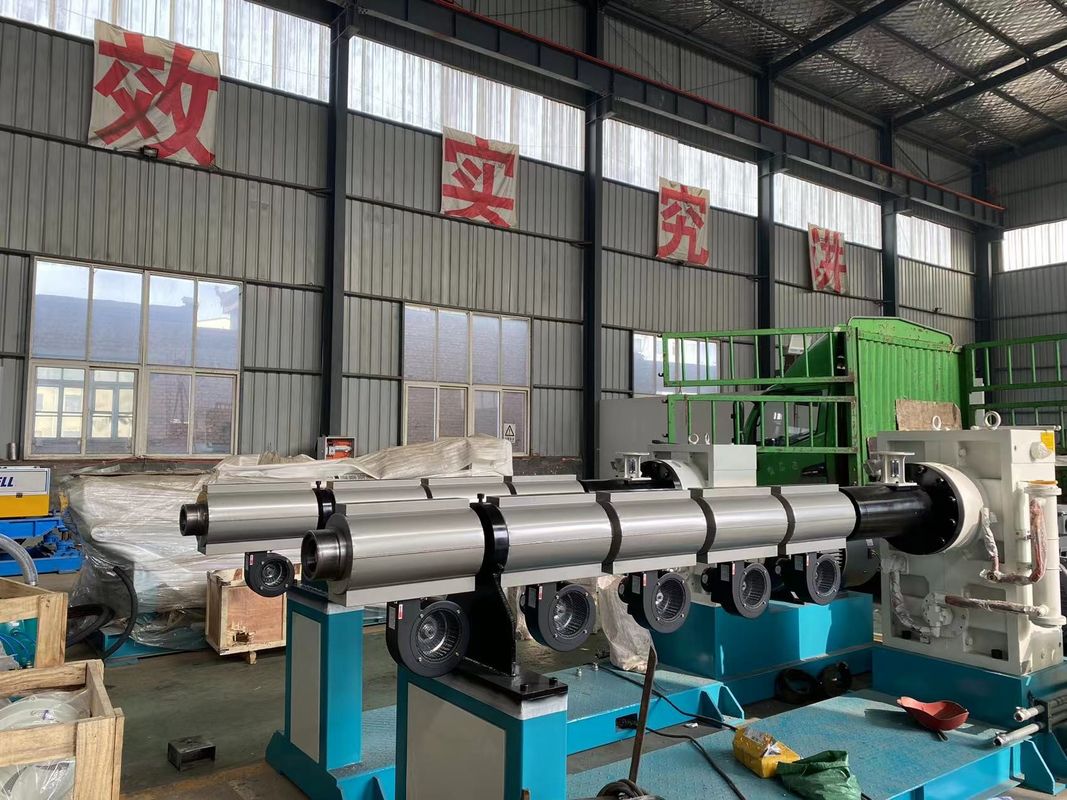

Main characters of 50-250mm HDPE Double Wall Corrugated Pipe Extrusion Line/Extrusion MachineDouble wall corrugated pipe is mainly used for water drainage system. If is fully computer controlled extrusion line. It features high and stable output capacity, and highly automatic operation. For PE and PP, you can choose high efficient single or double screw extruders. For PVC, you can choose conical twin screw extruder or parallel twin screw extruder. Forming system consists of mould and corrugator. Mould blocks can be easily changed and they have air or water cooling system. The belling process is on line. High precision cutting can be guaranteed by cutting machine. The production line can also be equipped with Siemens PLC system.
Description of 50-250mm HDPE Double Wall Corrugated Pipe Extrusion Line/Extrusion Machine
1. applicable ID: 50-250 mm
2. Bimatallic screw barrel
3. competitve prices
double wall corrugated HDPE pipe made by hdpe is mainly used for green space plants, green garden spaces. Farmland, capital construction of farmland soil improvement, soil and water conservation, drought, waterlogging, land salinization improvement and so on.
1.Heat resistance performance, from -40 ºC to 60 ºC
2.Small resistance, large flow, flame retardant, long service life upto 50 years
3.Health, reliable in performance
4.low comprehensive cost, resistant to acid and alkali corrosion
5.High strength, strong seismic performance
6.Saving energy and reducing consumption,, easy installation and transportation
Application of 50-250mm HDPE Double Wall Corrugated Pipe Extrusion Line/Extrusion Machine
It is widely used both at home and abroad as it is an easy and reliable coupling without any complex fitting, and replaces the concrete pipe and cast iron pipe. At present, PE double wall corrugated piping is being used extensively to ensure the development of environmental protection during networking of water and sewerage
