Product Details:
|
| Product Type: | PE Pipe | Screw No.: | Single-screw |
|---|---|---|---|
| Production Capacity: | 80kg/h | Model NO.: | 16-63mm |
| Automation: | Automatic | Warranty: | 1 Year |
| High Light: | PE Cable Wire Conduit Making Machine,PE Cable Wire Conduit Making Machine,PE Red Threading Hose Extrusion Line |
||

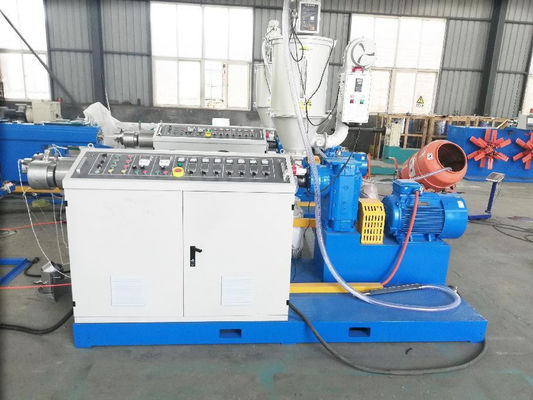

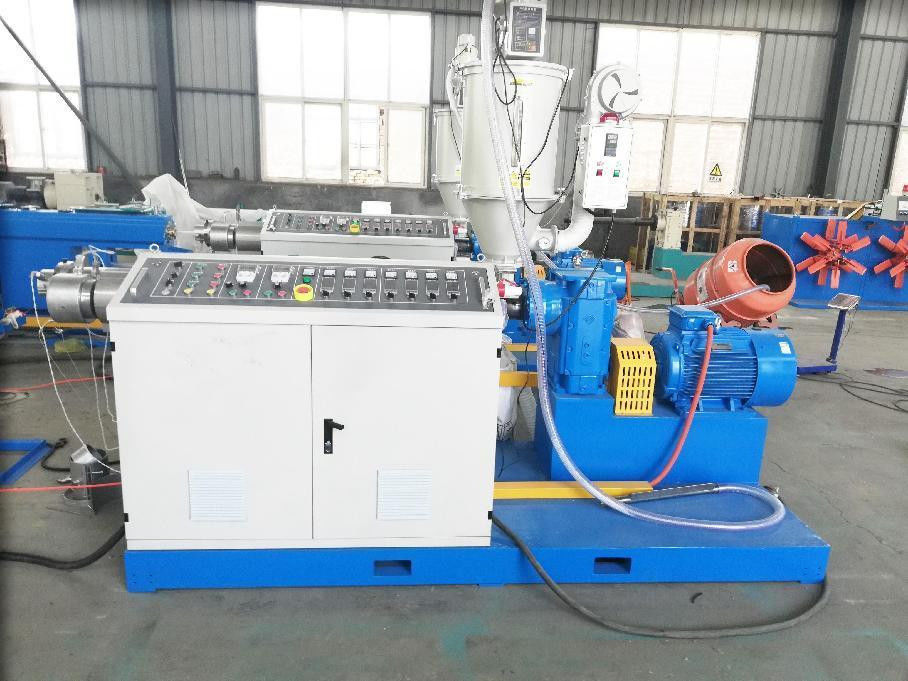

PE Cable Wire Conduit Making Machine PE Red Threading Hose Extrusion Line
Technical data:
| Pipe Range(mm) | 16-63 | 20-110 | 75-160 | 90-250 | 110-315 | 160-450 | 315-630 | 500-800 |
| Extruder | 65/30 | 65/33 | 75/30 | 75/33 | 90/33 | 90/33 | 120/33 | 150/33 |
| Motor power(KW) | 30/37 | 55/75 | 75/90 | 90/110 | 132 | 160 | 280 | 335 |
| Capacity(kg/h) | 60-130 | 100-150 | 200-300 | 220-350 | 300-400 | 350-450 | 500-600 | 700-900 |
| Max. Speed(m/min) | 25 | 15 | 10 | 6 | 3 | 1.2 | 1.0 | 0.8 |
Flow chart of PE Cable Wire Conduit Making Machine PE Red Threading Hose Extrusion Line:

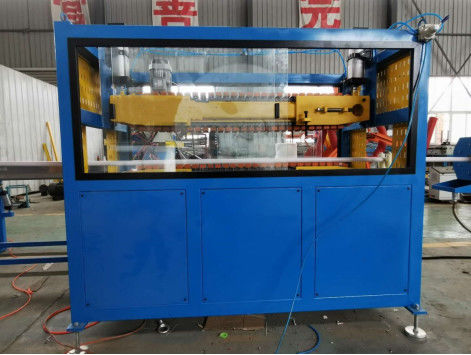

Raw material + additive → mixing → vacuum feeding machine → hopper dryer → single screw extruder→ color band extruder → mould and calibrator → vacuum calibration machine → cooling tank→ haul-off machine → cutting machine → stacker(or Winding machine)
Application Description:
This Extrusion Line can be used for different diameter PE Pipe production which have excellent stiffness and flexibility, heat resistance, aging resistance, high mechanical strength, resistance of environmental stress cracks, resistance to creep deformation, heat-linkage, and so on. So, this pipe production line is a preferred for ductwork system of gas, water pipe and agricultural irrigation pipe between city and village.
Characteristics of PE Cable Wire Conduit Making Machine PE Red Threading Hose Extrusion Line:
· Capacity: single screw extruder, suitable to process PE resin with high capacity, max 1000kg/h
