Product Details:
|
| Pipe Diameter: | 16-32mm | Screw No.: | Twin-screw |
|---|---|---|---|
| Motor Power: | 37 Kw | Automation: | Automatic |
| Condition: | NEW | Warranty: | 1 Year |
| High Light: | PVC Double Pipe Extrusion Machine,32mm Double Pipe Extrusion Machine |
||

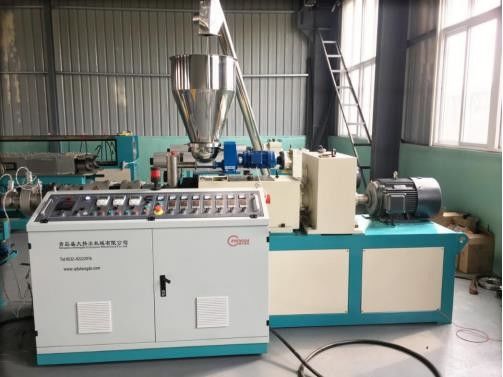

Applications of PVC Double Pipe Extrusion Machine for Electricity Conduit Pipe
PVC is currently used in a wide spectrum of piping applications, all helping to meet modern infrastructure needs.
The PVC pipe machine commonly together with the belling system, adopts the advanced European technology used for PVC solid wall pipe and double -wall corrugated pipe. Belling type are rectangular type, U type and R type. Automatic control uses the japense mistsubishi PLC program control which stable and reliable. Belling die adopts hydraulic drive, main production range is ∅32-800mm
| Type | JWGK110 | JWGK250 | JWGK450 | JWGK630 | JWGK800 |
| Dia(mm) | ∅32-110 | ∅63-250 | ∅160-450 | ∅315-630 | ∅400-800 |
| Hydraulic pressure reated(MPa) | 3MPa | 3MPa | 5MPa | 5MPa | 5MPa |
| Compressed air(MPa) | 0.4MPa | 0.4MPa | 0.4MPa | 0.4MPa | 0.4MPa |
| Power(KW) | 10 | 20 | 25 | 40 | 60 |
PVC pipe machine commonly together with the mixer
DYHL series mixer adopts PLC control, which combined machine unites mainly used batching, mixing, coloring and drying for various resins. This unit has combined the technology of hot mixing and cool jmixing, which can let the material enter cool mixing after hot mixing automatically so as to cool it and removal of residual gas to prevent blocking
Technical date
| Model | SRL100/200 | SRL200/500 | SRL300/600 | SRL500/100 | SRO800/1600 | SR: 800/2500 | SRL1000/3000 |
| Type | Vertical | Vertical | Vertical | Vertical | Vertical | Horizontal | Horizontal |
| Capacity(L) | 100/200 | 200/500 | 300/600 | 500/1000 | 800/1600 | 800/2500 | 1000/3000 |
| Effective capacity(L) | 65/130 | 150/320 | 225/380 | 220/750 | 600/1050 | 600/1500 | 700/2100 |
| Motor(KW) | 14/22/7.5 | 30/42/11 | 40/55/11 | 55/75/15 | 83/110/22 | 83/110/30 | 110/160/30 |
| Output(kg/h) | 165 | 330 | 495 | 825 | 1050 | 1320 | 1650 |
