Water Supply Drainage Plastic PVC Pipe Extrusion Line Automatic PLC Controlled

Water Supply Drainage Plastic PVC Pipe Extrusion Line Automatic PLC Controlled
Water Supply Drainage Plastic PVC Pipe Extrusion Line Automatic PLC Controlled
Water Supply Drainage Plastic PVC Pipe Extrusion Line Automatic PLC Controlled Water Supply Drainage Plastic PVC Pipe Extrusion Line Automatic PLC Controlled Water Supply Drainage Plastic PVC Pipe Extrusion Line Automatic PLC Controlled

Large Image :  Water Supply Drainage Plastic PVC Pipe Extrusion Line Automatic PLC Controlled

Product Details:
Place of Origin: China
Brand Name: Win Win
Certification: CE
Model Number: SJ80/156
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Delivery Time: 45 Workdays
Payment Terms: T/T
Supply Ability: 50 sets/mouth
Contact Now

Water Supply Drainage Plastic PVC Pipe Extrusion Line Automatic PLC Controlled

Description
Pipe Diameter: 90-250mm Screw No.: Twin-screw
Plastic Capacity: 360kg/h Motor Power: 75 KW
Heating Power: 36KW Warranty: 1 Year
High Light:

Drainage Plastic PVC Pipe Extrusion Line

,

250mm PVC Pipe Extrusion Line

,

PLC Pipe Extrusion Production Line

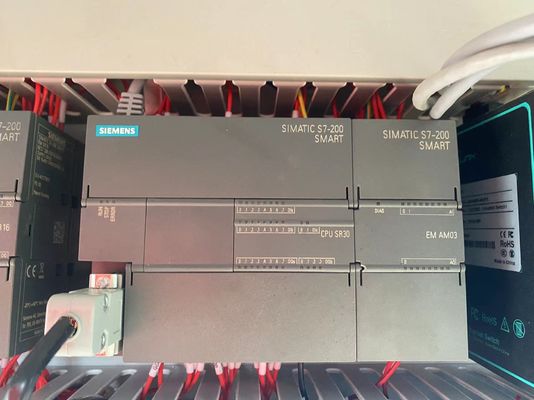

Automatic PLC Control System Water Supply Drainage Plastic PVC Pipe Extrusion Production Line

Technical parameters of PVC pipe extrusion line

Item PVC63 PVC160 PVC250 PVC315 PVC450 PVC630
Pipe dia. (mm) 16-63 75-160 125-250 180-315 200-450 355-630
Vacuum tank length(m) 6 6 6 9 9 9
Pressure of vacuum 0.03-0.80
Max hauling force(N) 10000 15000 20000 25000 30000 50000
Hauling speed(m/min/max) 10 6 4 3 2 1.4
Refilled water volume (m3/h) 5 6 7 8 9 12
Production Line
Length(m)		 20 22 30 30 36 42




Product Description of Automatic PLC Control System Water Supply Drainage Plastic PVC Pipe Extrusion Production Line​



Water supply or water drainage PVC Pipe Production Line/PVC Pipe Extrusion Line

Performance & Advantages:

PVC pipe production line is mainly used in the manufacture of the plastic PVC pipe with various tube diameters and wall thickness in the aspects such as the agricultural and constructional plumbing, cable laying etc.

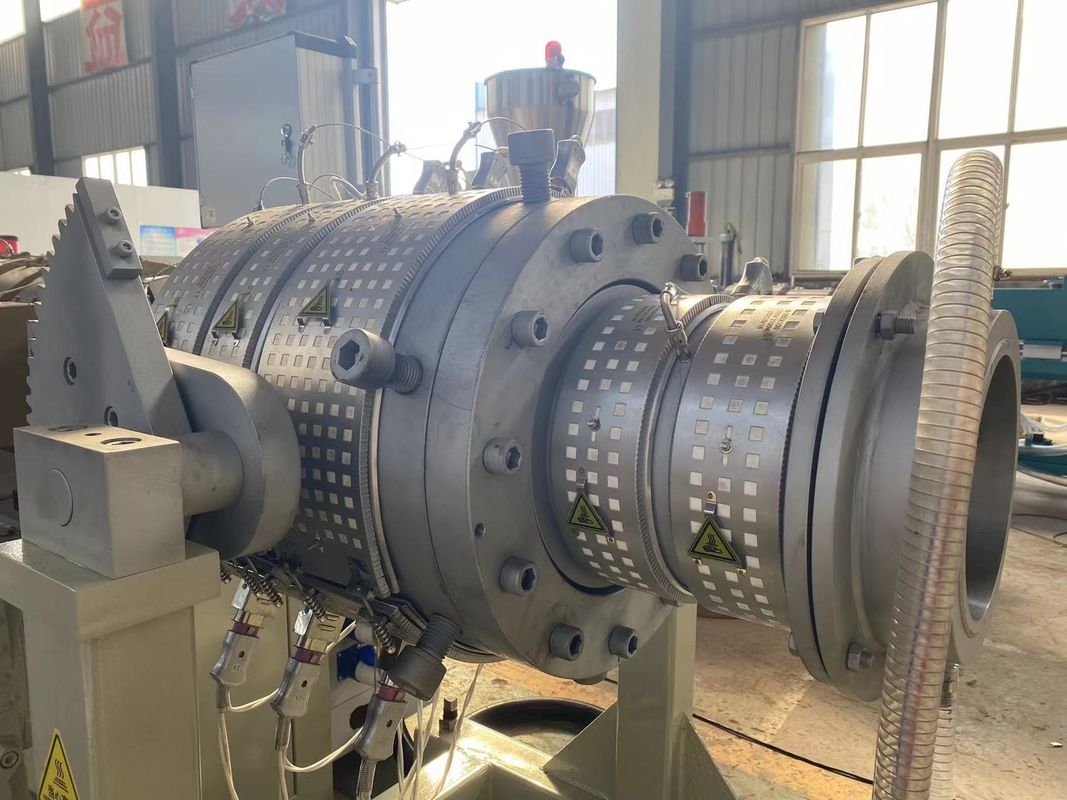

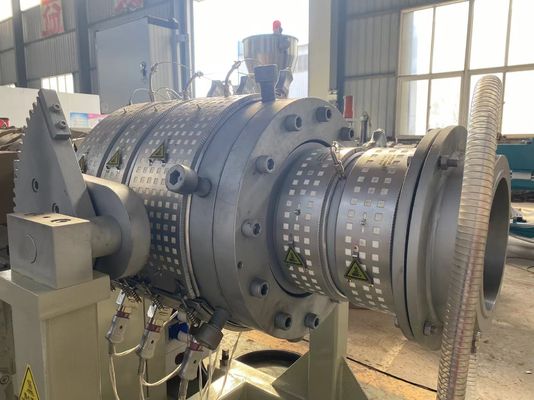

This set is composed of the conical twin-screw extruder, vacuum calibration tank, printer, haul-off, cutter, stacker, etc.
The extruder and extractor adopt the imported AC frenquncey control device.
The vacuum pump and the main motor adopt the famous brand.
The haul-off has many different kinds of Model, such as two-claw, three-claw, four-claw, five-claw, six-claw.
About the cutter, you can choose the saw blade cutting type or the planet cutting type.
We also can offer some auxiliary machine about the pipe extrusion line.
With its wide range including various technical solu-tions, Chenxing's production does not only include stan-dard machines, but also offers complete pipes extru-sion lines, tailor-made according to the customers' requirements, still assuring high performances and competitive prices.
PVC pipe extrusion lines can produce pipes in PVC materials, with diameters starting from 16mm up to 630 mm.



Water Supply Drainage Plastic PVC Pipe Extrusion Line Automatic PLC Controlled 0



Water Supply Drainage Plastic PVC Pipe Extrusion Line Automatic PLC Controlled 1



Li Bing

Tel:86-158 4530 5907 (Wechat/skype/whatsapp)

E-mail: libing@qdwinwin.cn

Web1: www.qdwinwin.cn

Web2: www.corrugatedpipeextrusionline.com

Address: Jiaoxi Industrial Park, Jiaozhou, Qingdao, Shandong, China
