Plastic PVC Pipe Extruder Machine Automatic Water Supply Drainage PVC Pipe Extrusion Line
Our PVC pipe production line adopts advanced technology from Australia and Taiwan. We can customize various PVC pipe production lines according to the pipe standards of various countries in the world. Our pipe diameter range is: 12mm-630mm, from large water supply pipes to small cables We can customize the tube. Our PVC pipe production lines are spread all over the world and have a large customer base. We will provide all customers with on-site installation, commissioning, training, etc.
Technical parameters of PVC pipe extrusion line
| Item |
PVC63 |
PVC160 |
PVC250 |
PVC315 |
PVC450 |
PVC630 |
| Pipe dia. (mm) |
16-63 |
75-160 |
125-250 |
180-315 |
200-450 |
355-630 |
| Vacuum tank length(m) |
6 |
6 |
6 |
9 |
9 |
9 |
| Pressure of vacuum |
0.03-0.80
|
| Max hauling force(N) |
10000 |
15000 |
20000 |
25000 |
30000 |
50000 |
| Hauling speed(m/min/max) |
10 |
6 |
4 |
3 |
2 |
1.4 |
| Refilled water volume (m3/h) |
5 |
6 |
7 |
8 |
9 |
12 |
| Production Line Length(m) |
20 |
22 |
30 |
30 |
36 |
42 |
Product Description of Plastic PVC Pipe Extruder Machine Automatic Water Supply Drainage PVC Pipe Extrusion Line
Water supply or water drainage PVC Pipe Production Line/PVC Pipe Extrusion Line
Application
1).Water supply, drainage pipelines in building;
2).Rainwater drainage pipelines in building;
3).Electrical wiring pipe in building;
4).Air conditioning condensate water systems.
Performance & Advantages:
PVC pipe production line is mainly used in the manufacture of the plastic PVC pipe with various tube diameters and wall thickness in the aspects such as the agricultural and constructional plumbing, cable laying etc.
This set is composed of the conical twin-screw extruder, vacuum calibration tank, printer, haul-off, cutter, stacker, etc.
The extruder and extractor adopt the imported AC frenquncey control device.
The vacuum pump and the main motor adopt the famous brand.
The haul-off has many different kinds of Model, such as two-claw, three-claw, four-claw, five-claw, six-claw.
About the cutter, you can choose the saw blade cutting type or the planet cutting type.
We also can offer some auxiliary machine about the pipe extrusion line.
With its wide range including various technical solu-tions, Chenxing's production does not only include stan-dard machines, but also offers complete pipes extru-sion lines, tailor-made according to the customers' requirements, still assuring high performances and competitive prices.

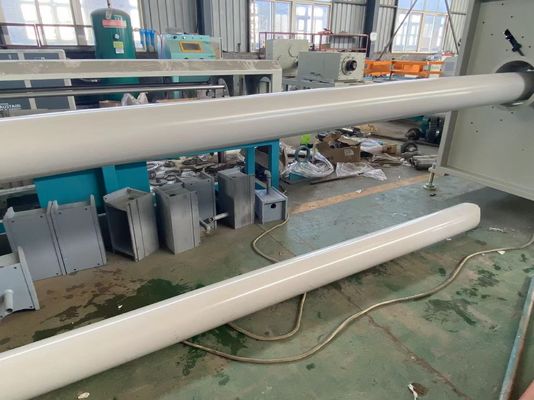

PVC pipe extrusion lines can produce pipes in PVC materials, with diameters starting from 16mm up to 630 mm.
Consist of Plastic PVC Pipe Extruder Machine Automatic Water Supply Drainage PVC Pipe Extrusion Line
1.World famous brand electrical component such as Siemens, ABB etc .
2.High torque gearbox with adopts NSK/SKF bearing;
3.Bimetallic screw and barrel;
4.Intelligent PLC controlling system with human-friendly interface
1.Material of mold body is Steel 45# ,harden treated and polished.
2.Material of inner mould parts is 40Cr.
3.The material of calibration bushing is Stannum bronze.
4.The diameter can be customized.

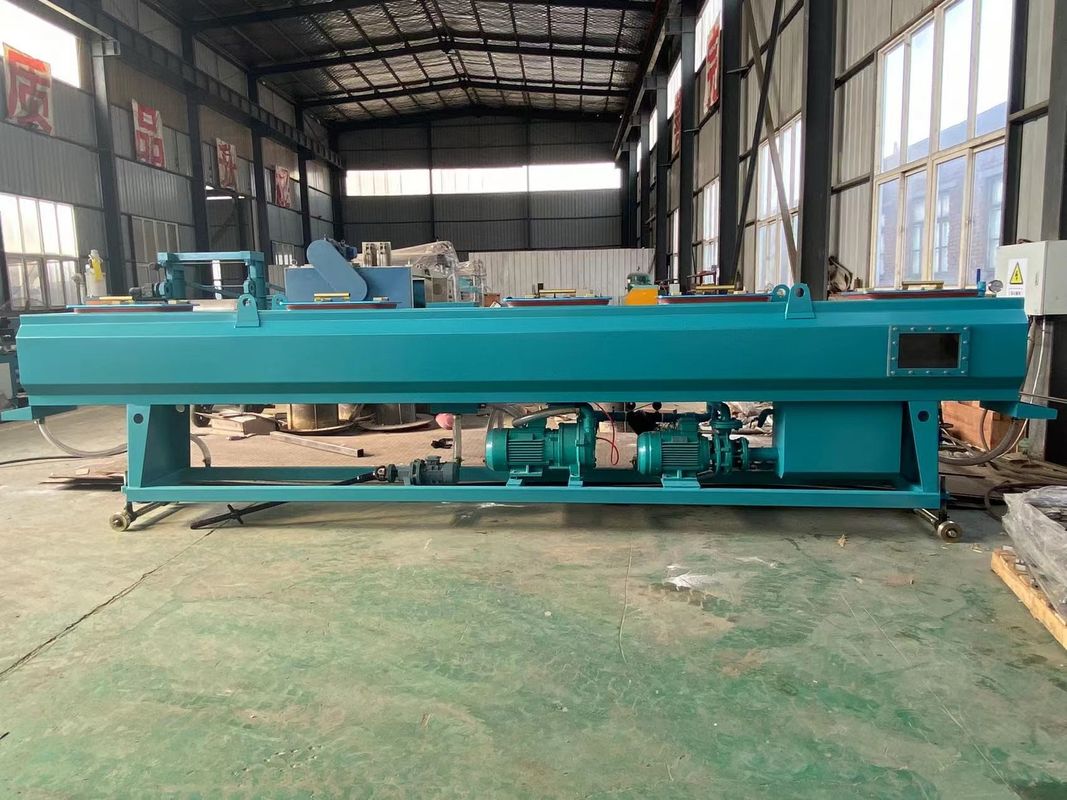

- Vaccum calibration water tank
Function:
1.Calibrating the pipe outer diameter and cooling pipe.
2.The material of water tank is stainless steel 304.
1.Function :haul off PE pipe stably and synchronal with extruder speed.
2.Clamping mode is pneumatically.
3.speed adjusting mode is frequency conversion.
Feature:
1.PLC control, automatic cutting and counting,easy for production operation.
2. adopt famous Airtac air cylinder, steady performance, reduce maintain cost.
Company Profile
Qingdao Win Win Machinery Co., Ltd. is a new type of high-tech enterprise specializing in R & D and production of extrusion machine. The company's main products -- plastic pipe extrusion complete production line.
Our production technology of single / double wall corrugated pipe machine, carbon spiral pipe machine and solid wall pipe machine has always been in the leading position in the industry.
If you need plastic extrusion equipment, please feel free to contact me!
