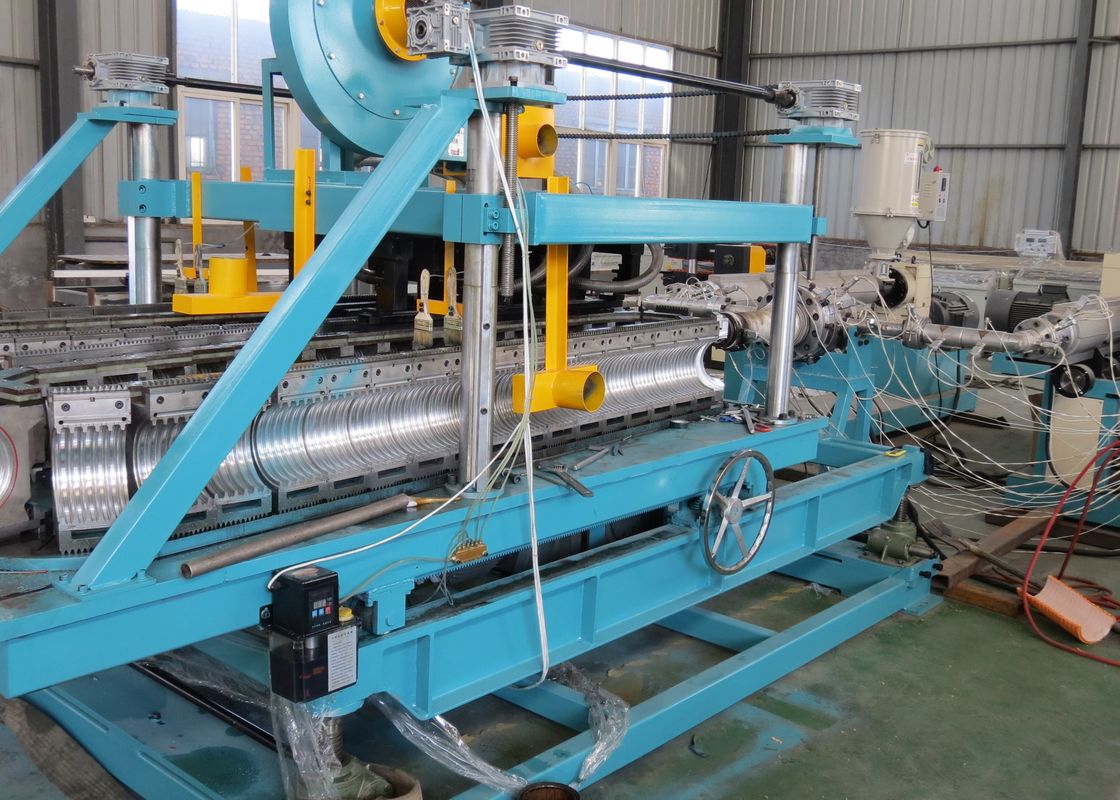

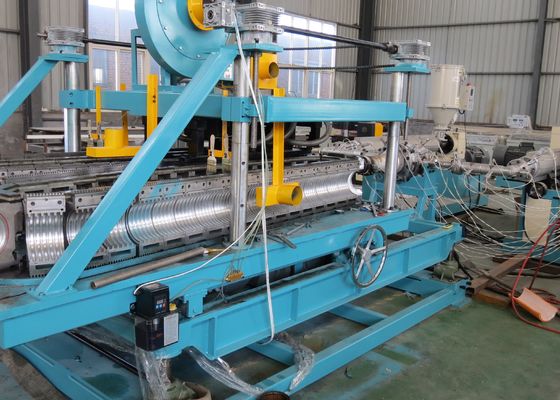

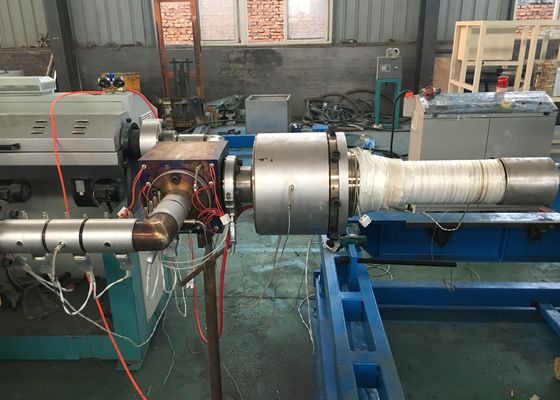

HDPE 800mm Corrugated Pipe Extrusion Line

Plastic PVC PP PE Single Wall Corrugated Pipe Extrusion Line Plastic Pipe Extrusion Line

Quick Details

• Process type: Extruding machine
• Name: HDPE Plasctic Corrugated Pipe Extruder Line PVC Pipe Manufacturing Machine
• Usage: Water drain
• Inverter: ABB
• Motor: SIEMENS
• Contactor: SIEMENS
• Temperature control appearance: ORMON
• Cooling way: Recycling water
• Heating way: Electrical heating

HDPE 800mm Corrugated Pipe Extrusion Line are made through extrusion, in-line with the direction of extrusion, die, sizing or calibrating device or tank, water cooling tank, conveyor, and cutter, if needed, and take off equipment at the end of the line. The line could include a marking device or a testing device.

HDPE 800mm Corrugated Pipe Extrusion Line consists of conical twin-screw extruder, vacuum forming equipment, Haul-off machine, cutting machine, stacker and other components, with good stability, and produced high, easy to operate, reliable. The HDPE 800mm Corrugated Pipe Extrusion Line can produce water supply and drainage pipe, the material is U-PVC, C-PVC, large diameter PVC. Configure the secondary shunt mold, with a low temperature.

Φ20-800 series HDPE 800mm Corrugated Pipe Extrusion Line is mainly used in manufacturing the pipe for agricultural and constructional plumbing, cable laying etc. This line is composed by conical twin-screw extruder, mould, vacuum calibration tank, haul-off, cutter and staker etc. The extruder and haul-off adopt imported AC frequency control device, vacuum pump and haul-off motors adopt high-quality brand.

The haul-off methods are two-claw, three-claw, four-claw, six-claw, eight-claw etc. you may choose saw cutting type or planetary cutting type. It is additionally attached with the length counter and intensifying device. The equipment is with the reliable performance and high production efficiency.

Description:

Close type corrugator and vacuum forming.
Forming module is moving in a tunnel.
Forming tunnel is clod by water.
Forming module is made of hard alloy steel and anti-corrosion and abrasion.
No any connection between forming module, then reduce time to change.
Provide dingle sand double wall corrugation pipe head die.

1. Plastic PVC PP PE Single Wall Corrugated Pipe Extrusion Line Plastic Pipe Extrusion Line also called PE PVC double wall corrugated pipe machine, PE PVC double wall corrugated pipe equipment, PE PVC double wall corrugated pipe extruder, which is configured single screw extruder and grooved feed barrel, which ensures extruding in high efficiency.

2.Corrugated forming system with strong cooling ability ensures constant production with
high speed.

3.The mould surface is nitrided and polished. A wall thickness-regulating device is equipped

in die lip to be suitable for production of different raw materials and ring resistance materials.

4.Advanced on line socketing function lowers the investment and increases the efficiency.

5.Plastic PVC PP PE Single Wall Corrugated Pipe Extrusion Line Plastic Pipe Extrusion Line adopts SIEMENS PLC computer controlled system with touched screen

Applications:

ThisPlastic PVC PP PE Single Wall Corrugated Pipe Extrusion Line Plastic Pipe Extrusion Line is used to produce double wall corrugated pipe with PVC or PE as materials. This kind of pipe has unique structure and many advantages such as: light mass, impact resistance, corrosion endurance, cold and heat resistance. So, this kind pipe is widely used in the fields of communication, paving of wire and cable, agricultural irrigation, water supply and drainage in cities, geographic deep irrigation and feed water in architecture, etc.
