1200kgh 800mm Double Wall Corrugated Pipe Machine

Plastic HDPE/PVC Double Wall Corrugated Pipe Extrusion Line Plastic Water Pipe Extrusion Line

Quick Details

• Process type: Extruding machine
• Name: HDPE Plasctic Corrugated Pipe Extruder Line PVC Pipe Manufacturing Machine
• Usage: Water drain
• Inverter: ABB
• Motor: SIEMENS
• Contactor: SIEMENS
• Temperature control appearance: ORMON
• Cooling way: Recycling water
• Heating way: Electrical heating

1200kgh 800mm Double Wall Corrugated Pipe Machines are made through extrusion, in-line with the direction of extrusion, die, sizing or calibrating device or tank, water cooling tank, conveyor, and cutter, if needed, and take off equipment at the end of the line. The line could include a marking device or a testing device.

1200kgh 800mm Double Wall Corrugated Pipe Machine consists of conical twin-screw extruder, vacuum forming equipment, Haul-off machine, cutting machine, stacker and other components, with good stability, and produced high, easy to operate, reliable. The can produce water supply and drainage pipe, the material is U-PVC, C-PVC, large diameter PVC. Configure the secondary shunt mold, with a low temperature.

Φ20-800 series 1200kgh 800mm Double Wall Corrugated Pipe Machine is mainly used in manufacturing the pipe for agricultural and constructional plumbing, cable laying etc. This line is composed by conical twin-screw extruder, mould, vacuum calibration tank, haul-off, cutter and staker etc. The extruder and haul-off adopt imported AC frequency control device, vacuum pump and haul-off motors adopt high-quality brand.

The haul-off methods are two-claw, three-claw, four-claw, six-claw, eight-claw etc. you may choose saw cutting type or planetary cutting type. It is additionally attached with the length counter and intensifying device. The equipment is with the reliable performance and high production efficiency.

Applications:

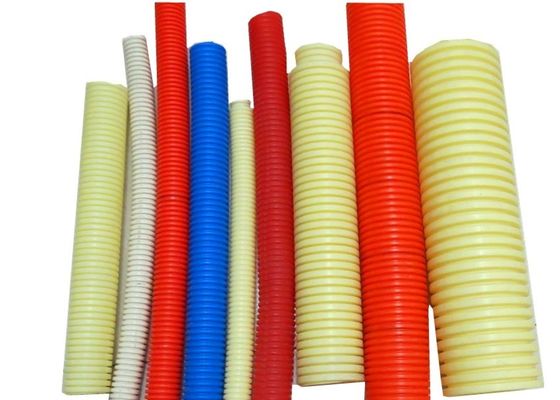

This Plastic HDPE/PVC Double Wall Corrugated Pipe Extrusion Line Plastic Water Pipe Extrusion Line is used to produce double wall corrugated pipe with PVC or PE as materials. This kind of pipe has unique structure and many advantages such as: light mass, impact resistance, corrosion endurance, cold and heat resistance. So, this kind pipe is widely used in the fields of communication, paving of wire and cable, agricultural irrigation, water supply and drainage in cities, geographic deep irrigation and feed water in architecture, etc.

Competitive Advantage:

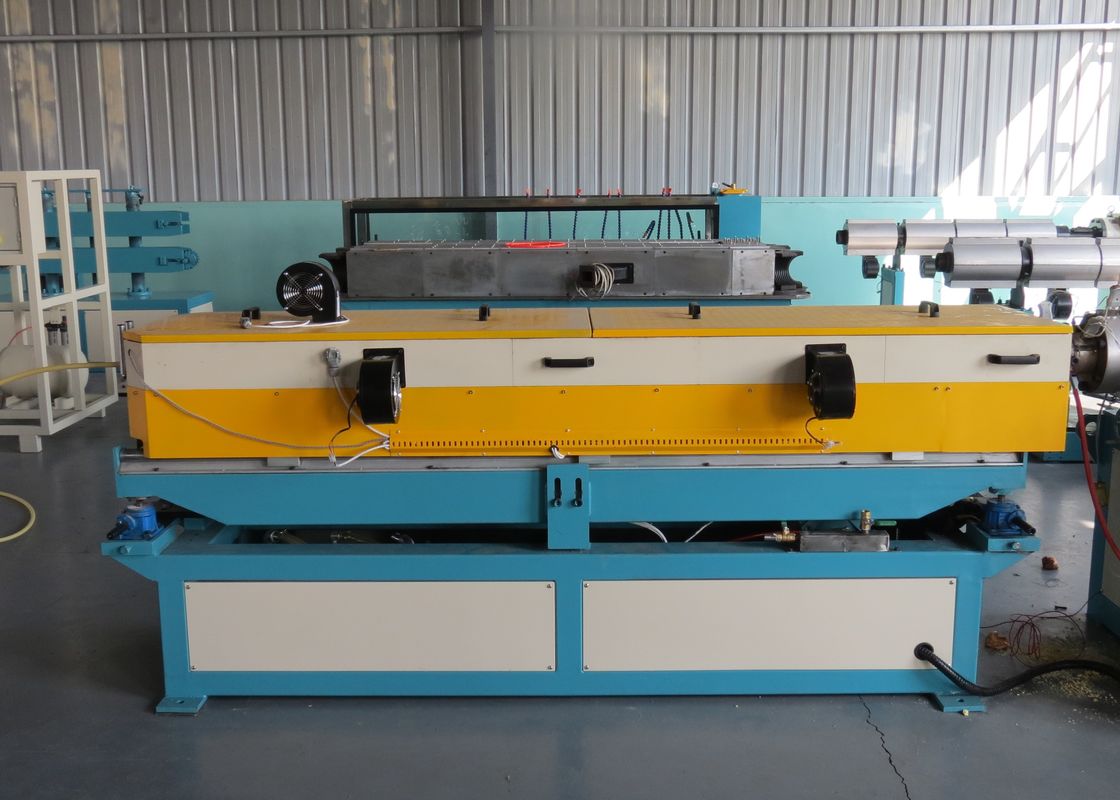

Plastic HDPE/PVC Double Wall Corrugated Pipe Extrusion Line Plastic Water Pipe Extrusion Line has a variaty applicaion in the world at present. In order to meet the demand of plastic market, Longchangjie company designed and developed this UPVC Double Wall Corrugated Pipe Extrusion Line by absorbing advanced technology from foreign countries plastic machinery industry. The complete line is adopted human-machine interface control system. It makes high automatical degree, stable production and great output become true. We adopt two efficiency single screw extruders with high extrusion capacity in this line. There are special designed co-extrusion moulds made by alloy steel for making huge diameter UPVC corrugated pipe. Double spiral design with excelent quality alloy steel of the moulds can meet all of the production requirements. Corrugator is adopted horizontal structure with shuttle type transmission, SEIMENS control system, airtight water cooling system and vacuumizing forming, which assured very quick cooling and high output in production process. Professionally designed and fine made auxiliary equipments make the complete line running steadily.
