Product Details:
|
| Product Type: | PVC Pipe | Pipe Diameter: | 20-63mm |
|---|---|---|---|
| Relay / Switch: | Schneider | Temperature Control: | Omron |
| Voltage: | According To Requirement | Inverter: | ABB |
| High Light: | 17mm HDPE Pipe Extrusion Line,17mm PVC Cable Extrusion Line,PVC HDPE Pipe Extrusion Line |
||

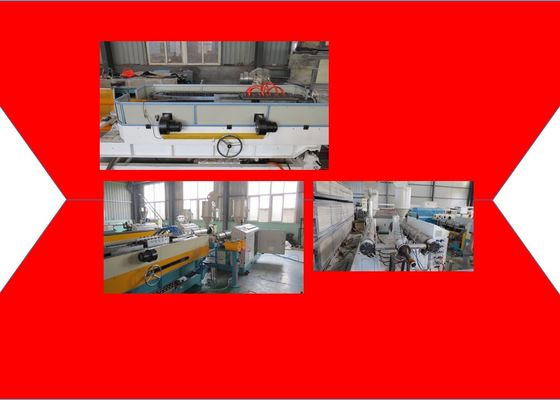

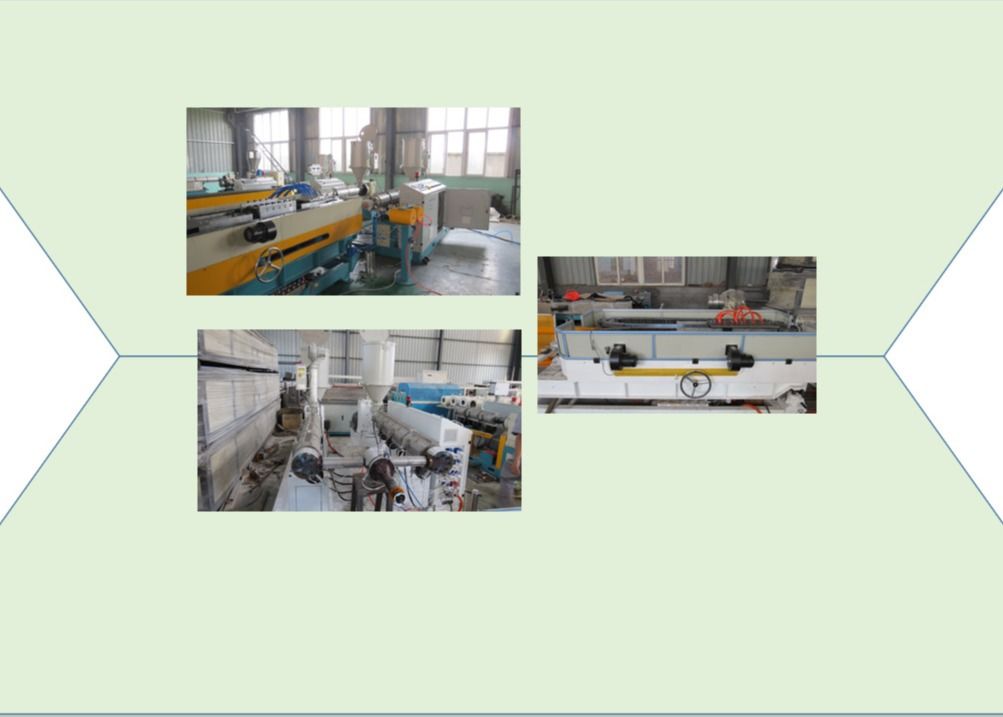

Plastic Production Line Extruder PE/PP/HDPE Pipe Extrusion Line/ Cable Extrusion Line
Description
This Plastic Production Line Extruder PE/PP/HDPE Pipe Extrusion Line/ Cable Extrusion Line can be used for extruding thermo-plastics like soft or hard pvc and pe.Coordinated with the appropriate auxiliary machine (including the head of former)it can produce many kinds of plastic products such as film ,pipe,board,belt as well as granule.
This Plastic Production Line Extruder PE/PP/HDPE Pipe Extrusion Line/ Cable Extrusion Line is advanced in design ,high in output,good in plasticization and low in energy consumption.The involute gear drving is characterized by low noise,stable working,big bearing capacity and long service.
Detailed description of each items:
1. Conveyor: convey PP PE film or flakes into compactor.
2. PE film Agglomerator /Compactor: crushing and compress film, and feed compressed film into extruder forced, to make the production capacity high and stable.
3. Extruding system: plasticizing material and exhausting gas.
4. High speed Net exchanging system and Die-head: filter material impurity, to make production more stable.
5. water ring pelletizing machine: cutting pellets in water.
6. Water tank: cooling pellets.
7. Dewater machine: make pellets dry.
8. Vibration sieve: remove bad pellet and keep good pellet.
9. Air Blower: convey good pellets into silo.
10. Storage silo: keep pellet.
This Plastic Production Line Extruder PE/PP/HDPE Pipe Extrusion Line/ Cable Extrusion Line is one stage plastic regenerative pelletizer, which is suitable for many kinds plastic waste materials recycling and making pellet, such as PP, HDPE, LDPE, LLDPE Film and clean woven/nonwoven bag materials, etc. The film can be pressed in compressor and then be pelletized.
Process flow:
Conveying feeding→ Metal detector →Film Agglomerator /Compactor →Degassing single screw extruder →Hydraulic filer exchanger→ Mould head →water ring cutting →Dewatering machine→ Air dryer Blowing system→ Storage hoper→ Finished product packing.
Features:
1. Allow free assembling of the screw component, based on raw material type.
2. Using the suitable die head for palletizing, such as water ring cutting, under-water cutting and hot face cutting.
3. High efficient force feeder ensures stable high capacity material feeding, low power consumption.
4. Main screw has vacuum exhaustion.
5. Water ring granulator machine, attached with dryer. 6. Single screw extruder, with specially designed screw, barrel, venting system, ensure the good quality of the final products.
7. Pelletizing style: standard cutting with extrusion mould. Even cutting ensures with good shape.
|
Model |
Diameter(mm) |
Extruder Model |
Speed(m/min) |
Capacity(kg/h) |
Power(kw) |
Dimension(m) |
| SW-63 | 16-63 | SW-50/105 | 1-12 | 120 | 65 |
30*1.8*2 |
