Product Details:
|
| Main Electrics: | Siemens / Schneider | Temperature Control: | Omron |
|---|---|---|---|
| Condition: | New | Inverter: | ABB |
| Automation: | Automatic | Voltage: | According To Requirement |
| High Light: | ABB Inverter Pipe Extrusion Line,150kg/H Corrugated Pipe Extrusion Line,PE Corrugated Pipe Making Machine |
||

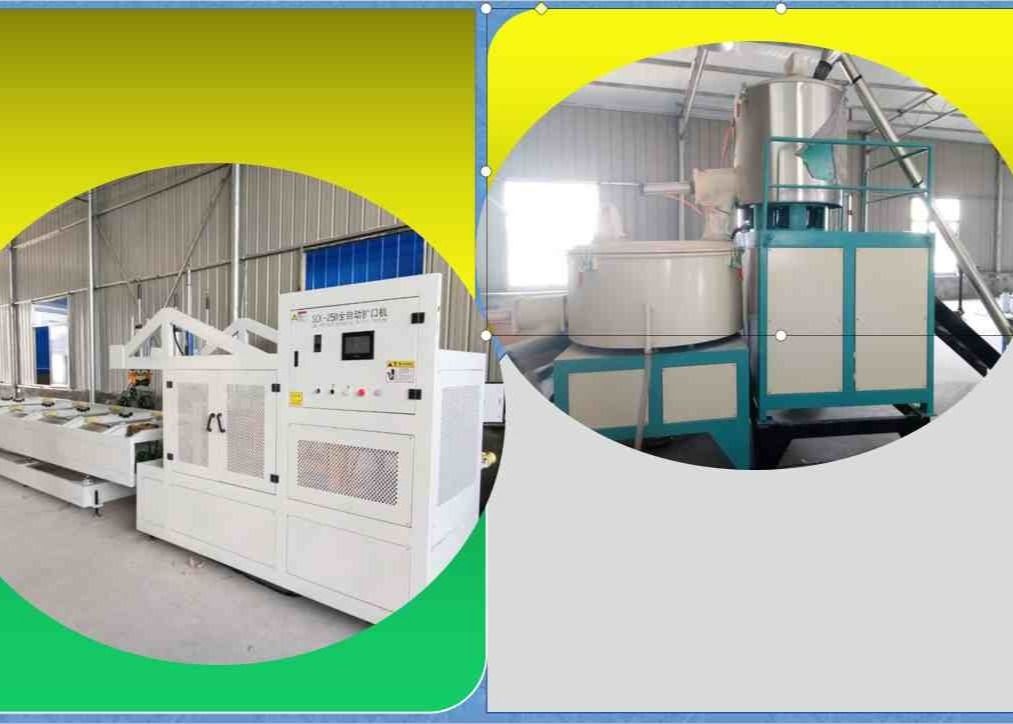

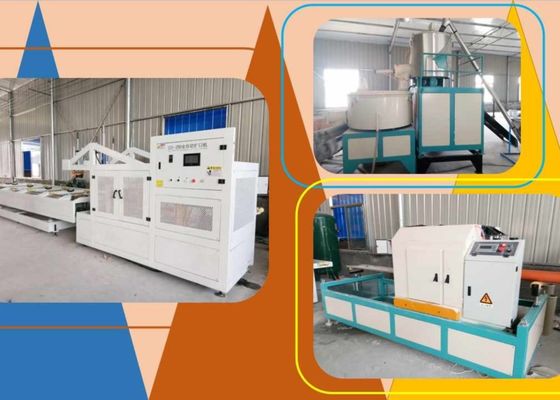

PE/PVC Single Wall Corrugated Pipe/Tube Extrusion Line/Model SW-65/30 Extruder Production Line
150kg/H PE Single Wall Corrugated Pipe Extrusion Line :
• Single screw extruders especially used for polyolefine material possess effective plasticizing effect and high extrusion speed.
• The special detachment type mixing screw and the standard designed die with spiral structure & reasonable channel are applicable to produce with smooth inside and outside face.
• All kind of polyolefine material, multi-layers spiral strengthening pipe can be co-extruded for various uses, 80% of recycle material can be used in production;
• Optimum spiral copper sizing sleeve, its entrance carrying pre-cooling and powerful vacuum device to suit for high speed extruding pipe.
• Specific design for spray cooling trough.
• Cooling water trough is made of stainless steel
• High efficient cooling comes from peculiar spraying nozzle and high efficiency water pump.
• Three-dimensional regulation, longitudinal move by motor.
• Advanced co-extrusion technology and low cost to use recovery material.
Features of PP PE single wall pipe extrusion line
. Close type corrugator and vacuum for forming
. Forming module is moving in a tunnel
. Forming tunnel is clod by water
. Forming module is made of hard alloy steel and anti-corrosion and abrasion.
. No any connection between forming module, the reduce time to change.
| Model | Pipe Diameter Range(mm) | Extruder | Production Speed (m/min) | Max Production(kg/h) | Power(kw) |
Dimensions (m) |
| SJPGZ-40 | Ø20-Ø40 | SJSZ-51/105 | 1-12 | 150 | 65 | 32x1.8x2 |
| SJPGZ-250 | Ø50-Ø250 | SJSZ-65/132 | 0.5-5 | 300 | 100 | 36x2x2 |
| SJPGZ-315 | Ø110-Ø315 | SJSZ-80/156 | 1-3.6 | 420 | 145 | 38x2x2 |
| SJPGZ-400 | Ø200-Ø400 | SJSZ-80/156 | 0.2-2 | 420 | 210 | 42x2.5x2.5 |
| SJPGZ-630 | Ø315-Ø630 | SJSZ-92/188 | 0.08-0.8 | 750 | 245 | 48x2.5x2.5 |
According to many years of plastic machinery development and design experience, in the introduction of foreign advanced technology and digestion and absorption, on the basis of self-developed 150kg/H PE Single Wall Corrugated Pipe Extrusion Line. Has the unique structure, the design is novel, the equipment entire line layout is reasonable, the control performance is strong and so on.
150kg/H PE Single Wall Corrugated Pipe Extrusion Line using PLC control system, man-machine dialogue interface, simple operation, stand-alone adjustment, the full board linkage, automatic fault alarm, production and reliable.
