Product Details:
|
| Output Capacity: | 80-100 Kg/ Hr | Installed Power: | 35kw |
|---|---|---|---|
| Contactor: | Schneider | Actual Consumption Power: | About 25kw |
| Production Speed: | 8-15m/Min | Motor: | Siemens |
| High Light: | 100Kg/H Pipe Extrusion Line,35kw Pipe Extrusion Line,PE Corrugated Pipe Making Machine |
||
PE PVC Single Wall Pipe Extrusion Line/ Pipe Production Line for Hose Corrugated Tube
PE PVC Single Wall Pipe Extrusion Line/ Pipe Production Line for Hose Corrugated Tube is made of super quality steel. The module connection is set in the closed machine cavity. The inner and outer side of corrugated pipe is even and smooth.
The forced cooling system can enhance the quality and capacity of product. Corrugated pipes are widely used for wire sleeves, auto, home and medical appliances.
| Model | Pipe Diameter Range(mm) | Extruder | Production Speed (m/min) | Max Production(kg/h) | Power(kw) |
Dimensions (m) |
| SJPGZ-40 | Ø20-Ø40 | SJSZ-51/105 | 1-12 | 150 | 65 | 32x1.8x2 |
| SJPGZ-250 | Ø50-Ø250 | SJSZ-65/132 | 0.5-5 | 300 | 100 | 36x2x2 |
| SJPGZ-315 | Ø110-Ø315 | SJSZ-80/156 | 1-3.6 | 420 | 145 | 38x2x2 |
| SJPGZ-400 | Ø200-Ø400 | SJSZ-80/156 | 0.2-2 | 420 | 210 | 42x2.5x2.5 |
| SJPGZ-630 | Ø315-Ø630 | SJSZ-92/188 | 0.08-0.8 | 750 | 245 | 48x2.5x2.5 |
Raw material + master batches→mixing→vacuum feeding →material dryness →single screw extruder→extrusion mould→corrugation forming machine→meter measurer→double winder→finished product inspecting &packing
Our high-speed production line can continuously produce PE, PP, EVA, PVC and other single wall corrugated pipes. The plastic single wall corrugated pipes produced by our production line are characterized by smooth inner and outer walls, consistent joints, high temperature resistance, corrosion resistance, wear resistance, high strength, good flexibility, etc. It is widely used in the fields of automobile harness, electrical wiring for home decoration, electrical wiring, machine tool wiring, protective sleeve for lighting wiring, air conditioning, washing machine, wash basin drain pipe, medical equipment ventilator, etc.
The PE PVC Single Wall Pipe Extrusion Line/ Pipe Production Line for Hose Corrugated Tube carefully developed by our company has high degree of automation and stable performance.

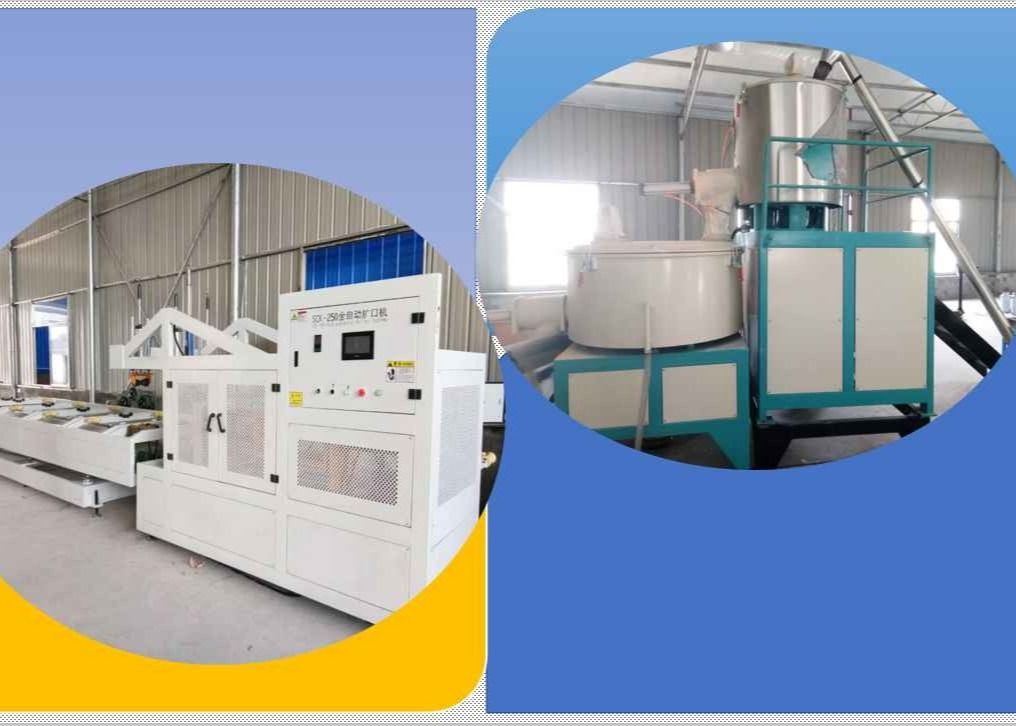

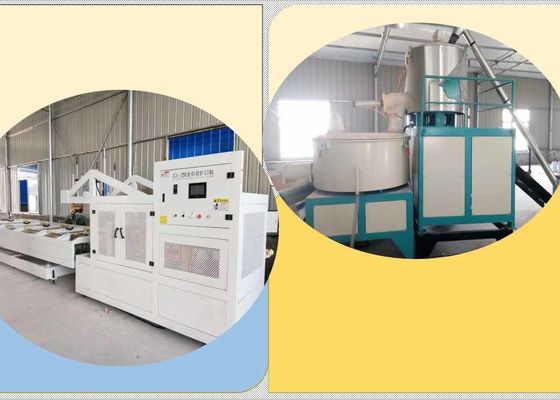

The molding machine adopts horizontal full closed structure, which is easy to operate and elegant in appearance. Through the gear transmission module, the formwork is cooled by water, the products are cooled by air, and the molding track is long, so that the corrugated pipe produced has fast molding speed, uniform corrugated shape, consistent seams and smooth inner and outer walls Smooth, stable quality, and can maintain high-speed operation.
After forming, the bellows joint is very perfect, no staggered joint can ensure the strength of the pipe, not easy to damage, beautiful appearance, and the machine can run for a long time without stopping. Under the control of water cooling and air cooling, the line speed can reach 25-30 meters per minute, which is three times of the production speed of the honest production line. The bellows forming machine can be equipped with 90 pairs of modules.
The forming die is run by gear and rail, and the replacement of the die is convenient for 15 minutes. It can be designed on a pair of molds to accommodate two sizes of apertures. It is easy to operate, does not need to change the grinding tools frequently, reduces the time of changing the molds, improves the working efficiency, and saves the cost of the molds. The unique threading technology is easy to operate, which makes the bellows threading more convenient.
| Pipe Diameter Range(mm) | Main Machine Model | Extruder L/D | Production Capacity(kg/h) | Extruder Motor Power(KW) | Forming Machine Motor Power(KW) | Quantity of Mold Pairs |
| 4.5-9 | SJ-30 | 30:1 | 10 | 4 | 1.1 | 42 |
