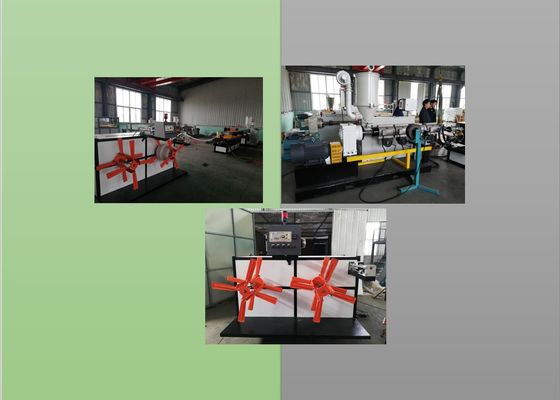

Water Drain PPR PE 800mm Single Wall Corrugated Pipe Extrusion Line

Water Drain PPR PE 800mm Single Wall Corrugated Pipe Extrusion Line

Quick Details

• Process type: Extruding machine
• Name: Single Wall Corrugated Pipe Machine/ PPR PE Single Wall Corrugated Pipe Line
• Usage: Water drain
• Inverter: ABB
• Motor: SIEMENS
• Contactor: SIEMENS
• Temperature control appearance: ORMON
• Cooling way: Recycling water
• Heating way: Electrical heating

Features and Advantages of Water Drain PPR PE 800mm Single Wall Corrugated Pipe Extrusion Line:

1. Single screw extruder, L/D=38:1,force feeding with 100% Plasticifation.
2. Reasonable design, absorbing safety production technology.
3. Diameter range from 16mm to 2500mm.
4. spiral groove on feeding part, increases 30% of productivity.
5. Chipless cutter without soundness.
6. Synchronous design from Extruder,Haul off & Cutter.

Application:

The Single Wall Corrugated Pipe Machine/ PPR PE Single Wall Corrugated Pipe Line are widely used in fields of auto wire, electric thread-passing pipes, circuit of machine tool, protective pipes of lamps and lanterns wire, tubes of air conditioner and washing machine, etc.

Working process:

Feeder--Dryer--Extruder--Mould--Automatic winder--Corrugated pipe forming machine

Extruder: It has high speed high efficiency screw, hard gear surface, FUJI invertor. This structure assures the material evenly heating, good plasticization and the extruding speed and efficiency.

Corrugator: Close structure. Mold blocks Through the gear transmission, Mold plate has water flowing to get cooling efficiency. The pipe cooling type is wind. This structure ensures High speed production and cooling. It can produce inner and outer layer smooth and corrugation uniformity pipe one time matching the corresponding molds.

Mold block: The design of structure is reasonable, wind cooling and replacement of the module is convenient and reliable

Winging machine: Moment motor, single/double station winder.

Applications:
This Single Wall Corrugated Pipe Machine/ PPR PE Single Wall Corrugated Pipe Line is used to produce double wall corrugated pipe with PVC or PE as materials. This kind of pipe has unique structure and many advantages such as: light mass, impact resistance, corrosion endurance, cold and heat resistance. So, this kind pipe is widely used in the fields of communication, paving of wire and cable, agricultural irrigation, water supply and drainage in cities, geographic deep irrigation and feed water in architecture, etc.
