Product Details:
|
| Output Capacity: | 80-100 Kg/ Hr | Installed Power: | 35kw |
|---|---|---|---|
| Contactor: | Schneider | Actual Consumption Power: | About 25kw |
| Production Speed: | 8-15m/Min | Motor: | Siemens |
| High Light: | HDPE LDPE Pipe Extrusion Machine,100Kg/Hr Pipe Extrusion Machine,15m/Min Pipe Extrusion Machine |
||

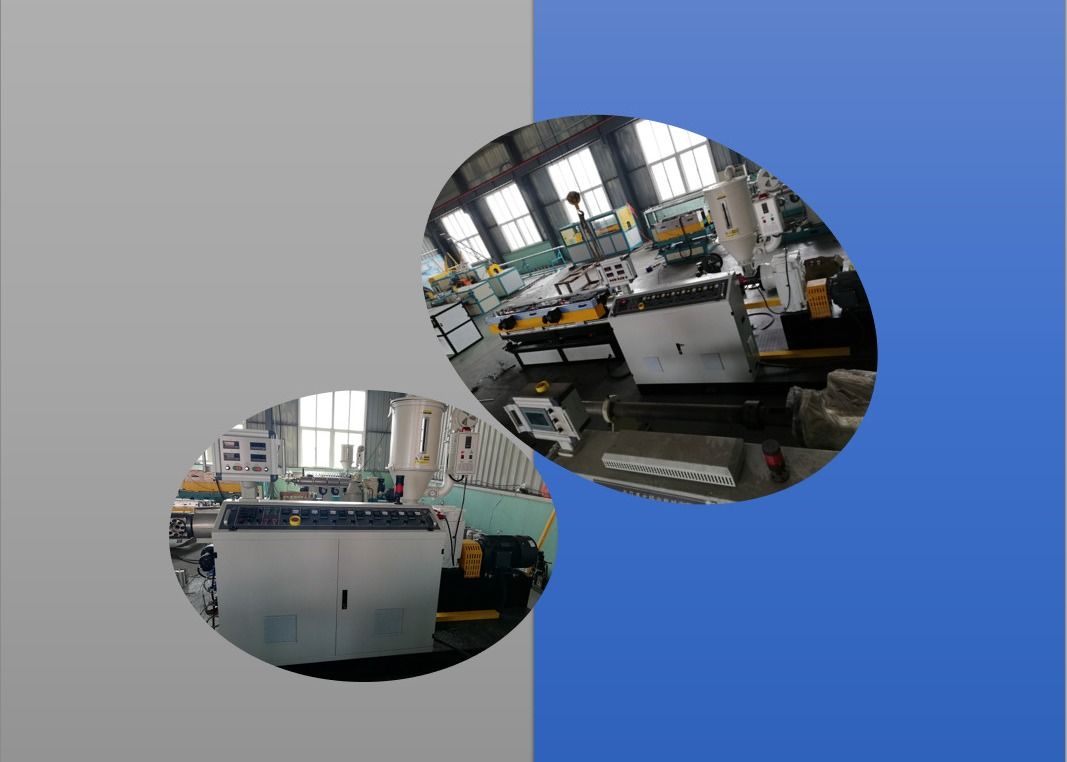

SW-65/33 HDPE Double Wall Corrugated Pipe Line/ PPR PE LDPE Pipe Extrusion Machine
SW-65/33 HDPE Double Wall Corrugated Pipe Line/ PPR PE LDPE Pipe Extrusion Machine for Hose Corrugated Tube is made of super quality steel. The module connection is set in the closed machine cavity. The inner and outer side of corrugated pipe is even and smooth.
The forced cooling system can enhance the quality and capacity of product. Corrugated pipes are widely used for wire sleeves, auto, home and medical appliances.
| Model | Pipe Diameter Range(mm) | Extruder | Production Speed (m/min) | Max Production(kg/h) | Power(kw) |
Dimensions (m) |
| SJPGZ-40 | Ø20-Ø40 | SJSZ-51/105 | 1-12 | 150 | 65 | 32x1.8x2 |
| SJPGZ-250 | Ø50-Ø250 | SJSZ-65/132 | 0.5-5 | 300 | 100 | 36x2x2 |
| SJPGZ-315 | Ø110-Ø315 | SJSZ-80/156 | 1-3.6 | 420 | 145 | 38x2x2 |
| SJPGZ-400 | Ø200-Ø400 | SJSZ-80/156 | 0.2-2 | 420 | 210 | 42x2.5x2.5 |
| SJPGZ-630 | Ø315-Ø630 | SJSZ-92/188 | 0.08-0.8 | 750 | 245 | 48x2.5x2.5 |
High efficient Single Screw Extruder, Screw and barrel, German technology
Screw: 38CrMoAlA, nitride and polishing treatment
Barrel: 38CrMoALA,nitrogen treatment, coercion water cooling in feeding parts
Gear box: High torque, low noise, specific gear box.
Control System Hardware from Siemens Professional software system of XINRONG Menu with English version Human-friendly interface make the operation easily and conveniently. 10.4’’liquid crystal displayer New generation programmable computer control system Modularization of temperature control Operation panel with pellicle switch Equipped with measuring system of melt temperature and pressure. Set, modify, inspect and memory the extruder rotating speed, melt pressure, melt temperature, each section temperature and forming speed.
Advantage of SW-65/33 HDPE Double Wall Corrugated Pipe Line/ PPR PE LDPE Pipe Extrusion Machine
Very good resistance to corrosion
Available in colors on demand
Chemically inert and recyclable
Environmentally safe and good impact strength
Good abrasion resistance and life minimum 50 years
Advantage due to DW Corrugation
Raw material saving & excellent ring stiffness
Smooth inner wall hence minimum friction loss
Moderate flexibility takes care of soil settlement if any
Takes heavy earth loads
Application of SW-65/33 HDPE Double Wall Corrugated Pipe Line/ PPR PE LDPE Pipe Extrusion Machine
Sewerage and drainage
Surface drainage
Culverts and highways drainage
Rain water harvesting
Storm water drainagwe

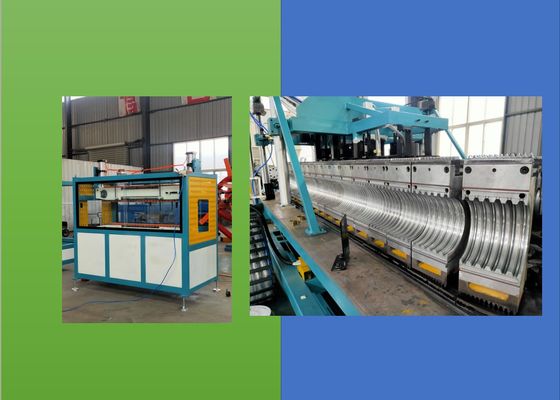

The forming die is run by gear and rail, and the replacement of the die is convenient for 15 minutes. It can be designed on a pair of molds to accommodate two sizes of apertures. It is easy to operate, does not need to change the grinding tools frequently, reduces the time of changing the molds, improves the working efficiency, and saves the cost of the molds. The unique threading technology is easy to operate, which makes the bellows threading more convenient.
| Pipe Diameter Range(mm) | Main Machine Model | Extruder L/D | Production Capacity(kg/h) | Extruder Motor Power(KW) | Forming Machine Motor Power(KW) | Quantity of Mold Pairs |
| 4.5-9 | SJ-30 | 30:1 | 10 | 4 | 1.1 | 42 |
