Single Screw PVC 800mm Corrugated Pipe Extrusion Line

PVC Single Wall Corrugated Pipe Production Line/ PVC Pipe Production Machine

Brief Introduction of PVC Single Wall Corrugated Pipe Production Line/ PVC Pipe Production Machine :
This plastic corrugated pipe line equips with high quality machines in the whole line.
With good equipments, the plastic corrugated pipe line can produce pipes stable and fast. Also all these machines share a long service life which reduces buyer's cost.
Molding corrugation pipe with smooth inside and outside surface, and even ripple at one time by corresponding die.
PVC Single Wall Corrugated Pipe Production Line/ PVC Pipe Production Machine Application:
Sewer pipe, sewer pipe for hand sink, extension pipe, dust-collector pipe, water heater pipe, hookah pipe, winding tube, insulating pipe, inflator pipe, electric conduit pipe, etc.
PVC Single Wall Corrugated Pipe Production Line/ PVC Pipe Production Machine Main Features:
The optimum spiral structure-feeding throat highly improves the output of extruder;
Accurate temperature control system ensures materials melting performance;
Unique screw design achieves better plasticizing and high quality products;
Precisely designed gearbox with a high torsion guarantees stable running;
"H" shape frame to decrease vibrating of extruder;
Advanced PLC operation system realizes synchronization and automation;
Adopt automatic water or wind cooling mode;
Low energy consumption, excellent performance, and easy maintenance.


Working process:
Feeder--Dryer--Extruder--Mould--Automatic winder--Corrugated pipe forming machine

Extruder: It has high speed high efficiency screw, hard gear surface, invertor. This structure assures the material evenly heating, good plasticization and the extruding speed and efficiency.

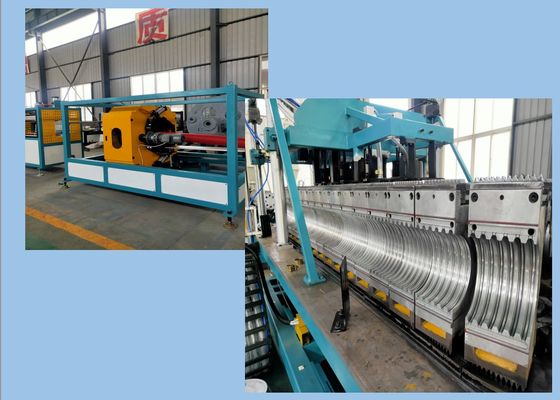

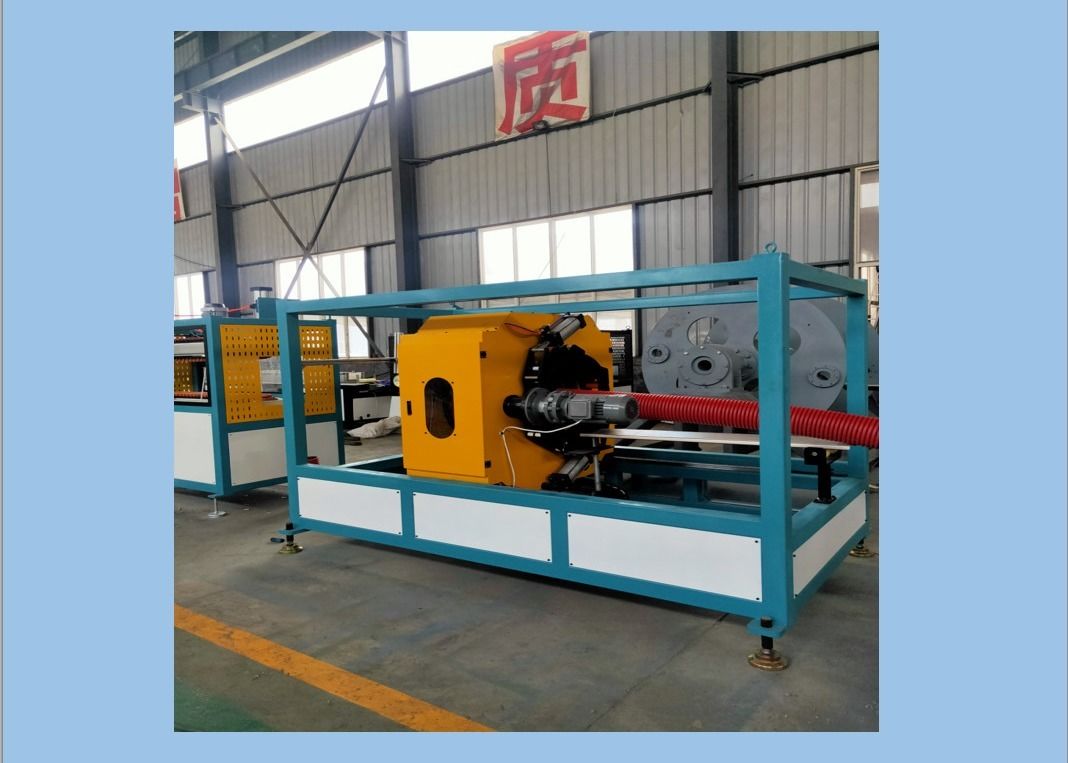

Corrugator: Close structure. Mold blocks Through the gear transmission, Mold plate has water flowing to get cooling efficiency. The pipe cooling type is wind. This structure ensures High speed production and cooling. It can produce inner and outer layer smooth and corrugation uniformity pipe one time matching the corresponding molds.

Mold block: The design of structure is reasonable, wind cooling and replacement of the module is convenient and reliable

Winging machine: Moment motor, single/double station winder.
