800mm PE Deep Screw Corrugated Pipe Extrusion Machine

Plastic PVC/PE/PP/PPR/Electricity Conduit Tube/ Corrugated Pipe Extrusion

Pipe diameter range :

16 ~ 63 mm / 0.75 inch to 2.5 inch

75 ~ 160 mm / 3 inch to 6.3 inch

110 ~ 250 mm / 4.3 inch to 10 inch

200 ~ 400 mm / 8 inch to 16 inch

450 ~ 630 mm / 18 inch to 25 inch

630 ~ 800 mm / 25 inch to 32 inch

( If the above pipe diameter range can not match your requirements , please send your required ones to us. We will provide best solutions for your project. )

1. Process flow:
Dryness loader→Single screw extruder→Die→Forming moulds→Water tank(optional)→Haul off and cutter(optional)→Double working-station winder

2. Plastic PVC/PE/PP/PPR/Electricity Conduit Tube/ Corrugated Pipe Extrusion Production Description:

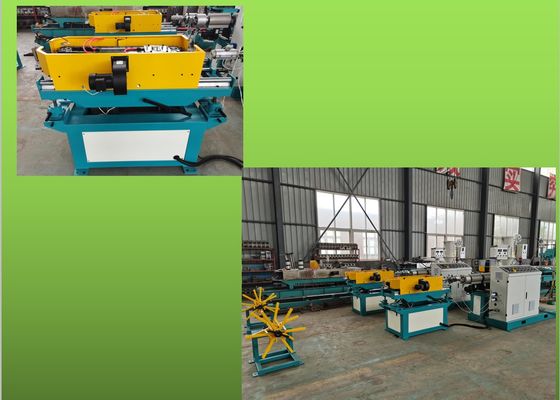

It consists of Extruder, Mold Blocks, Corrugated Forming Machine, Cooling Equipment, Counting Machine and Auto winding system. It can continuously produce many kinds of diameter single wall corrugated pipe in high speed.

Material-1: PP, Temperature range: -20°C -110°C , the product is anti-oil, anti-acid, anti-alkali. The black color pipe is ultraviolet resistant.

Material-2: PE, Temperature range: -40°C -80°C , the product is anti-oil, anti-acid, anti-alkali. The black color pipe isultraviolet resistant.

Plastic PVC/PE/PP/PPR/Electricity Conduit Tube/ Corrugated Pipe Extrusion shall be used to produce small diameter single wall corrugation pipe in PVC.

Molding corrugation pipe with smooth inside and outside surface, and even ripple at one time by corresponding die; Used as wire and cable passing pipe ,washing machine drain pipe, dust collector pipe and ventiduct; Small size corrugation pipe of 4-6.7 are used in car.

Plastic PVC/PE/PP/PPR/Electricity Conduit Tube/ Corrugated Pipe Extrusion Application:
This kind of pipe owns the features of high temperature resistance , anti-erosion , antiabrasion and high strength . The pipe can be ued ass stuffing tube for electrical appliance, stuffing tube for automobile, engineering works, lamps and lanterns, automatic instruments and meters, etc. which has a great demand in present-day market.

Parts of Plastic PVC/PE/PP/PPR/Electricity Conduit Tube/ Corrugated Pipe Extrusion:
a. single/double screw extruder
b. high speed forming machine
c. mold (single/double cavity)
d. double working position winder
e. steel wire feeding device
f. PLC system
