Product Details:
|
| Material: | PPR HDPE PP PVC | Screw No.: | Multi-screw |
|---|---|---|---|
| Control: | PLC | Automation: | Automatic |
| Computerized: | Computerized | Optional Extruder: | Single Screw Extruder Or Conical Screw Extruder |
| PLC HMI: | Siemens | ||
| High Light: | PPR Conduit Pipe Extrusion Machine,18m/Min HDPE Pipe Extrusion Machine,160mm Pipe Extrusion Machine |
||

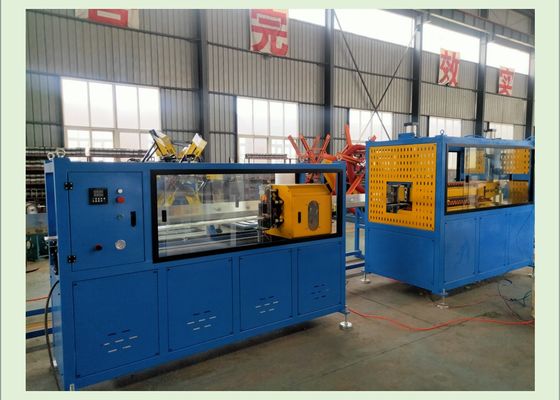

PE Glass Fiber PPR Conduit Single Layer Electrical Tube/Pipe Making Machine
|
Item |
Name |
|
1 |
Vacuum Loading+ Dryer |
|
2 |
SW 65/33 Single Screw Extruder |
|
3 |
SW 50/30 Single Screw Extruder |
|
4 |
SW 25/25 Single Screw Extruder |
|
5 |
Mould |
|
6 |
Vacuum Tank |
|
7 |
Water Cooling Tank |
|
8 |
Haul Off |
|
9 |
Chipless cutter |
|
10 |
Auto Loader |
|
11 |
Control System |
The advantages of PE Glass Fiber PPR Conduit Single Layer Electrical Tube/Pipe Making Machine
1.high speed 18m/min
2.competitive price
3.full automatic
4.dust free cut
5. Dia. range:20-160mm
6. Linear velocity(Max):4-10m/min
Upto your different capacity requirement, we can design different size of extruder, Small diameter can be 2 or 4 pipe comes at one time
PE Glass Fiber PPR Conduit Single Layer Electrical Tube/Pipe Making Machine, is mainly used to produce PPR Glass fiber reinforced pipes with various diameters pipe etc.We can produce one layer, two layers, three layers and even more layers
Features of PE Glass Fiber PPR Conduit Single Layer Electrical Tube/Pipe Making Machine:
1. Size: 16mm to 1800mm
2, Thickness: 2 3-162mm
3. Pressure Rating: 0.6mpa, 0. 8mpa, 1. 0mpa, 1.25mpa, 1.6,2.0mpa
4. Color: black, black with blue stripes, other colors available on request
5. Connection: socket fusion joint, butt fusion joint, electro fusion joint, flanged joint
|
Energy Saving Ratio |
Up to 35% |
|
Properties |
Fully Automatic, stable production, large output |
|
Speed Range |
Normal speed and high speed optional |
|
Application |
Air Ventilation system |
|
Screw &Barrel Material |
38CrMoAlA |
|
Hardness |
HV940-1100 |
|
Raw Material |
HDPE PP PVC PE PPR |
Vacuum forming machine(by this equipment, the pipe can be the correct type as you need, there is one vacuum pipe and two water pump in this machine)
Container material: stainless steel 3mm
Effective length: 6m
Vacuum pump: 5.5KW×1
Water pump: 3KW×2
Cooling way: by water
Mobile electromotor: 0.75KW×1
Pipe dia. Arrangement: φ63-φ155mm
