Full Intermeshing HDPE 800mm Irrigation Pipe Extrusion Line

Plastic PVC| PE| PP| HDPE Water Gas Supply Irrigation Single Tube Extrusion Line

Plastic PVC| PE| PP| HDPE Water Gas Supply Irrigation Single Tube Extrusion Line Flow chart

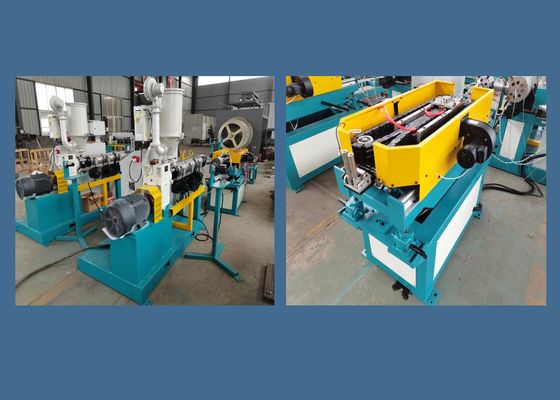

Single wall corrugated pipe extrusion line

Raw material + additive → mixing → vacuum feeding machine → hopper dryer → single screw extruder for PE/PP material/double screw extruder for PVC material→ pipe extrusion die + corrugated pipe forming die→ forming machine→ haul off machine → winder/coil machine

Double wall corrugated pipe

Raw material + additive → mixing → vacuum feeding machine → hopper dryer → single screw extruder for PE/PP material/double screw extruder for PVC material→ pipe extrusion die + corrugated pipe forming die→ forming machine→ haul off machine → cutting machine

Plastic PVC| PE| PP| HDPE Water Gas Supply Irrigation Single Tube Extrusion Line Main Features of corrugated pipe machine

1. Double-layer spiral co-extrusion die head.

2. Complete inner cooling system.

3. Unique separated dies and moulds for each specification.

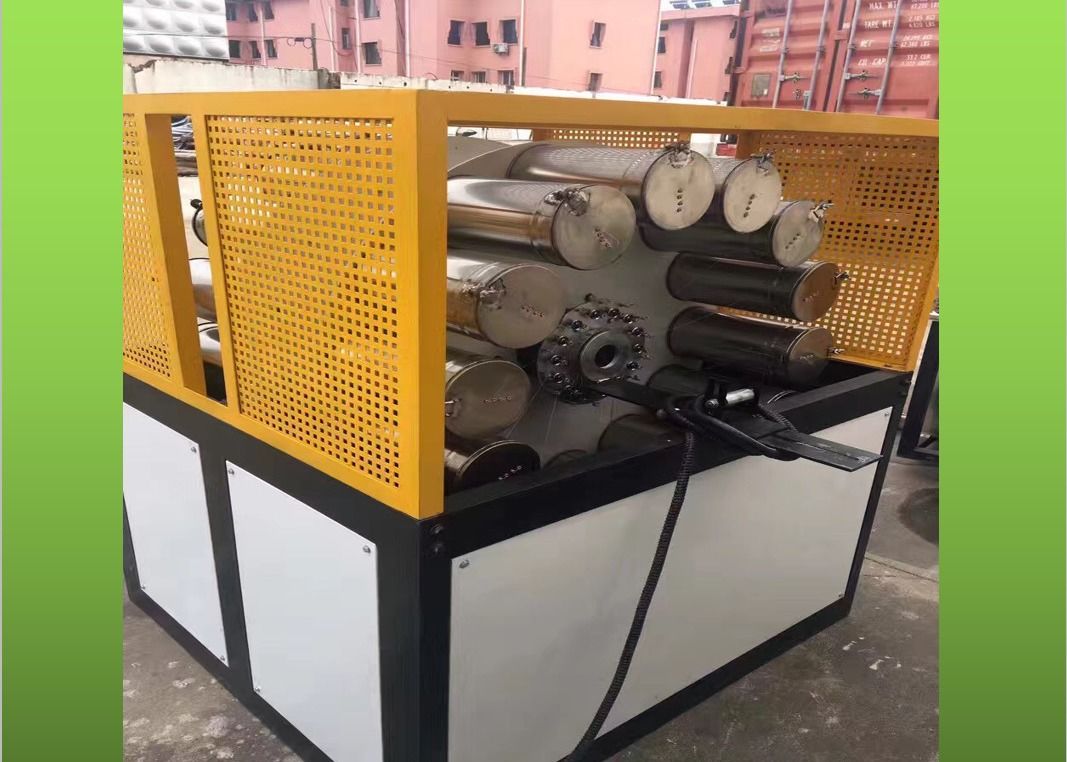

4. Horizontal structure corrugator, easy change production size (forming dies)

5. Vacuum forming, making pipe with higher quality

6. can be on-line belling

7. High speed design, high output with lower power consumption

Plastic PVC| PE| PP| HDPE Water Gas Supply Irrigation Single Tube Extrusion Line Application

Single wall corrugated pipes

Single wall corrugated pipes are widely used in many fields such as auto wire, electric thread-passing pipes, circuit of machine tool, protective pipes of lamps and lanterns wire, as well as air conditioner and washing machine tubes, etc.

Double wall corrugated pipe

It is mainly used for large water delivery, water supply, drainage, sewage discharge, exhaust, subway ventilation, mine ventilation, farmland irrigation, etc. under the pressure of less than 0.6MPa. such as:

1 Municipal Engineering: used as drainage pipe.
2. construction works: used as building rainwater pipes, underground drainage pipes, sewage pipes, ventilation pipes.
3. railway, highway communication equipment: used as communication cable, optical cable protection tube.
4. industry: widely used in chemical, hospital, environmental protection industries such as sewage pipes.
5. agricultural garden project: used in farmland, fruit tea garden, and forest belt drain.
6.Road Engineering: used as the seepage and drain pipe of railway and expressway.
7. Mine: used as mine ventilation, air supply, drain pipe.
8. double walled bellows: can do saline, highway seepage, drainage pipe.
9. golf course, football field project: used as a golf course, football field of infiltration, drainage pipe.
