Product Details:
|
| Driven Type: | Electric | Screw: | Single-Screw |
|---|---|---|---|
| Low-Voltage Electrical Parts: | Schneider | Inverter: | ABB |
| Extruding Capacity: | 270kg/H | Suitable Material: | PVC/PE |
| The Screw Diameter: | 150mm | Running Speed: | >40m/Min |
| High Light: | PVC Sheath Cable Extruder,40m/Min Wire Cable Making Machine,270kg/H Wire Cable Making Machine |
||

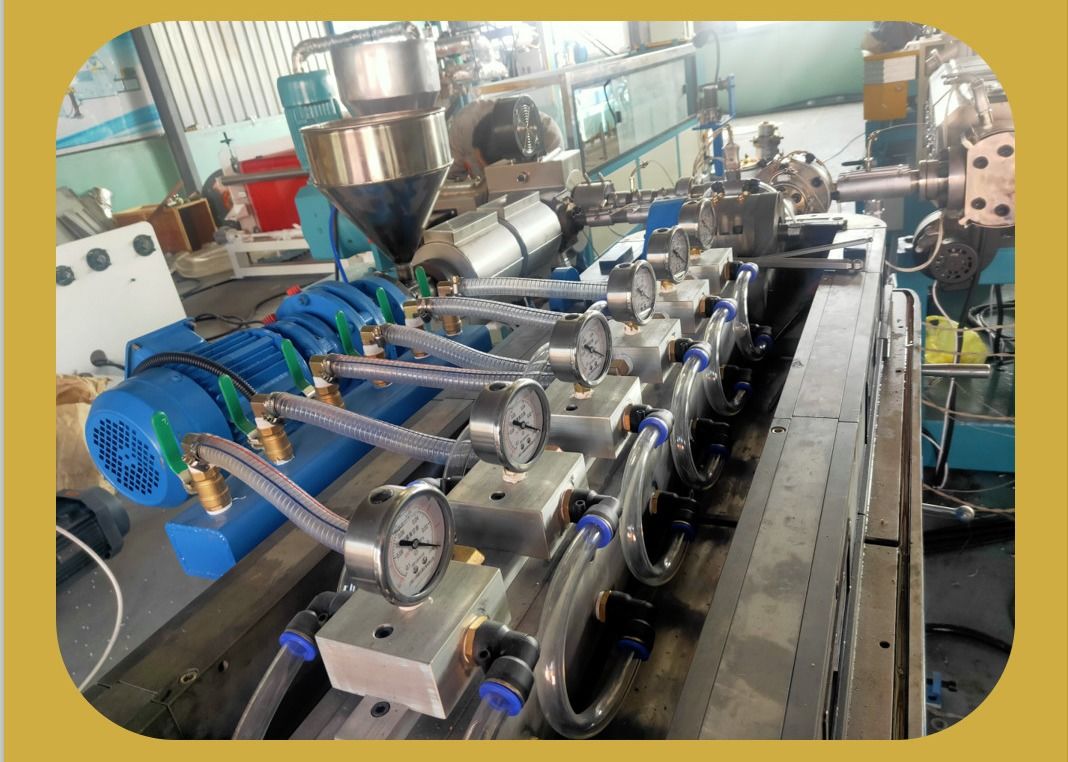

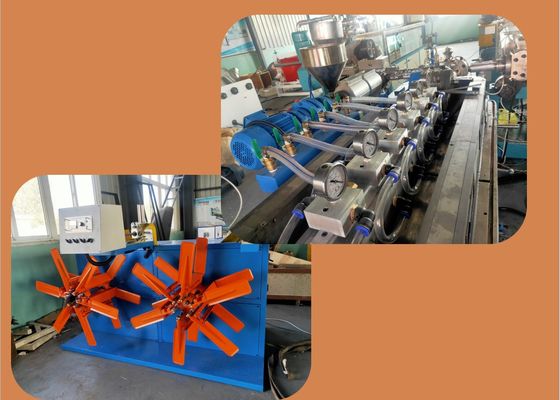

Sheath PVC Plastic Extruder Wire Cable Making Machine/ Plastic Pipe Production Machine
The Sheath PVC Plastic Extruder Wire Cable Making Machine/ Plastic Pipe Production Machine is used for copper core insulation coating of middle and small section production, mainly for the soft polyviny chloride(PVC), polyethylene and other thermoplastics.
Suitable for the extrusion of PVC,PE,PU and other plastic material,mainly applied in the insulation or sheath extrusion of car cable,net wire,power cable,data wire,high frequency wire,building wire,electric wire.etc.The changed screw is suitable for extrusion of low smoke halogen free,nylon and other plastic material.
|
Model |
SW-70 |
SW-80 |
SW-90 |
SW-120 |
SW-150 |
|
Core wire dia |
1-8mm |
2-12mm |
4-16mm |
15-35 |
40-80 |
|
Heating power of the machine body |
20kw |
23kw |
27kw |
40kw |
60kw |
|
Driven force |
40hp |
60hp |
60hp |
100hp |
125hp |
|
Max.output (kg/h) |
140 |
180 |
240 |
380 |
500 |
Application: applicable to the jacket/sheath extrusion of power wires, computer wires, data wires and high-frequency cables etc.
The above is our main models. We also can customize the wire cable extrusion lines as per your requirements.
As of now we can make the following extrusion lines:
Micro-fine teflon extrusion line
Teflon high temperature electronic wire extrusion line
Triple-layer insulation extrusion line
Triple-layer insulation co-extrusion extrusion line
Chemical foaming double-layer extrusion line
Physical foaming extrusion line
High-speed automatic Lan Cable extrusion line
High speed insulation cored wire extrusion line
Nylon double-layer extrusion line
Jacket (sheath) extrusion line
Rubber continuous vulcanization extrusion line
Sillicone gel continuous vulcanization extrusion line
Radiation rubber wire extrusion line
High speed automobile wire extrusion line
