Product Details:
|
| Driven Type: | Electric | Screw: | Single-Screw |
|---|---|---|---|
| Low-Voltage Electrical Parts: | Schneider | Inverter: | ABB |
| Extruding Capacity: | 270kg/H | Suitable Material: | PVC/PE |
| The Screw Diameter: | 150mm | Running Speed: | >40m/Min |
| High Light: | PPR Cable Jacket Extrusion Machine,40m/Min Cable Jacket Extrusion Machine,40hp Cable Jacket Extrusion Machine |
||
Plastic PE/PVC/PP/PPR Sheath Voltage Cable Conductor Cable Jacket Extrusion Machine
1.Application:
Used for power wire, computer wire, data cable and high frequency cable sheath or jacket insulation extrusion.
2. Production line constitute:

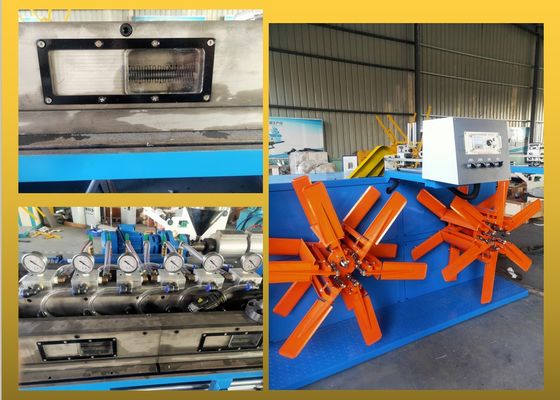

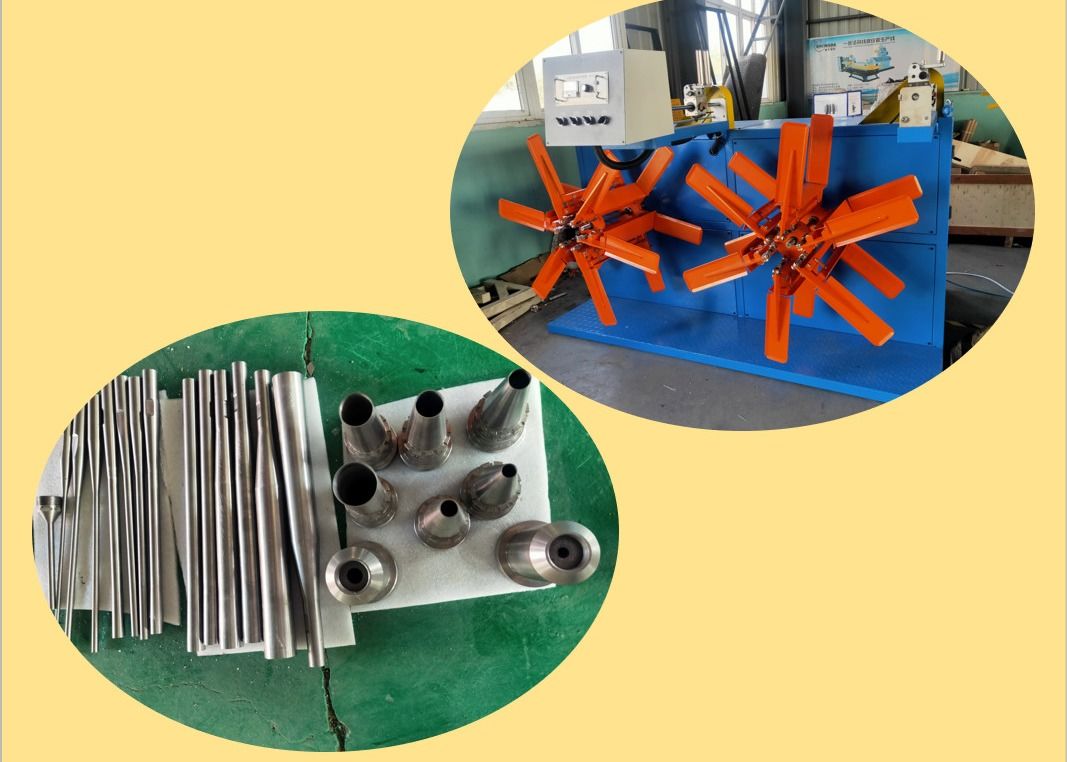

Pay-off, Main machine,Electric control cabinet, Fixed trough, Movable trough, Capstain machine, Take-up.
Optional parts: spark tester, diameter tester, LSZH screw, gantry type pay-off and take-up, end-shaft pay-off and take-up.
3. Machine Features:
1) High productivity: Optimize the design of screw, make it durable, chromeplate non worn down, non conglutination, color-change quickly, high speed, high output.
2) High quality: Concentricity:over 93%; OD tolerance:±0.005mm.
3) Temperature control precise: Adopted SCR power controller or solid-state relay(SSR) , with imported high-quality temperature control table and copper casting heater,
temperature zone of machine controlled within ±1ºC.
4) Operate easily: Exclusive adopt NEWTOPP Teflon specialized touch screen, both provide Chinese/English operation interface, auto-control and auto-feedback, operate easily.
|
Model |
SW-70 |
SW-80 |
SW-90 |
SW-120 |
SW-150 |
|
Core wire dia |
1-8mm |
2-12mm |
4-16mm |
15-35 |
40-80 |
|
Heating power of the machine body |
20kw |
23kw |
27kw |
40kw |
60kw |
|
Driven force |
40hp |
60hp |
60hp |
100hp |
125hp |
|
Max.output (kg/h) |
140 |
180 |
240 |
380 |
500 |
The above is our main models. We also can customize the wire cable extrusion lines as per your requirements.
As of now we can make the following extrusion lines:
Micro-fine teflon extrusion line
Teflon high temperature electronic wire extrusion line
Triple-layer insulation extrusion line
Triple-layer insulation co-extrusion extrusion line
Chemical foaming double-layer extrusion line
Physical foaming extrusion line
High-speed automatic Lan Cable extrusion line
High speed insulation cored wire extrusion line
Nylon double-layer extrusion line
Jacket (sheath) extrusion line
Rubber continuous vulcanization extrusion line
Sillicone gel continuous vulcanization extrusion line
Radiation rubber wire extrusion line
High speed automobile wire extrusion line
