Product Details:
|
| Product Type: | PE Pipe | Screw No.: | Single-screw |
|---|---|---|---|
| Automation: | Automatic | Computerized: | Computerized |
| Screw Channel Structure: | Deep Screw | Feeding Mode: | One Feed |
| High Light: | Prestressed Spiral Corrugated Pipe Equipment,HDPE Spiral Corrugated Pipe Equipment,Deep Screw Corrugated Pipe Equipment |
||

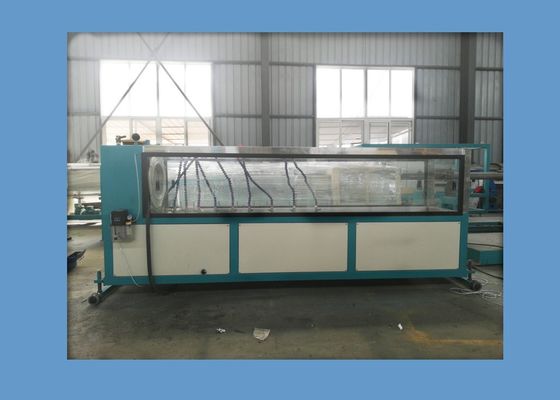

HDPE Carbon Spiral Pipe Equipment/ Prestressed Spiral Corrugated Pipe Equipment
The HDPE Carbon Spiral Pipe Equipment/ Prestressed Spiral Corrugated Pipe Equipment is suitable for the high speed extrusion of HDPE, LDPE, and PP material.
It adopts high speed high efficiency single screw extruders directly extruding forming technology, special structure die head, forming stably. Corrugator adopts horizontal structure with chain type transmission. Aluminum alloy mold blocks equipped with open water cooling system and advanced self-lubrication system to improve production speed greatly. The whole production line adopts Germany Siemens professional PLC control system, high automation, reliable running, and easy operation.
HDPE Carbon Spiral Pipe Equipment/ Prestressed Spiral Corrugated Pipe Equipment adopts complicated mechanic head ,double combiated machine to production to provide material and spiral writhe .

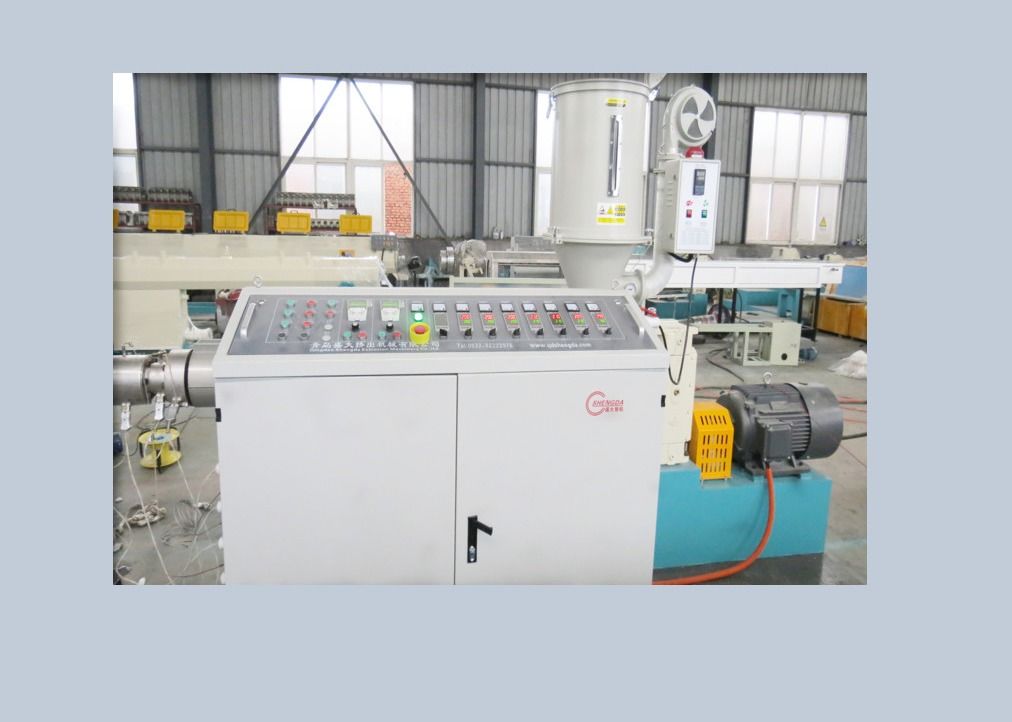

For HDPE,you can choose high efficient single screw extruder.
For PVC,you can choose conical twin screw extruder or parallel twin downstream equipment
The forming system of this line consists of mould and corrugator.The mould blocks can be easily changed and they may have air or water cooling system.
| Model | SW-1500 | SW-1000 | SW-500 | SW-250 | SW-160 | SW-90 |
| Structure Form | Vertical | Vertical | Horizontal | Horizontal | Horizontal | Horizontal |
| Applicable Raw Materials | HDPE | HDPE | HDPE | HDPE | HDPE | HDPE |
| Pipe Diameter Range | 400-1500 | 250-1000 | 160-500 | 90-250 | 75-160 | 40-90 |
| Max Extrusion Output | 1200 | 850 | 600 | 350 | 200 | 100 |
| Forming Speed | 0.25-2.5 | 0.25-2.5 | 0.4-4 | 0.5-5 | 0.6-6 | 0.8-8 |
| Axis Height | 1600 | 1600 | 1150 | 1100 | 1000 | 1000 |
