Product Details:
|
| Product Type: | PE Pipe | Screw No.: | Single-screw |
|---|---|---|---|
| Automation: | Automatic | Computerized: | Computerized |
| Screw Channel Structure: | Deep Screw | Feeding Mode: | One Feed |
| High Light: | Anti Erosion Corrugated Pipe Extruder,106mm HDPE Corrugated Pipe Extruder,Computerized Corrugated Pipe Extrusion Line |
||

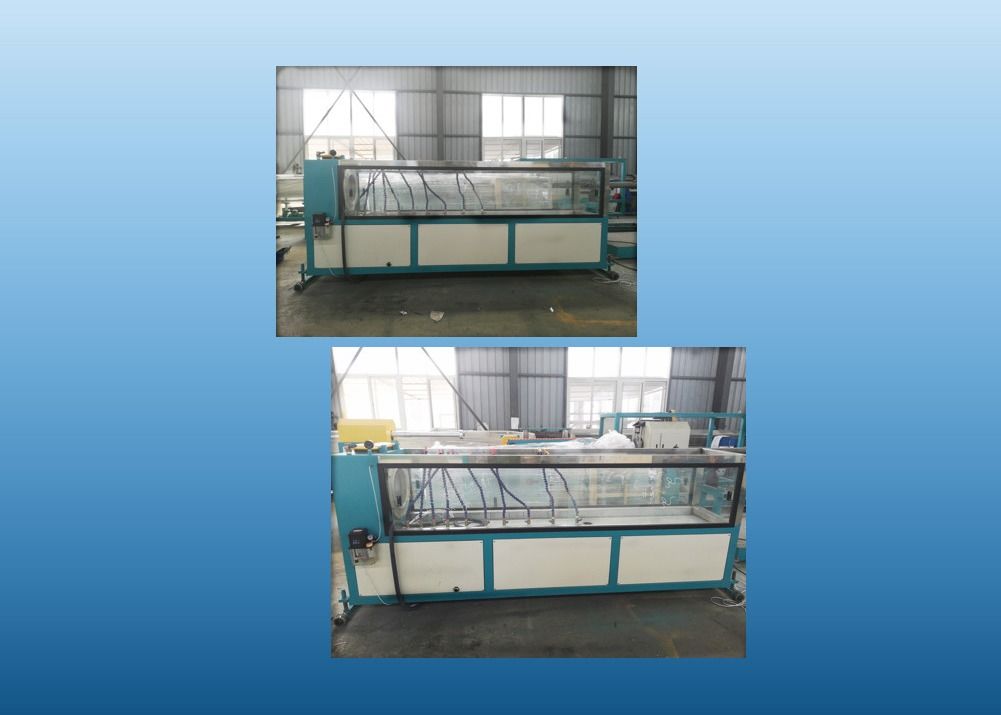

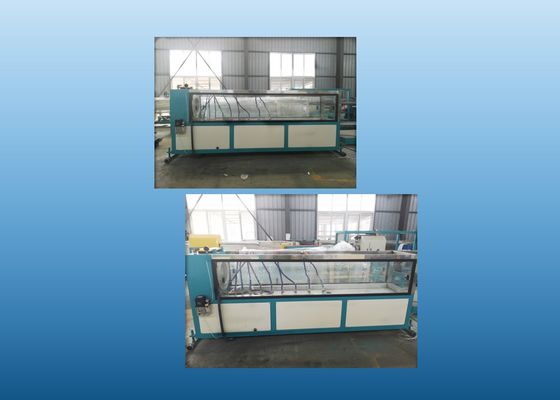

HDPE Double-Wall Corrugated Pipes Production Line with Spiral Corrugator
HDPE Double-Wall Corrugated Pipes Production Line with Spiral Corrugator
Size:10-13-15.8-21.2-28.5-34.5-42.5-54.5-67.2-82.5-106mm
Application of HDPE Double-Wall Corrugated Pipes Production Line with Spiral Corrugator: This kind of pipe is high temperature resistance, anti-erosion, anti-abrasion and with high strength. The pipe can be used as oil pipe in automobile braking system, and for high temperature gas, chemical liquid transferring.
Advantage of HDPE Double-Wall Corrugated Pipes Production Line with Spiral Corrugator: HC greesense's special designed screw and special structure mould can protect the screw and barrel from easy-abradion and give an easy forming process.
Material of HDPE Double-Wall Corrugated Pipes Production Line with Spiral Corrugator: HDPE, Tperature range:-40-115 centigrade.The product does not contain halide, antioil, anti-acid, anti-inflamation rate is HB(U94).The black color pipe is ultraviolet resistant.
Material: HDPE. Temperature range:-20-110centigrade,the productant is anti-oil, anti-alkali. The black color pipe is ultraviolate resistant.
Material; HDPE. Temperature range:-40-80centigrade,the product is anti-oil, anti-acid, anti-alkali. The black color pipe is ultraviolet resistant.
Normal Speed HDPE Plastic Single Wall Corrugated Pipe Extrusion Line
Chainging the Corrugator and Mould Block, use two sets of extruders, you can produce flexible double wall corrugated pipe
| Model | SW-1500 | SW-1000 | SW-500 | SW-250 | SW-160 | SW-90 |
| Structure Form | Vertical | Vertical | Horizontal | Horizontal | Horizontal | Horizontal |
| Applicable Raw Materials | HDPE | HDPE | HDPE | HDPE | HDPE | HDPE |
| Pipe Diameter Range | 400-1500 | 250-1000 | 160-500 | 90-250 | 75-160 | 40-90 |
| Max Extrusion Output | 1200 | 850 | 600 | 350 | 200 | 100 |
| Forming Speed | 0.25-2.5 | 0.25-2.5 | 0.4-4 | 0.5-5 | 0.6-6 | 0.8-8 |
| Axis Height | 1600 | 1600 | 1150 | 1100 | 1000 | 1000 |
