Product Details:
|
| Product Type: | PE Pipe | Screw No.: | Single-screw |
|---|---|---|---|
| Automation: | Automatic | Computerized: | Computerized |
| Screw Channel Structure: | Deep Screw | Feeding Mode: | One Feed |
| High Light: | Deep Screw Corrugated Pipe Extrusion Line,100kg/H Corrugated Pipe Extrusion Line,CE Corrugated Pipe Extrusion Line |
||

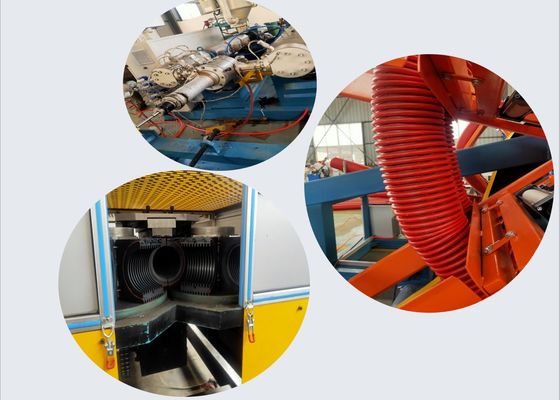

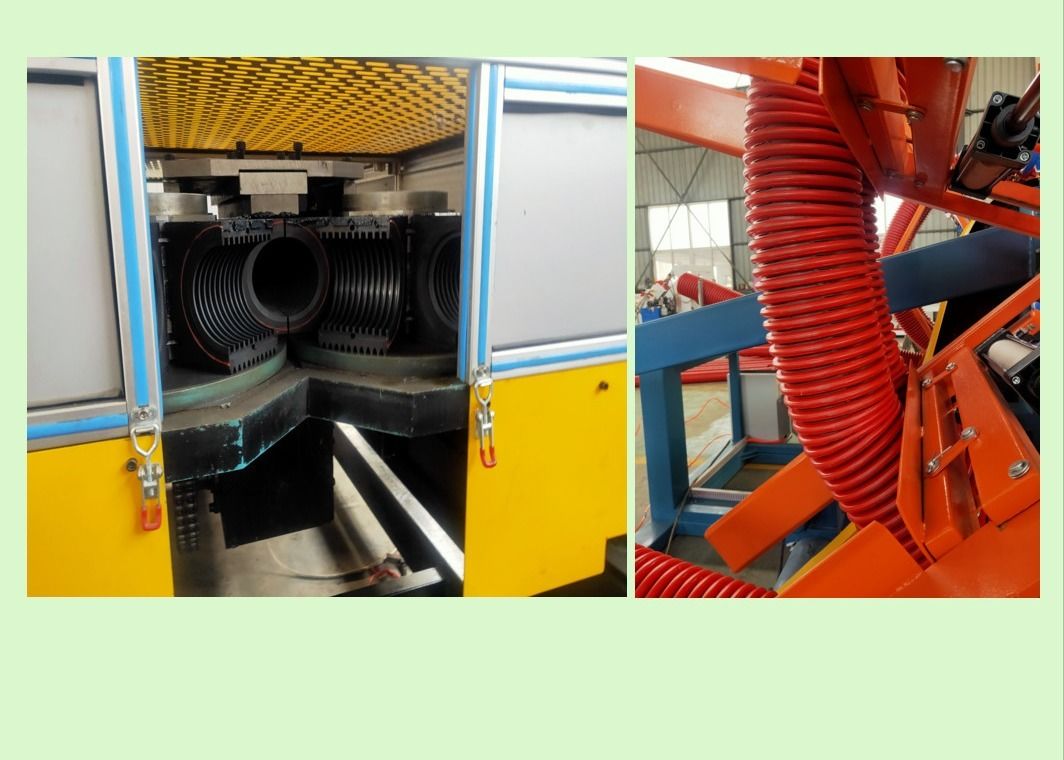

Single Wall Corrugated Electrical Wire Conduit Plastic Pipe Extruder Machine
| Model | SW-51/105 | SW-55/100 | SW-65/132 | SW-80/156 | SW-92/188 |
| Screw diameter(mm) | 51/105 | 55/100 | 65/132 | 80/156 | 92/188 |
| Quantity of screw | 2 | 2 | 2 | 2 | 2 |
| Max. rotation speed of screw(r/min) | 40 | 38 | 38 | 37 | 36 |
| Effective length of screw(mm) | 1200 | 1200 | 1440 | 1800 | 2500 |
| Main motor power(kw) | 18.5 | 22 | 37 | 55 | 110 |
| Productuion capacity(kg/h) | 100 | 150 | 250 | 400 | 750 |
| Center height(mm) | 1000 | 1000 | 1000 | 1100 | 1200 |
| Dimensions(L*W*H)mm | 3360*1290*2127 | 3620*1050*2157 | 3715*1520*2450 | 4750*1550*2460 | 6725*1550*2814 |
Product Description of Single Wall Corrugated Electrical Wire Conduit Plastic Pipe Extruder Machine
1.This Single Wall Corrugated Electrical Wire Conduit Plastic Pipe Extruder Machine can be used to produce corrugated pipes of PE,PP,PVC,EVA continuously,as well as PA corrugated pipes.
2.Plastic single wall corrugated pipes have features of high temperature resistance, resistant to corrosion and abrasion, high intensity, good
flexibility, etc
3.They are widely used in fields of auto wire, electric thread passing pipes, circuit of machine tool, protective pipes of lamps and lanterns wire, tubes of air conditioner and washing machine, etc
Application & Features of Single Wall Corrugated Electrical Wire Conduit Plastic Pipe Extruder Machine
1.Single Wall Corrugated Electrical Wire Conduit Plastic Pipe Extruder Machine is used for extrude PVC powder to become plastic pipe, profile, plate and etc when change different mould, screw and auxiliary equipments.
2.It includes screw, barrel, gear transmission system, heating, cooling and electric control and etc.
3.The screw has applied oil cooling system. Bareel is cooled by special wind cooling system.
4.Vacuum exhausting and material feeding device is fixed with machine.
Production Flow:
Raw material + master batches→mixing→vacuum feeding →material dryness →single screw extruder→extrusion mould→corrugation forming machine→meter measurer→double winder→finished product inspecting &packing
