Product Details:
|
| Product Type: | PE Pipe | Screw No.: | Single-screw |
|---|---|---|---|
| Automation: | Automatic | Computerized: | Computerized |
| Screw Channel Structure: | Deep Screw | Feeding Mode: | One Feed |
| High Light: | 40r/Min Corrugated Pipe Extrusion Line,18.5kw Corrugated Pipe Extrusion Line,100kg/H Corrugated Pipe Machine |
||
Single Wall Plastic Corrugated Plastic Making Machine/ PVC Pipe Machine
| Model | SW-51/105 | SW-55/100 | SW-65/132 | SW-80/156 | SW-92/188 |
| Screw diameter(mm) | 51/105 | 55/100 | 65/132 | 80/156 | 92/188 |
| Quantity of screw | 2 | 2 | 2 | 2 | 2 |
| Max. rotation speed of screw(r/min) | 40 | 38 | 38 | 37 | 36 |
| Effective length of screw(mm) | 1200 | 1200 | 1440 | 1800 | 2500 |
| Main motor power(kw) | 18.5 | 22 | 37 | 55 | 110 |
| Productuion capacity(kg/h) | 100 | 150 | 250 | 400 | 750 |
| Center height(mm) | 1000 | 1000 | 1000 | 1100 | 1200 |
| Dimensions(L*W*H)mm | 3360*1290*2127 | 3620*1050*2157 | 3715*1520*2450 | 4750*1550*2460 | 6725*1550*2814 |
Our Single Wall Plastic Corrugated Plastic Making Machine/ PVC Pipe Machine is using Bearing close the forming moulds! So forming machines can run very fast,reach 15-25M/MIN. Normal forming moulds are closed by pins.Speed is usually 8-10M /Min.

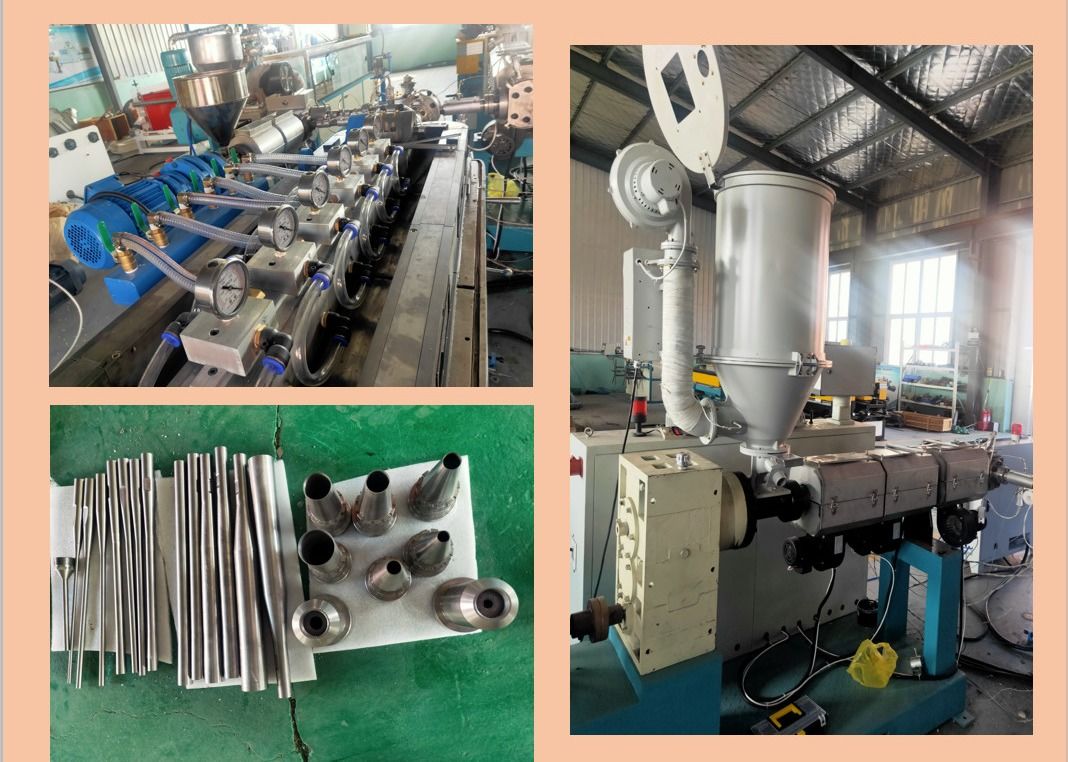

Main machine of Single Wall Plastic Corrugated Plastic Making Machine/ PVC Pipe Machine is equipped with single screw extruder;Extruder is equipted with harden teeth gear box,38CrMoALA screw and barrel.
Adopts High speed Corrugation forming machine: closed structure, module link in the overall closure base does round-trip running in the running tunnels.

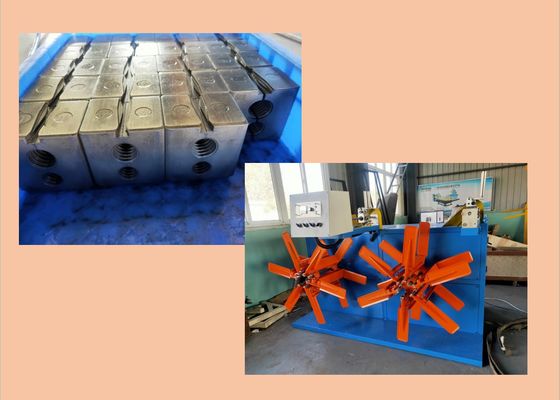

Forming modules: it is made of hard steel, with a rigorous use of CNC finishing materials produced to ensure the hardness and precision of the molding modules. These modules are easy and convenient to change.
Coiler: Single position or double position with torque motor.
Electrical parts: ABB inverter, Schneider contactor, RKC temperature controllers etc.
