Product Details:
|
| Product Type: | HDPE Pipe | Screw No: | Single-screw |
|---|---|---|---|
| Motor: | Siemens | Warranty: | 1 Year |
| Computerized: | Computerized | Condition: | New |
| High Light: | 110mm HDPE Pipe Extrusion Line,Single Screw HDPE Pipe Extrusion Line,110mm HDPE Tube Extrusion Machine |
||
HDPE Plastic Water Gas Oil Supply Hose Pipe Tube Extrusion Production Line Making Machine
| Model | Pipe range(mm) | Extruder model | Capacity(kg/h) | Total power(kw) |
| WS-63 | 20-63 | SJ65/30 | 120 | 100 |
| WS-110 | 20-110 | SJ65/33 | 200 | 150 |
| WS-160 | 75-160 | SJ75/33 | 300 | 180 |
| WS-250 | 90-250 | SJ90/33 | 450 | 230 |
| WS-315 | 110-315 | SJ90/33 | 600 | 350 |
Description of HDPE Plastic Water Gas Oil Supply Hose Pipe Tube Extrusion Production Line Making Machine:
PE Pipe Extrusion/Production line is mainly used for producing gas supplying pipe, water supplying pipe, cable protection pipe etc. The pipe has some excellent features such as low temperature impact resistance, reliable connection, good stress crack resistance, good chemical resistance, good wear resistance, long using life, etc. our extrusion line is designed with high efficiency extruder and equipped with reducer which is high speed and low noise, Gravimetric dosing unit and ultrasonic thickness indicator can be assembled according to customer's demand to ascend the precise of the pipes . Turn key solution can be provided, like laser printer, crusher, shredder, water chiller, air compressor etc. to achieve high-grade and automatic tube production.
The various thickness of the pipes produced can make them suitable for applications range from urban water supply to gas transportation. This line also excels in the production of anti-flammable and anti-static electricity pipes using a two or three layer spiral mould for use in mining industries. Pipes produced feature even wall-thickness and perfect roundness. Through switching or adding certain part of machine unit, this line can also be customized to extrude pipes of various other kinds.
Process flow of HDPE Plastic Water Gas Oil Supply Hose Pipe Tube Extrusion Production Line Making Machine:

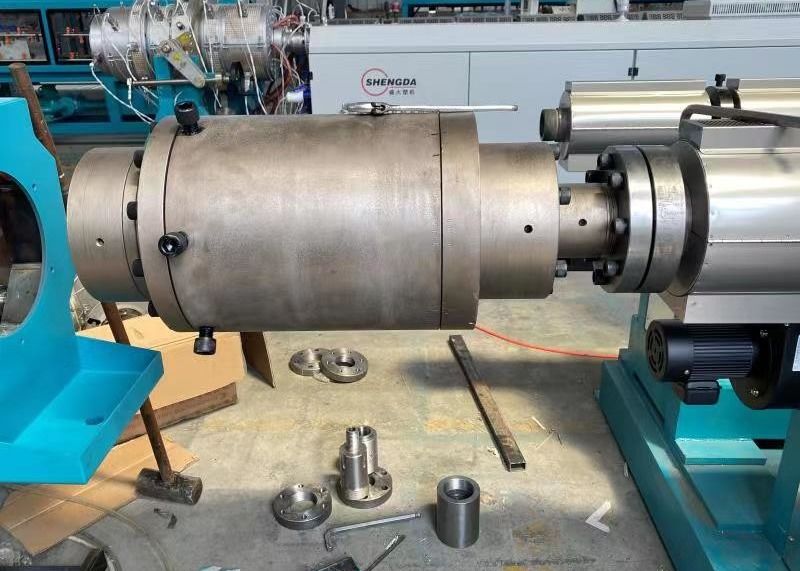

Raw material+ Master Batches → Mixing → Vacuum Feeder →Plastic Hopper Drier→ Single Screw Extruder →Co-extruder for color string & Multi Layers → Mould → Vacuum Calibration Tank → Spray Cooling Water Tank → Haul-off → No Dust Cutter →Stacker → Final Product Inspecting &Packing
Main Features of HDPE Plastic Water Gas Oil Supply Hose Pipe Tube Extrusion Production Line Making Machine:
The optimum spiral structure-feeding throat highly improves the output of extruder;
Accurate temperature control system ensures materials melting performance;
Unique screw design achieves better plasticizing and high quality products;
Precisely designed gearbox with a high torsion guarantees stable running;
"H" shape frame to decrease vibrating of extruder;

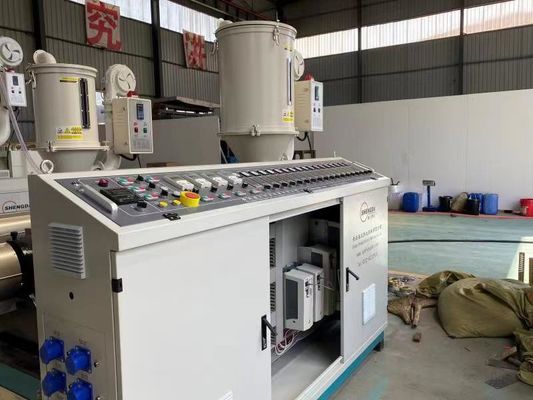

Advanced PLC operation system realizes synchronization and automation;
Adopt automatic water temperature & level control and special independent filters on both vacuum and cooling tanks;
Offer stable haul-off unit with 2-12 caterpillars;
Provide saw & chip-free cutting options;
Low energy consumption, excellent performance, and easy maintenance.
