Product Details:
|
| Product Type: | PVC Pipe | Screw No.: | Double-screw |
|---|---|---|---|
| Screw Type: | Conic Twin Screw | Inverter: | ABB |
| Low Pressure Electrics: | Schneider | Motor: | Siemens |
| High Light: | PPR PE Corrugated Pipe Extrusion Line,Double Screw Corrugated Pipe Extruder,Corrugated Pipe Extrusion Line 10m/Min |
||
Plastic PPR/ PE Water Pipe Extrusion Making Machine
| Model/data | Pipe diameter | Extruder Model | Speed | Max capacity |
| SW-63 | 16-63 mm | SW-51/105 | 1-10m/min | 120kg/h |
| SW-160 | 75-200 mm | SW-65/132 | 1.5-5 m/min | 260kg/h |
| SW-400 | 200-400 mm | SW-80/156 | 0.5-1.5m/min | 400kg/h |
| SW-630 | 400-630 mm | SW-92/188 | 0.1-0.8m/min | 650kg/h |
Plastic PPR/ PE Water Pipe Extrusion Making Machine is mainly used to produce agricultural/water supply/drainage pipes, architectural water supply/drainage pipes, cable laying pipes etc. This PVC pipe extrusion line adopts advanced design concept to ensure the efficient extrusion of PVC powder, combined with the unique concept of plasticization screw design to ensure uniformity of plastic extrusion, high capacity production.
a. Conical twin screw extruder:

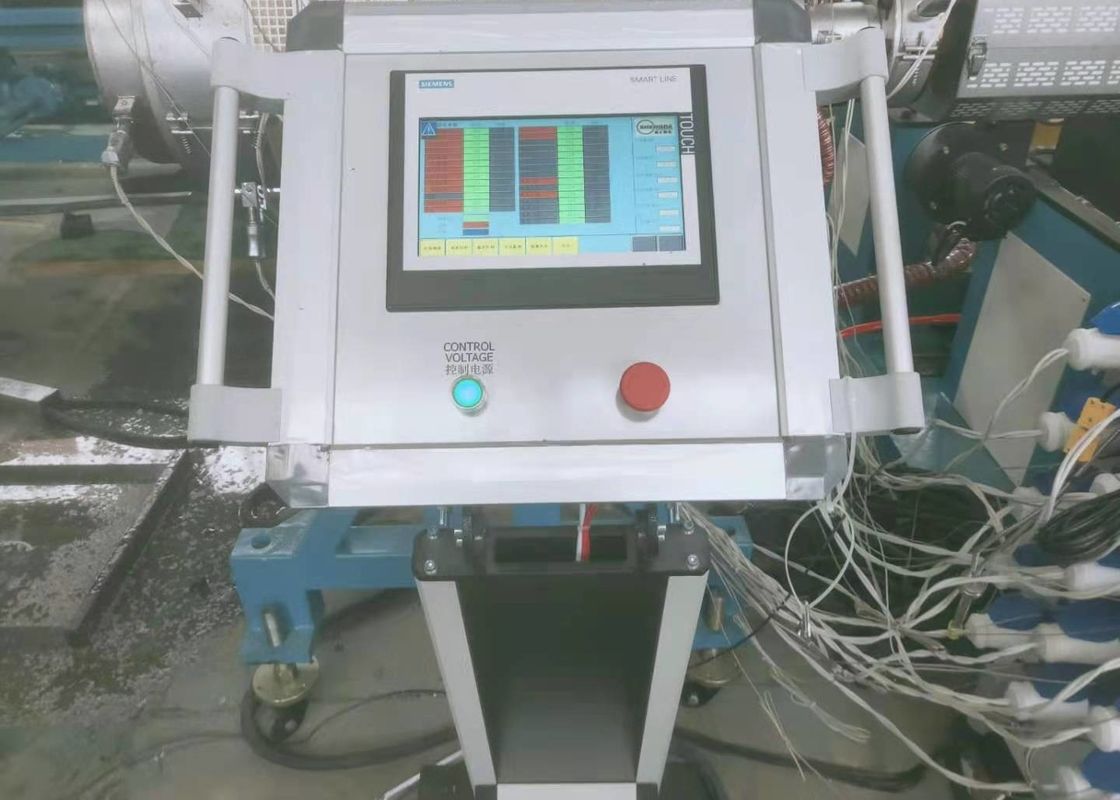

Using the high efficient conical twin screws, specially designed for PVC power to ensure uniformed plasticization, high extrusion. Stable temperature controlling system can guarantee high quality pipe extrusion.
b. PVC pipe Mould:

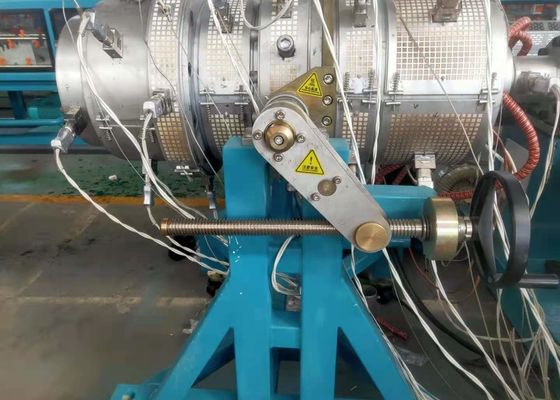

Spiral type die head will ensure high speed extrusion and avoid the thermal decomposition of amorphous plastics and get high quality pipes. There is heating control system inside of the mould, high efficient, easy to extrude. Bronze calibrators can make the pipes fast calibrated and cooled.
c. Spraying and cooling tanks:
Rapid vacuum calibrating system allows the hot extruded pipes to be cooled in a very short time and obtain the final pipe diameter. Automatic temperature control system, pressure regulator, and vacuum control valve greatly enhance the pipe sizing and cooling performance as well as the production speed.
d. Haul off machine:
Adopts caterpillar type, which includes two-claw types, three-claw types, four-claw types, six-claw types, eight -claw types, ten-claw types, twelve-claw types etc, suitable for different sizes of pipes. Haul off caterpillar blocks are made of abrasion resistant rubber material, which can make a high and stable hauling speed.
e. Cutting machine:
Precision machine cutter is able to make flat, straight cuts into pipes at high speed. A powerful suction device gathers up waste scraps after cutting, thereby making it easier for users to clean the cutter.
6. Pipe belling machine:
Automatic pipe belling machine comes with 2 heating ovens to ensure pipe belling quality and productivity.
