Product Details:
|
| Type: | Pipe Extruder | Plastic Processed: | PVC |
|---|---|---|---|
| Product Type: | Extrusion Molding Machine | Feeding Mode: | One Feed |
| Application: | Plastic Pipe, Profile, Plate | Extruder Material: | 38crmoala |
| High Light: | Conduit Plastic Pipe Extruder Machine,Corrugated Plastic Pipe Extruder Machine,PVC Plastic Pipe Extruder Machine |
||

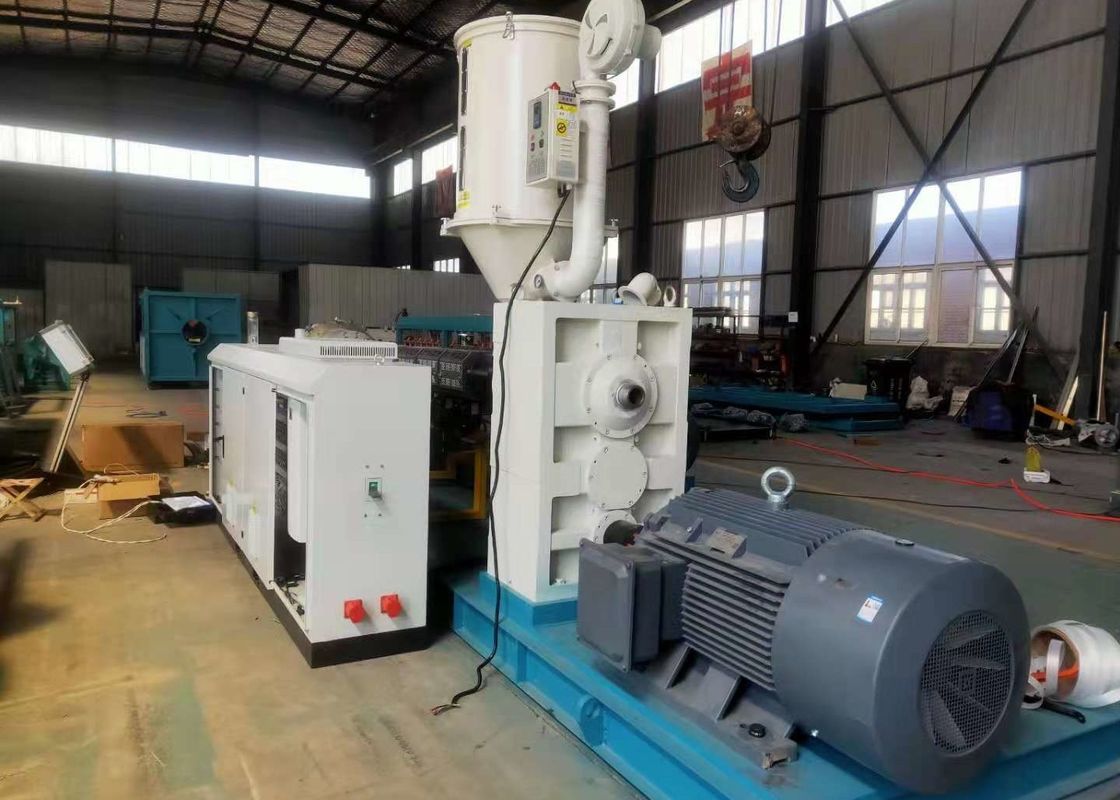

Single Wall Corrugated Electrical Wire Conduit Plastic Pipe Extruder Machine
Conical Twin-Screw Plastic Extruder of Single Wall Corrugated Electrical Wire Conduit Plastic Pipe Extruder Machine
| Model | SW-51/105 | SW-55/100 | SW-65/132 | SW-80/156 | SW-92/188 |
| Screw Diameter(mm) | 51/105 | 55/100 | 65/132 | 80/156 | 92/188 |
| Quantity of screw | 2 | 2 | 2 | 2 | 2 |
| Max. rotation speed of screw(r/min) | 40 | 38 | 38 | 37 | 36 |
| Effective length of screw(mm) | 1200 | 1200 | 1440 | 1800 | 2500 |
| Main motor power(kw) | 18.5 | 22 | 37 | 55 | 110 |
| Productuion capacity(kg/h) | 100 | 150 | 250 | 400 | 750 |
| Center height(mm) | 1000 | 1000 | 1000 | 1100 | 1200 |
Product Description of Single Wall Corrugated Electrical Wire Conduit Plastic Pipe Extruder Machine
1.This production line can be used to produce corrugated pipes of PE,PP,PVC,EVA continuously,as well as PA corrugated pipes.
2.Plastic single wall corrugated pipes have features of high temperature resistance, resistant to corrosion and abrasion, high intensity, good
flexibility, etc
3.They are widely used in fields of auto wire, electric thread passing pipes, circuit of machine tool, protective pipes of lamps and lanterns wire, tubes of air conditioner and washing machine, etc
