Product Details:
|
| Model NO.: | 16-630 | Condition: | New |
|---|---|---|---|
| Plastic Processed: | PVC,PP,PE，PP,PPR | Pipe Range: | 16-630mm |
| Motor Brand: | Siemens Or ABB | Contactor: | Schnerder |
| High Light: | Single Screw Corrugated Pipe Extrusion Line,PPR Corrugated Pipe Extrusion Line,Air Conditioner Ppr Pipe Extruder |
||

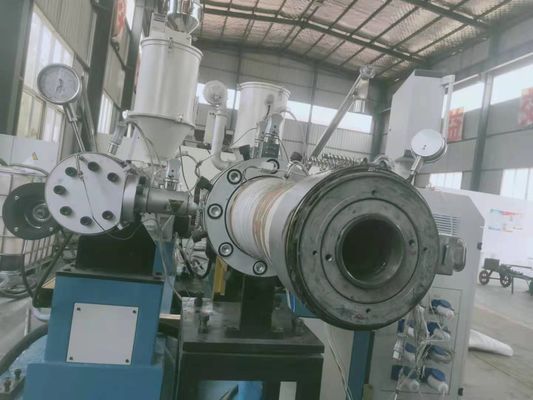

Plastic PE/PP/PVC/PPR Single Screw Corrugated/ Hose Extrusion Line
Main Features for Plastic PE/PP/PVC/PPR Single Screw Corrugated/ Hose Extrusion Line
1) Simple structure in linear type ,easy in installation operation and maintation.
2) Adopting advanced famous brand components in pneumatic parts ,electric parts and operation parts.
3) Significant high out-put with low energy consumption.
4) Running in a high automatization and intellectualization.
|
Model |
Pipe range |
Extruder |
Max.output(kg/h) |
Motor power |
Total power |
|
63 |
16-63mm |
SJ65/33 SJ25/25 |
120-180 |
45KW |
110KW |
|
110 |
16-110mm |
SJ65/33 SJ25/25 |
150-200 |
55KW |
130KW |
|
160 |
50-160mm |
SJ75/33 SJ25/25 |
150-220 |
75KW |
150KW |
|
250 |
75-250mm |
SJ75/33 SJ25/25 |
280-350 |
90KW |
280KW |
|
315 |
110-315mm |
SJ90/33 SJ25/25 |
250-350 |
132KW |
350KW |
|
450 |
160-450mm |
SJ90/33 SJ25/25 |
350-450 |
160KW |
400KW |
|
630 |
315-630mm |
SJ120/33 SJ25/25 |
550-850 |
200KW |
550KW |
|
800 |
450-800mm |
SJ150/33 SJ25/25 |
800-1300 |
250KW |
750KW |
Plastic PE/PP/PVC/PPR Single Screw Corrugated/ Hose Extrusion Line Product Application:
1.The production line is suitable for producing small diameter single wall bellows with PP and PE raw materials. It can continuously produce polyethylene, polypropylene, polyvinyl chloride, Eva and other bellows and PA bellows.
2.It is used as wire and cable to wear pipe, washing machine drainage pipe, vacuum cleaner pipe and ventilator
3.It is widely used in automobile wire, electric wire pipe, machine tool circuit, lamp wire protection tube, air conditioner, washing machine and so on.
