Product Details:
|
| Type: | Pipe Extruder | Production Capacity: | 100kg/h |
|---|---|---|---|
| Screw: | Twin-Screw | Screw Channel Structure: | Deep Screw |
| Computerized: | Computerized | Automation: | Automatic |
| High Light: | Reinforced Hose Pipe Extrusion Line,200mm Pipe Extrusion Line,8mm pvc pipe making machine |
||
20-63mm PVC Spiral Steel Wire Reinforced Hose Pipe Extrusion Line

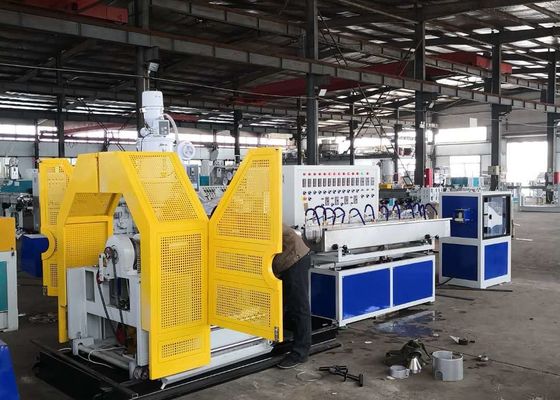

20-63mm PVC Spiral Steel Wire Reinforced Hose Pipe has many advantages, such as extrusion resistance, corrosion resistance, and pressure resistance, anti-bend and so on. This pipe is suitable for gas, liquid, powder-like transmission. It mainly used in industry, agricultural, building and water irrigation areas. 8-200mm PVC spiral steel wire reinforced hose pipe extrusion line mainly includes extruder, spiral forming machine, water spraying tank, haul-off machine and winder.
| Model | Screw diameter(mm) | L/D | Pipe range(mm) | Capacity (kg/h) | Main motor power(kw) | Total power(kw) | Line length(m) |
| PVC-45 | 45 | 28:1 | 12-20 | 20-40 | 11 | 30 | 15 |
| PVC-65 | 65 | 28:1 | 20-50 | 40-80 | 22 | 40 | 16 |
| PVC-90 | 90 | 28:1 | 50-75 | 100-130 | 45 | 50 | 18 |
| PVC-120 | 120 | 28:1 | 100-150 | 120-150 | 75 | 75 | 22 |
8-200mm PVC Spiral Steel Wire Reinforced Hose Pipe Extrusion Line Description:

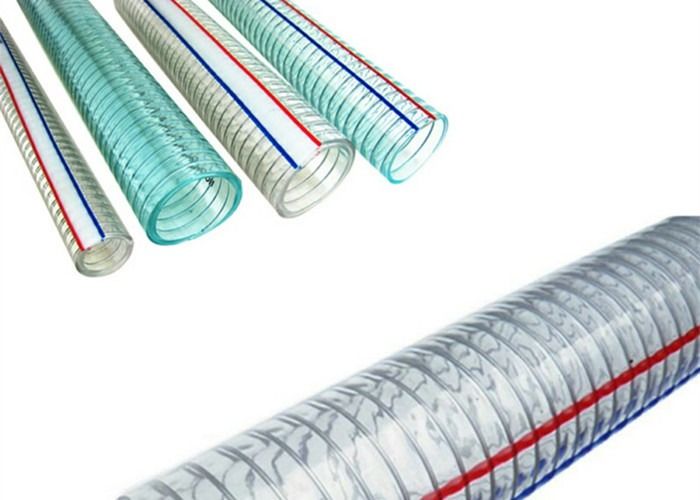

PVC steel wire reinforced hose pipe production line is mainly used to produce PVC steel wire reinforced hose pipe. PVC steel wire reinforced hose is also called steel PVC wire hose pipe or PVC spiral hose pipe. It is a kind of PVC transparent hose pipe inserted with spiral steel wire, so, the pipe has the feature of compression resistance, corrosion resistance, antistatic and high pressure resistance. The pipe is used to convey the high pressure or inflammable gas and liquid, vent impure liquid.
20-63mm PVC Spiral Steel Wire Reinforced Hose Pipe Extrusion Line Features:
1. The optimum spiral structure feeding throat highly improves the output of extruder PVC steel wire reinforced pipe machine
2. Accurate temperature control system ensures materials melting performance PVC steel wire reinforced pipe machine
3. Unique screw design achieves better plasticizing and high quality products
4. Precisely designed gearbox with a high torsion guarantees stable running
5. "H" shape frame to decrease vibrating of extruder
6. Advanced PLC operation system realizes synchronization and automation
7. Adopt automatic water temperature & level control and special independent filters on both vacuum and cooling tanks
8. Offer stable haul-off unit with 2-12 caterpillars
9. Provide saw & chip-free cutting options
10. Low energy consumption, excellent performance, and easy maintenance
Application
It is windly used in the industry of manchinery,chemical industry, constrcution, agriculture irrigation, vacuum facility, etc.
