Product Details:
|
| Product Type: | PE Pipe | Screw No.: | Single-screw |
|---|---|---|---|
| Automation: | Automatic | Computerized: | Computerized |
| Screw Channel Structure: | 18.5-55 | Feeding Mode: | One Feed |
| High Light: | PVC Corrugated Pipe Production Line,180kg/h Corrugated Pipe Production Line,180kg/h corrugated pipe extrusion machine |
||

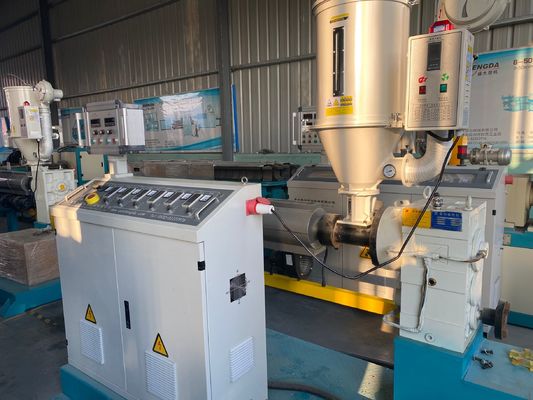

180kg/h PE/PVC Corrugated Pipe Production Extrusion Machine Line
| Model of the single screw extruder | SJ-30B | SJ-45B | SJ-65B | SJ-90B | SJ-120B | SJ-150B |
| screw of the extruder(L/D) | 25-33 | 25-33 | 25-33 | 25-33 | 25-33 | 25-33 |
| Power of the extruder(kw) | 2.2-7.5 | 7.5-22 | 18.5-55 | 55-185 | 90-280 | 110-300 |
| Heating Power (kw) | 5-8 | 6-12 | 12-18 | 16-40 | 20-60 | 30-80 |
| Cooling Style | By Fans and Water | |||||
| Max. Extruding Capacity (kg/h) | 18 | 60 | 180 | 450 | 650 | 950 |
Description:
This corrugated production line can be used to produce single-wall or double wall corrugated pipes of PE, PP, PVC, EVA continuously, as well as PA corrugated pipes.
It calso called pvc corrugated pipe extruder/pvc corrugated pipe machine/pvc corrugated pipe production line/pe corrugated pipe extruder/pe corrugated pipe machine/pe corrugated pipe extrusion line/pe corrugated pipe production line.
Characteristics and Application of Pipe:
Plastic single-wall corrugated pipes have features of high temperature resistance, resistant to corrosion and abrasion, high intensity, good flexibility, etc.
They are widely used in fields of auto wire, electric thread-passing pipes, circuit of machine tool, protective pipes of lamps and lanterns wire, tubes of air conditioner and washing machine,These corrugated pipes are especially used as wires of the up-market cars, electric conduit pipe passing, washing machine, air conditioner pipe, lamp pipes, etc.
Machine's Features:
Plastic single-wall corrugated pipe production line developed by our company adopts gears to run moulds and templates so as to realize water circulating cooling and air cooling of the products, which ensures high-speed molding, even corrugation, smooth inner and outer pipe wall.
Machine parts list:
1. Single screw extruder: SJ-45/30, 65/30
2. Corruated pipe mold: 50-72pairs
3. Corrugated pipe forming machine
4. Double station winder
5. Electric control cabinet.
Auxiliary Machine;
1. Haul-off Unit
2. Cutting Machine
3. Winding Machine
