1t/H PE/HDPE Double Wall Corrugated Pipe Extrusion Line For Drainage / Cable Duct

1t/H PE/HDPE Double Wall Corrugated Pipe Extrusion Line For Drainage / Cable Duct
1t/H PE/HDPE Double Wall Corrugated Pipe Extrusion Line For Drainage / Cable Duct 1t/H PE/HDPE Double Wall Corrugated Pipe Extrusion Line For Drainage / Cable Duct

Large Image :  1t/H PE/HDPE Double Wall Corrugated Pipe Extrusion Line For Drainage / Cable Duct

Product Details:
Place of Origin: China
Brand Name: Win Win
Certification: CE
Model Number: SJ-120/33
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Delivery Time: 45 workdays
Payment Terms: T/T
Supply Ability: 50 sets/month
Contact Now

1t/H PE/HDPE Double Wall Corrugated Pipe Extrusion Line For Drainage / Cable Duct

Description
Product Type: PE Pipe Screw No.: Single-screw
Installed Gross Capacity: 785kw Customized: Customized
Overall Dimension(L*W*H): 38m×6.4m×4m Warranty: 1 Year
High Light:

1t/H Corrugated Pipe Extrusion Line

,

Drainage Corrugated Pipe Extrusion Line

,

1t/H Corrugated Pipe Extrusion machine

1t/h PE/HDPE Double Wall Corrugated Pipe Extrusion Line for Drainage/Cable Duct
1 Pipe Range Min ID 100mm
2 Pipe Range Max OD 630mm
3 Installed gross capacity 785kw
4 Normal working power 190-230kw
5 Maximum production speed 4.3m/min
6 Maximum Output 1150kg/hr
7 Overall dimension(L*W*H)

38m×6.4m×4m

Advantages of 1t/h PE/HDPE Double Wall Corrugated Pipe Extrusion Line for Drainage/Cable Duct

Higher output, lower production cost
The mould blocks are continuously cooled with pressure water cooling system to achieve higher cooling efficiency and higher production speed of the corrugated pipe machine, so as to lower pipe production cost.



Flexible production organization improve equipment utilization and increase overall capacity of the factory
The moulds are compatible between different sizes of corrugators; it makes production organization more flexible. All the corrugated pipe production lines can be utilized more sufficiently to increase the overall capacity of the factory.

Quick and easier changeover, less down-time and higher production efficiency.
Innovative rapid assembly of mould blocks simplifies the operation of changing mould blocks and greatly shortens the down time of corrugated pipe machines.
Stable, Reliable and High Durability
1. Excellent mechanical structure design is the premise of stable running.
2. Manufactured with world-class machine tools to guarantee high accurate.
3. Implement strictly high-grade quality standards with international advanced quality testing apparatus.
4. Select high-quality suppliers around the world.

Higher pipe quality
1. Mould block temperature control system helps to optimize the pipe quality both appearance and inside.
2. Stable vacuum molding technology and unique double-layer socket technique ensure that the inner layer and outer layer stick together perfectly.

Material Saving (lower pipe weight)
ZhongyunTech has installed 700+ sets of corrugated pipe production lines around the world, and in last over 20 years, ZhongyunTech has been paying close attention to customers' feedback and market demand, constantly optimize pipe design so that customers can produce high-quality corrugated pipes with less material.

Perfect In-line Double-layer Socket
ZhongyunTech unique NPM Technology and PBM Technology can produce perfect in-line double-layer socket whose two layers are stick together closely from the starting point to the end point.

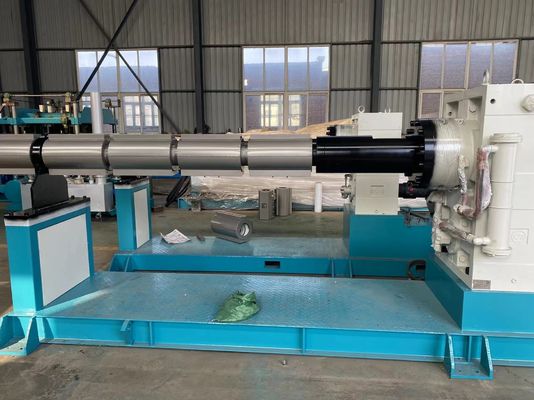

1t/H PE/HDPE Double Wall Corrugated Pipe Extrusion Line For Drainage / Cable Duct 0

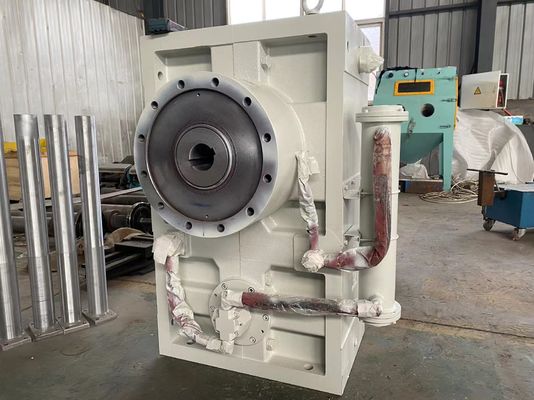

1t/H PE/HDPE Double Wall Corrugated Pipe Extrusion Line For Drainage / Cable Duct 1
