Product Details:
|
| Product Type: | PE Pipe | Screw No.: | Single-screw |
|---|---|---|---|
| Production Capacity: | 500kg/h | Model NO.: | 315-630mm |
| Automation: | Automatic | Warranty: | 1 Year |
| High Light: | PPR Plastic Pipe Production Line,630mm Plastic Pipe Production Line,315mm Plastic Pipe Production Line |
||
315-630mm HDPE/PPR Plastic Pipe Production Line Extrusion Line
| Pipe ranger(mm) | 20-63 | 50-160 | 150-250 | 250-315 | 280-630 |
| Extruder | SJ65/33 | SJ75/33 | SJ90/33 | SJ120/33 | SJ150/33 |
| Capacity(kg/h) | 50-80 | 80-150 | 180-260 | 300-400 | 450-600 |
| Total power(kw) | 75 | 145 | 195 | 220 | 350 |
| Line length | 35 | 38 | 42 | 44 | 56 |
| Control system | PLC | PLC | PLC | PLC | PLC |
HDPE/PPR Pipe Production Line
Machine Characteristics
1. The optimum spiral structure feeding throat highly improves the output of extruder
2. Accurate temperature control system ensures materials melting performance
3. Unique screw design achieves better plasticizing and high quality products
4. Precisely designed gearbox with a high torsion guarantees stable running
5. "H" shape frame to decrease vibrating of extruder
6. Advanced PLC operation system realizes synchronization and automation

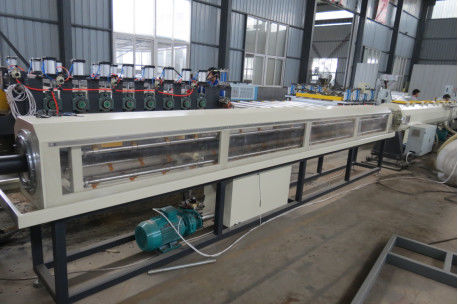

7. Adopt automatic water temperature & level control and special independent filters on both vacuum and cooling tanks

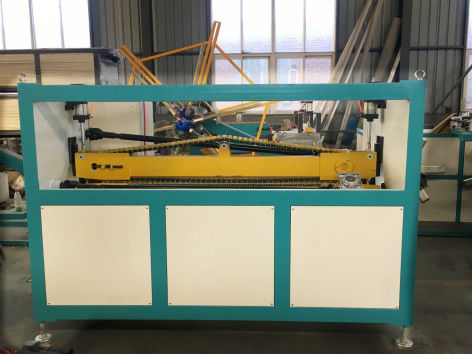

8. Offer stable haul-off unit with 2-12 caterpillars
9. Provide saw & chip-free cutting options
10. Low energy consumption, excellent performance, and easy maintenance
