Plastic HDPE Pipe Extrusion Line for Water Supply Drainage Electric Conduit Wire Gas Pipe

Plastic HDPE Pipe Extrusion Line for Water Supply Drainage Electric Conduit Wire Gas Pipe
Plastic HDPE Pipe Extrusion Line for Water Supply Drainage Electric Conduit Wire Gas Pipe
Plastic HDPE Pipe Extrusion Line for Water Supply Drainage Electric Conduit Wire Gas Pipe Plastic HDPE Pipe Extrusion Line for Water Supply Drainage Electric Conduit Wire Gas Pipe Plastic HDPE Pipe Extrusion Line for Water Supply Drainage Electric Conduit Wire Gas Pipe

Large Image :  Plastic HDPE Pipe Extrusion Line for Water Supply Drainage Electric Conduit Wire Gas Pipe

Product Details:
Place of Origin: China
Brand Name: Win Win
Certification: CE
Model Number: SJ65/33
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Packaging Details: Transportation standard
Delivery Time: 45 Workdays
Payment Terms: T/T
Supply Ability: 50 sets/mouth
Contact Now

Plastic HDPE Pipe Extrusion Line for Water Supply Drainage Electric Conduit Wire Gas Pipe

Description
Plastic Processed: HDPE/PP Screw No.: Single-screw
Install Power: 30kw Condition: New
Automation: Automatic Warranty: 1 Year
High Light:

Plastic HDPE Pipe Extrusion Line

,

220kg/h Water Supply Pipe Extrusion Line

,

Conduit Wire HDPE Pipe Extruder

Plastic HDPE Pipe Water Supply Drainage Electric Conduit Wire Gas Pipe Extrusion Line



Diameter range(mm) Extruder model Max.Capacity(kg/h) Max.lineal speed(m/min.) Extrusion power(KW)
20-63 SJ65/33 220 12 55
20-63 SJ60/38 460 30 110
20-63Dual SJ60/38 460 15*2 110
20-110 SJ65/38 220 12 55
20-110 SJ60/38 460 30 110
20-160 SJ60/38 460 15 110
50-250 SJ75/38 600 12 160
110-450 SJ90/38 850 8 250
250-630 SJ90/38 1050 4 280



Application:
PE Plastic Pipe Extrusion Line is mainly used in the production of agricultural drainage, water supply and cable conduit purposes. The unit consists of single extruder machine, mold, vacuum forming tank, multi-claw haul-off machine, planetary(chipless/non-dust cutter) cutting machine, stacker and so on. And the line can be equipped with Comptroller thickening instrument or computer ink-jet printer, etc. to achieve the production and manufacture of high-grade tubing.

Great advantages:
1. High lineal extrusion speed, big capacity and low power consumption, and achieved multi-layers co-extrusion with 1-5 layers.
2. The copper bush is more wear-resisting and prevent material leakage which can guarantee a stable running of extruder.
3. Material feed via spiral groove, efficient transmission and can effectively reduce back-pressure on extruder.
4. Unique design (barrier, shearing and mixing zone) guarantees a uniformed plasticizing effect, and can reduce the pressure on the screw which guarantees a high speed and stable output capacity.
5. High torque gear box has a smart figuration, compact construction, low noise, high carrying capacity, high transmission efficiency can assure long-time trouble-free operation;
6. PCA(pipe air cooling system) of die head largely increase the extrusion speed and decrease the cooling length of extrusion line, and improve quality of inner pipe surface;
7. Intelligent PLC controlling system with human-friendly interface make the operation easily and conveniently;
8. Chip-free cutter ensuing flat and smooth cutting surface of pipe.

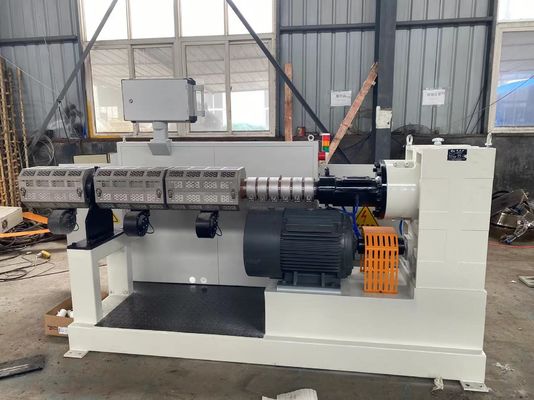

Plastic HDPE Pipe Extrusion Line for Water Supply Drainage Electric Conduit Wire Gas Pipe 0

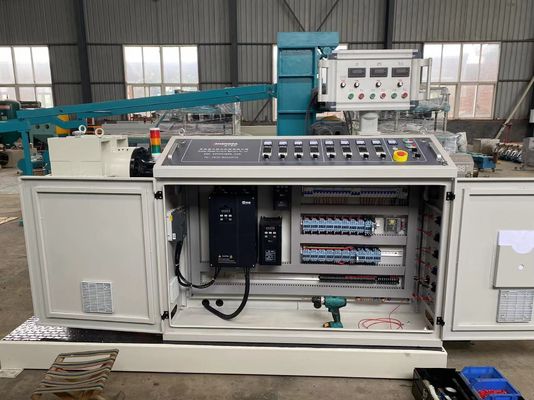

Plastic HDPE Pipe Extrusion Line for Water Supply Drainage Electric Conduit Wire Gas Pipe 1



Li Bing
Tel:86-132 7834 4832 (Wechat/skype/whatsapp)
E-mail: libing@qdwinwin.cn
Web1: www.qdwinwin.cn
Web2: www.corrugatedpipeextrusionline.com
Address: Jiaoxi Industrial Park, Jiaozhou, Qingdao, Shandong, China

Tag:

120kgh cable extrusion line,

65kw pipe extrusion machine,

63mm plastic pipe extrusion line
