Product Details:
|
| Materials: | PE, PP, PVC, HDPE, HDPE/PP | Screw Design:: | Single-screw |
|---|---|---|---|
| Screw Speed (rpm): | 120 Rpm | Applicable Industries:: | Building Material Shops, Manufacturing Plant, Home U |
| Motor: | AC Motor | Speed Of Line: | 20-30m/min |
| High Light: | polyethylene corrugated pipe extrusion line,120 rpm corrugated pipe extrusion line,drainage pe corrugated pipe machine |
||
High Speed Corrugated Pipe Drainage Pipe Machine Corrugated Pipe Extrusion Line
Win-Win plastic single-wall corrugated pipe production line developed by our company adopts gears to run moulds and templates so as to realize water circulating cooling air of the products,which ensures high-speed molding,even corrugation,smooth inner and outer pipe wall.These corrugated pipes are especially used as wires of up-market cars,cable protection pipe,water smoking pipe and so on.
Production speed :20-30m/min.
| NO | Name |
| 1 | Feeder |
| 2 | Extruder |
| 3 | Die head |
| 4 | mouth mould,core bar,gas nose and pull rod |
| 5 | Corrugated pipe forming mould |
| 6 | double station winder |
| 7 | High speed pipe forming machine |
Feeder with spring vibrating screen
The vibrating screen on the feeding machine can filter out the impurities in the raw material, the pipe will be more smooth and beautiful.
Single wall corrugated pipe machine extruder
High plasticization rate,uniform melt and continuous production stability. High performance gearbox reducer.long life and low noise.
For PVC powder raw material market widely use double screw extruder. but Win-Win design single screw barrel suitable for PVC powder material,PVC granule material and PP PE EVA granule.Use one machine can cover all these materials.it can help customer save the machine cost.
Energy saving heating ring
Energy saving heating ring (rock wool in the heating ring can hold heat,can save about 30%electrical costs)
The plastic extruder mouth mould
WIN-Win new design,the core bar and mouth mould fit together,when change size,no like the old design change the core bar and mouthe separately,it will be save more than 1h for the clean the waste material
Corrugated pipe forming mould
PVC PP PE corrugated pipe machine:Can carve customer logo,can choose double cavity or three cavity in one set mould,when change the size,just up and down forming machine,no need put out all set mould. it can save more long time for customer.

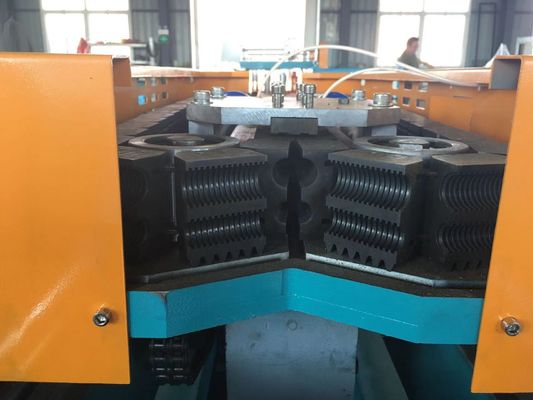

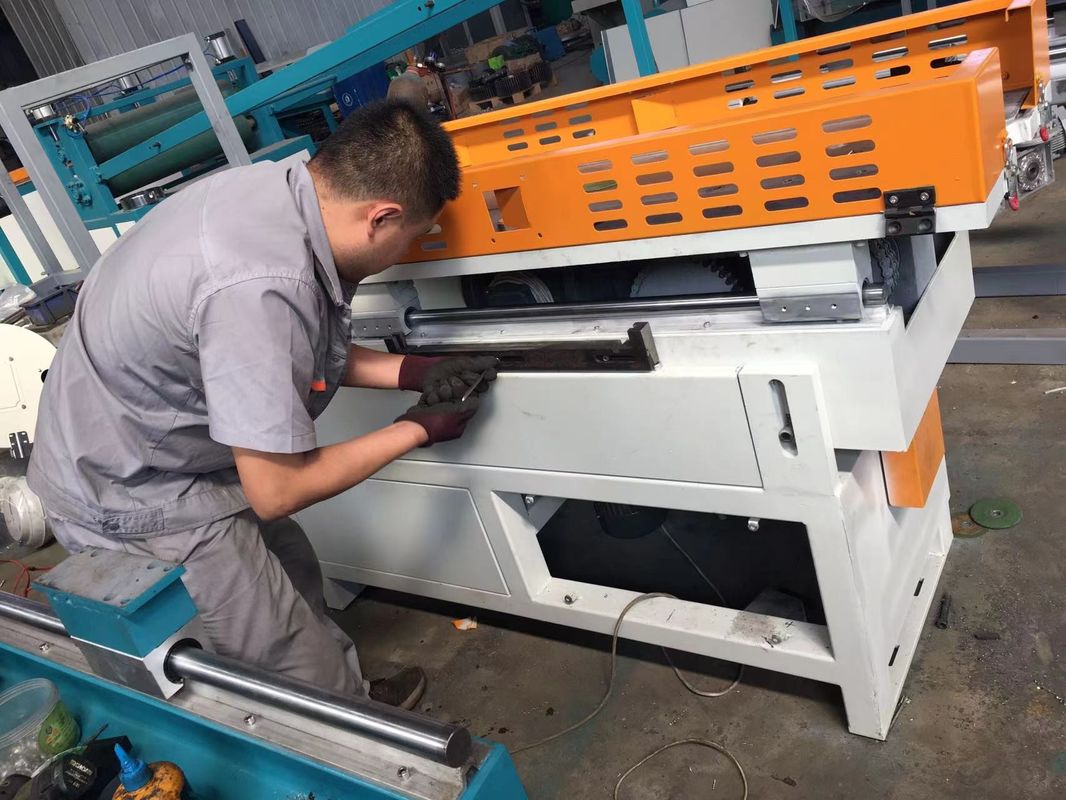

High Speed Forming machine
Production speed 20-30m/min Plate is 38CrMoAiA has high surface hardness. wear resistance and fatigue strength,and has good heat resistance and corrosion resistance,harden ability is not high,used for making nitriding parts with high wear resistance,high faigue strength,considerable strength and high diamensional precision after treatment. the service life is double than 45#steel.
Cooling method:water colling. Water circulation can ensure the forming machine and mould are always keeping in low temperature. the pipe inner side more smooth,increase the production speed and product quality.
Forming machine adjustment:manual control left and right,Electric control up and down.
Double station winding machine.
Automatic wiring device,balance the speed match rewinding speed,help winding machine adjust the speed,when the pipe production
slow,will stop rewinding,prevent pipe too tight disconnect.
