Product Details:
|
| Material: | PVC | Screw: | Conical Twin Screw |
|---|---|---|---|
| Speed: | 0.8- 1.8 M /min | Motor: | Siemens |
| Inverter: | ABB | Out Put: | 80-100kg/H |
| High Light: | siemens motor hdpe pipe production line,100kg/h hdpe pipe production line,conical twin screw hdpe pipe extruder |
||

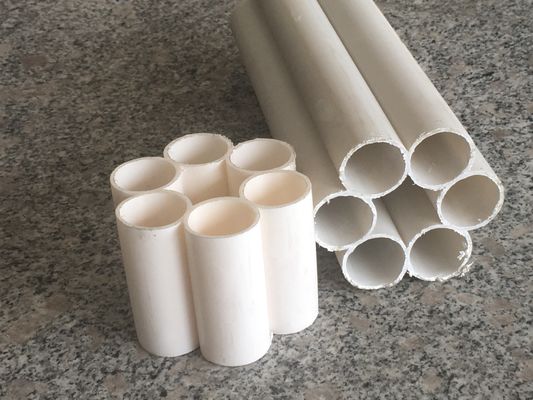

Plum Blossom Grille Tubes With 7 Holes HDPE Porous Plum Electric Cable Protection Corrugated Pipe
Seven Hole Plum Tube Introduction:
Seven-hole plum tube is HDPE (high-density polyethylene) as raw material, extruded by an extrusion molding production, the single hole wall intersection, close melting of a cable sheath pipe, HDPE porous plum tube with waterproof, moisture, anti-aging, long life, good weather resistance characteristics. As the seven-hole plum pipe is a one-time forming of the integrated porous casing, so easy construction, increased the number of embedded holes, increased construction speed, greatly reducing the engineering unit of materials and construction costs. Products with waterproof, moisture, anti-aging, long life, good weather resistance characteristics. Plum tube features: the tube was plum-like, increased lighting, heat cycle to speed up, hot water heating speed.
Seven-hole plum blossom tube characteristics
8.The performance-price ratio is better than other materials.
Pipe production line of the process:
| Holes | Outside diameter/mm | Inner hole diameter/mm |
Wall thickness/mm |
tolerance/mm |
| 7 | Φ108 | Φ32 |
2.7 |
±0.5 |
| 5 | Φ93 | Φ32 |
2.6 |
±0.5 |
| 5 | Φ82 | Φ28 |
2.4 |
±0.5 |
| 5 | Φ76 | Φ26 |
2.4 |
±0.5 |
Ecommended raw material: UPVC Powder, CaCO3 + Additives.
Operators position: Left of extrusion direction.
Extrusion height center height: 1050mm
Working Condition
Size of line: 45*2*2.5 meters
Temperature 0-35ºC
Supply Voltage:380V-3P- 50HZ
Voltage tolerance: ±10%
Consumption Power: 50 KW
Cooling Water: ≤20ºC, ≥0.3Mpa, 5T/h
Compressed air: 0.5m3/min, >0.5Mpa
| NO |
List of the production line |
| 1 |

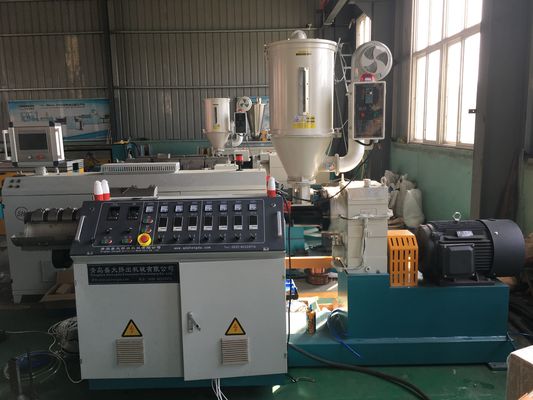

SJSZ 65*132 Conical Twin-Screw Extruder |
| 2 |
Mold(including heater and calibrator) |
| 3 |

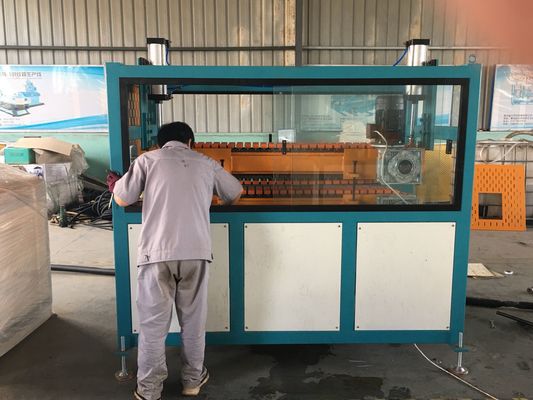

ZDLX-580*6000 calibration & cooling tank |
| 4 |
SLQ-400 2-Claw haul-off equipment |
| 5 |
cutter |
| 6 |
Stacker |
| 7 |
Electric cabinet with ABB inverter, SIEMENS PLC |
