Product Details:
|
| Material: | PE PP PVC | Motor Power: | 30/50kw |
|---|---|---|---|
| Screw Material: | 38crmoala | Production Speed: | 3-12m/Min |
| Pipe Diameter: | 6-80mm | Capacity: | 60-120kg/H |
| High Light: | PVC Sylphon Bellows Production Line,PP Sylphon Bellows Production Line,Corrugated Pipe Extrusion Line 120kg/H |
||
PE PP PVC Flexible Hose Sylphon Bellows Production Single or Double Wall Corrugated Pipe Tube Making Machine Extrusion Line

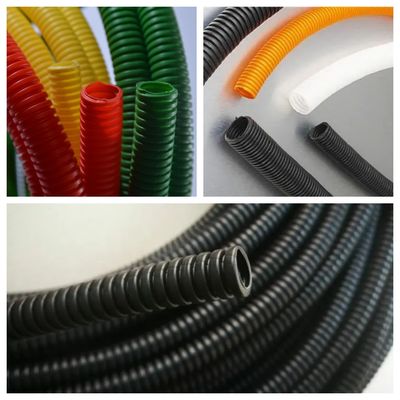

Single wall corrugated pipe extrusion line designed by our company can produce PP/PE/EVA/PVC etc single wall corrugated pipes, which takes the advantages of high temperature resistance, abrasion resistance, corrosion resistance, high strength. This hose can be widely used in wire and cable products threading pipes, washing machine drains, vacuum cleaner, ventilation pipes, tubes, etc.
This extrusion line consists of extruders, die head, corrugation forming machine with modules, coiler etc. and can produce different sizes of corrugated pipes.

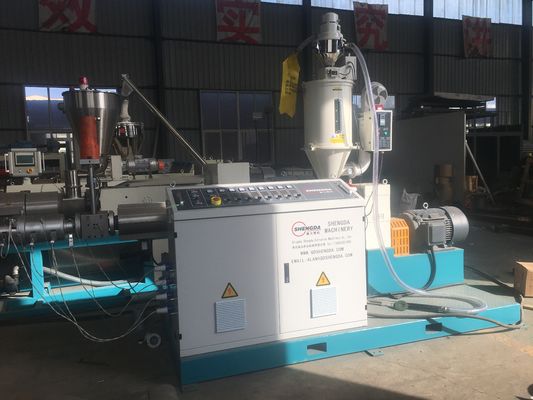

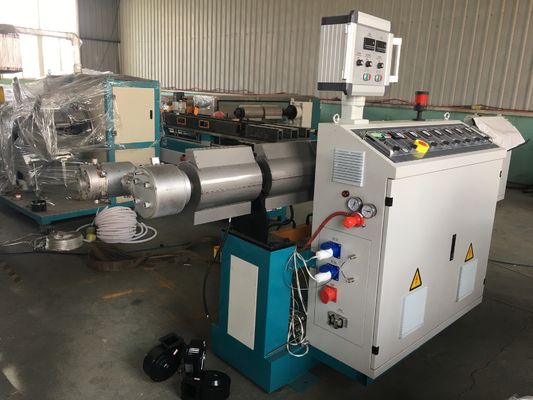

1.Single or twice screw extruder with auto feeding machine.:
High efficient screw, hard gear surface gearbox, uniformed raw material heating, good plasticization, high extrusion speed.
Extruder size according to different requirements of pipe diameter.
Motor power:30kw
Motor brand:Simens
Temperature controller:Omron
Frequency inventer:ABB
2.Automatic Corrugation forming machine:
Closed structure, module link in the overall closure base does round-trip running in the running tunnels.It is controlled by the remoted control.You can .The forming machine can make vacuum type and normal type.Vacuum type is suitable for making the corrugated pipe which with joint. Like washing machine pipe, shisha hookah hose etc.
3.Forming modules:
It is made of hard steel, dealed with a rigorous use of CNC finishing materials produced to ensure the hardness and precision of the molding modules. These modules are easy and convenient to change.
4.Calibrating and cooling tank:
The calibrating and cooling tank can calibrate and cool the PVC pipe from the mould.
(1) Vacuum pump power : 4 kw
(2) Water pump power: 2.2 kw*2
(3) Spray cooling: ABS nozzle; Stainless steel pipe
(4) Stainless steel material: 1Cr18NiTi
(5) Diameter of tank : Customized
(6) Length of tank: 6 m
5.Haul-off machine
The haul-off machine can transport pipe to coiler.
(1) Hauling power: 1.5 kw
(2) Clamping style: Pneumatic clamping
(3) Transducer: Siemens transducer
(4) Hauling track type: Plastic block
(5) Effective clamping length 1800 mm
6.Coiler :
Single position or double position with torque motor.We can provide the whole line for corrugated pipe making machine.Such as ,the automatic corrugated pipe winding machine which adopt polishing rod wire traverse for winding displacement.The automatic cutting machine is a special cuter for the car harness.
7.Electrical parts:
ABB inverter, Siemens contactor, RKC thermo controllers etc.
8.Other Information:
| Pipe diameter(mm) | Extruder model | Output(kg/h) | Total power(kw) | Module No.(pairs) | Production line speed(m/min) |
| Φ6-12 | SJ-45 | 40-60 | 16 | 42 | 6-12 |
| Φ16-32 | SJ-50 | 50-70 | 23 | 48 | 6-12 |
| Φ20-63 | SJ-65 | 60-100 | 38 | 56 | 4-8 |
| Φ50-80 | SJ-75 | 70-130 | 64 | 72 | 3-8 |
