PE Pipe Extrusion Line PE HDPE PPR Pipe Making Machine Plastic Extruder

PE Pipe Extrusion Line PE HDPE PPR Pipe Making Machinery/HDPE Production Line/Plastic Extruder

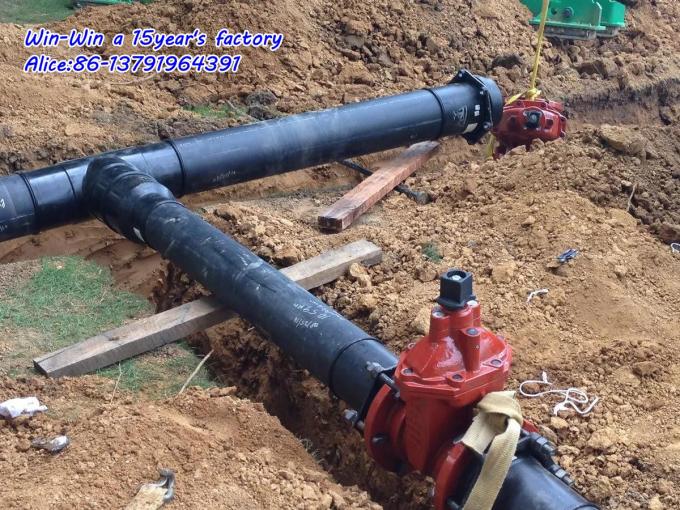

  HDPE pipe has been used to transport water since the 1960s and continues to grow in popularity. It’s durable and won’t leak, rust or corrode, which is ideal for both potable and non-potable water applications.

  Drinking water contaminants are a concern in the U.S., as many cities have

old lead or copper pipes. With HDPE pipe, there is a lowrisk of chemicals leaching into the water, making it a safe choice for potable wate

Industrial operations like oil and gas, hydroelectric dams, and mining are often in rough environments. HDPE performs well in rugged environments and harsh climates. It is durable and will not crack or break in extreme weather conditions. Installation is easy, which is ideal for expensive operations, and the pipe can easily be pulled and moved from one location to another. Additionally, HDPE is resistant to abrasion and corrosion, which is critical when transporting chemicals, gases, and waste materials.

Detailed Images

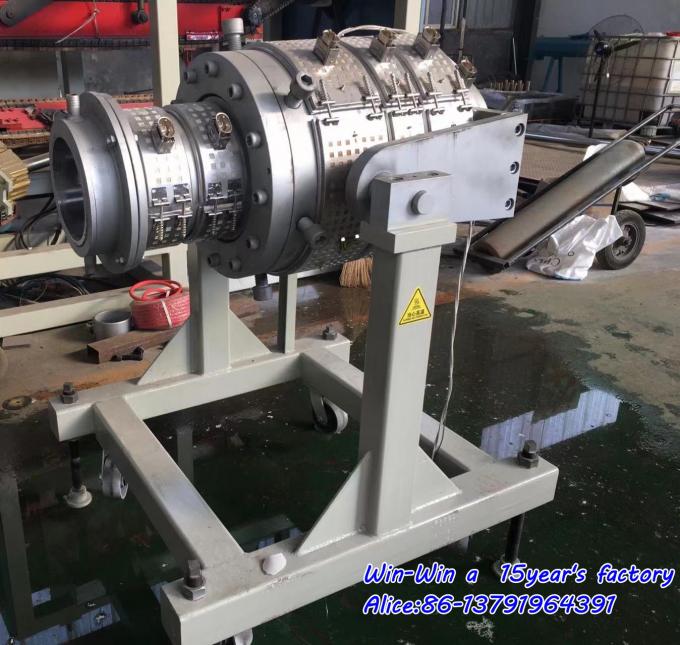

                                                                                                               Mould

                                       Include calibration sleeve Material: Made by 40Cr.

                                                       Diameter Spec: Ф160, 200, 250, 315 mm

                                                             Wall thickness:Providing by customer

                                                                                  QTY. of heating zone:14

                                                                                                                                                                                                                Heating power: 32KW

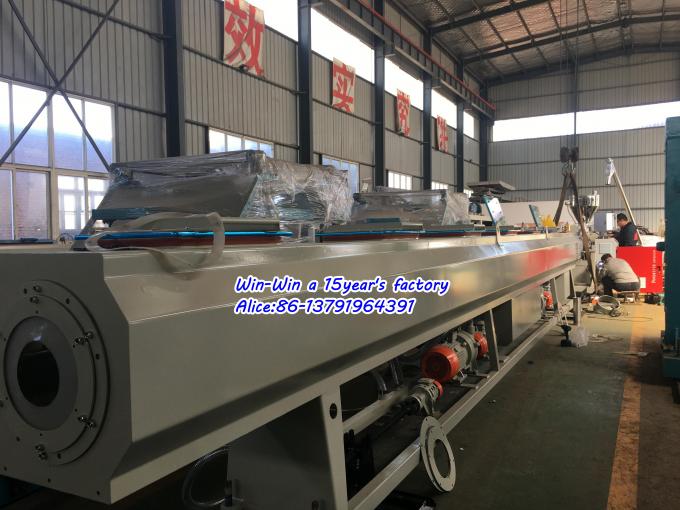

Vacuum  Calibration  Tank

Vacuum ,Water spray & Moving system

Length:      5600mm Vacuum pump power: 3 KW x 2

Water pump power:      4 KW x 2+ 3KW Tank

Material:      304 Stainless steel

Vacuum gauge:0.03-0.06Mpa

Spraying nozzle: ABS

                                                                                      Haul Off Machine

                                                                                        Four claws haul-off

                                                           Motor: 1.4×4KW Claw length:: 1800mm

                                                                                            Claw width: 80mm

                                                         Maximum Traction Speed: 3m/min Max

                                                                                     Traction Force:2000N

                                     Pneumatic Clamping: adopt anti-friction rubber bloc

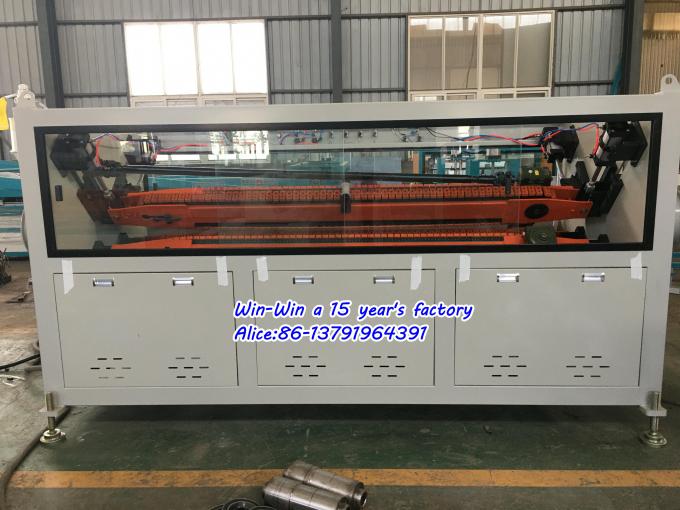

Planetary Cutter

Alloy Duralumin Clamping for Accurate cutting.

Scrap Collecting Device; Independent control system

Cutting Method: mechanical enter knife Diameter of saw: 130mm

Cutting Motor: 2.2KW Revolution motor: 1.5KW Cutting saw: steel

Dust collection motor power :0.75KW With

Machine List



No.	Machine	Qty.	Remark
1	feeder	1set	2.2kw

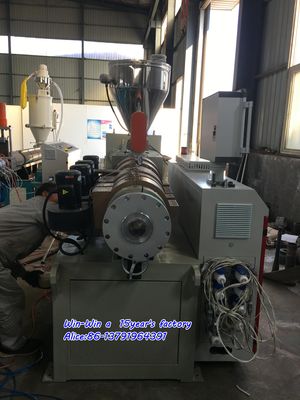

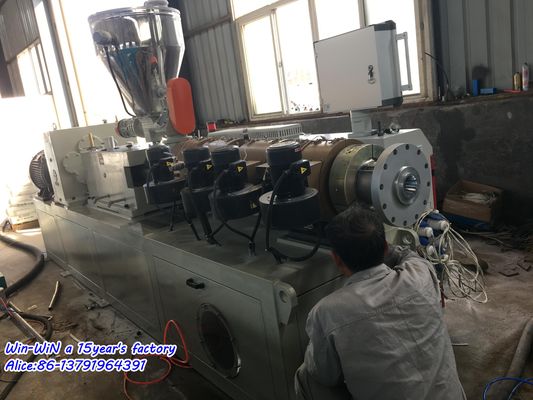

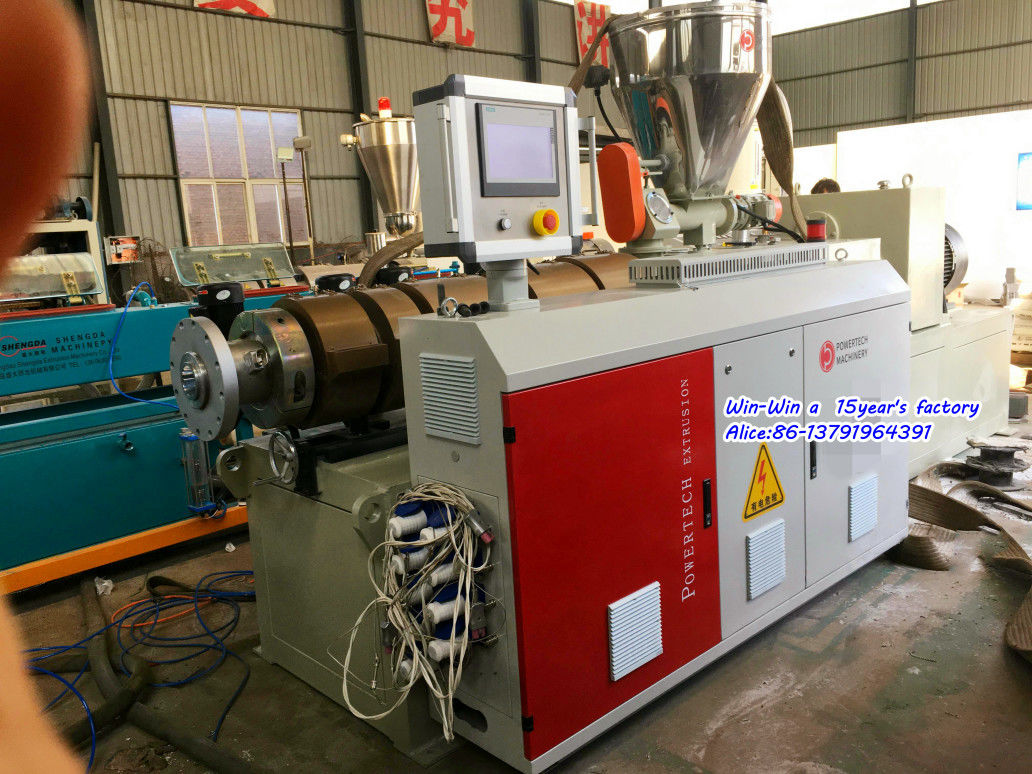

2	SJZ80/156 conical twin-screw extruder	1set	55kw
3	Mould	1set	Ф160, 200, 250, 315mm
4	Vacuum Calibration tank	1set	>=5600mm
5	Haul-off unit (four claws)	1set	Speed: 3m/min
6	Planetary Cutter (with dust collecting device)	1set	2.2kw
7	Tip table	1set	>=5000mm



PVC powder/PE /HDPE+ additive — mixing—material feeder—twin screw extruder—mould and calibrator—vacuum forming machine—spraying cooling machine—haul-off machine—cutting machine—discharge rack or pipe belling machine.

Welcome to contact us to find suitable plastic pipe machines for you.

FAQ:
1.Are you manufacturer or trading company?
We are manufacturer for plastic pipe machines, PVC profile machines and plastic recycling machines.
2.Why choose us?
We have 15 years experience for producing plastic machine. Experienced engineers and skilled workers with
good raw material to build the machines with heart and honesty to guarantee the performance of the machines.
3.Delivery time:
40-60 working days.
4.Payment terms:
30% of total amount should be paid by T/T as down payment, the
balance (70% of total amount) should be paid before delivery by T/T or irrevocable
L/C(at sight).
5.After-sales service:
Free Spare Parts ;
Field installation, commissioning and training ;
Field maintenance and repair service ;
Video/Online technical support.
6.Warranty:
12 month
7. How to send an inquiry?
Plase tell us what kind of plastic pipe and diameters you want to produce, we will prepare proposal for you.

You just tell me what machine you want,let us do the rest work:

1. Design and manufacture suitble machine for you.
2. Before delivery, we will test the machine until you are completely satisfied. (You can come to
our factory to inspect the running production line.)
3. Delivery.
4. We will provide after-sales service:
(1) Installation and commissioning;
(2) Training your workers;
(3) Maintenance and repair service ;
(4) Free Spare Parts ;
(5) Video/Online technical support.
