PP PE PVC Pipe Making Machine Production Line Single or Double Screw Corrugated Pipe Extrusion Line

Certification
China Qingdao Win Win Machinery Co.Ltd certification
China Qingdao Win Win Machinery Co.Ltd certification
I'm Online Chat Now

PP PE PVC Pipe Making Machine Production Line Single or Double Screw Corrugated Pipe Extrusion Line

PP PE PVC Pipe Making Machine Production Line Single or Double Screw Corrugated Pipe Extrusion Line
PP PE PVC Pipe Making Machine Production Line Single or Double Screw Corrugated Pipe Extrusion Line
PP PE PVC Pipe Making Machine Production Line Single or Double Screw Corrugated Pipe Extrusion Line PP PE PVC Pipe Making Machine Production Line Single or Double Screw Corrugated Pipe Extrusion Line PP PE PVC Pipe Making Machine Production Line Single or Double Screw Corrugated Pipe Extrusion Line PP PE PVC Pipe Making Machine Production Line Single or Double Screw Corrugated Pipe Extrusion Line PP PE PVC Pipe Making Machine Production Line Single or Double Screw Corrugated Pipe Extrusion Line

Large Image :  PP PE PVC Pipe Making Machine Production Line Single or Double Screw Corrugated Pipe Extrusion Line

Product Details:
Place of Origin: China
Brand Name: Win-Win
Certification: CE
Model Number: SJ
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Packaging Details: Stretch Film+Wood Conton
Delivery Time: 45workdays
Payment Terms: T/T
Supply Ability: 50 sets/month

PP PE PVC Pipe Making Machine Production Line Single or Double Screw Corrugated Pipe Extrusion Line

Description
Plastic Processed: PP/PE/EVA/PA/PVC Screw Design: Single/double Screw
Qty Of Modules: According To The Model Motor Power: 30kw
Voltage:: 3P/380V/50Hz Or Customized Output Capacity:: 80-100kg/h
High Light:

PP Corrugated Pipe Making Machine

,

Double Wall PVC Pipe Making Machine

,

Water Supply Corrugated Pipe Extrusion Line

PP/PE/PVC Corrugated Pipe Making Machine For Water Supply Single or Double Wall Corrugated Production Extrusion Line
Product Description:

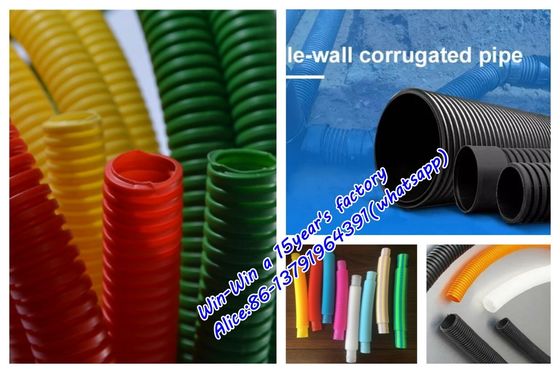

This pipe production line is mainly used for producing  HDPE/LDPE/PE pipe. The pipe has some excellent features such as heating resistant, aging resistant, high mechanical strength, environmental stress cracks resistant, good creep resistant, etc. It is a preferred gas conduit for ductwork systems between city and its suburb, water supply in city.

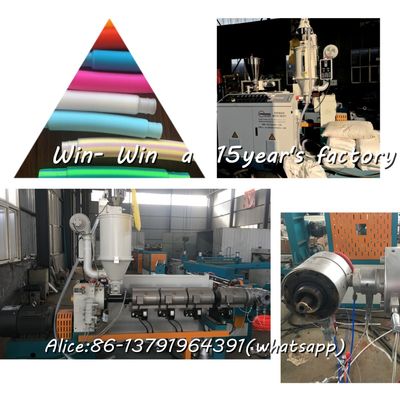

Constituent of plastic making machine

PP PE PVC Pipe Making Machine Production Line Single or Double Screw Corrugated Pipe Extrusion Line 0

PP PE PVC Pipe Making Machine Production Line Single or Double Screw Corrugated Pipe Extrusion Line 1

Electrical parts: ABB inverter, Siemens contactor, RKC thermo controllers etc,we maily use Delta/ABB PLC system,It is optional for customer's need.

PP PE PVC Pipe Making Machine Production Line Single or Double Screw Corrugated Pipe Extrusion Line 2

 Distributed spiral composite extrusion die-head ensures the melting pressure and flux even and stable, the surface of pipe smooth and glossy.

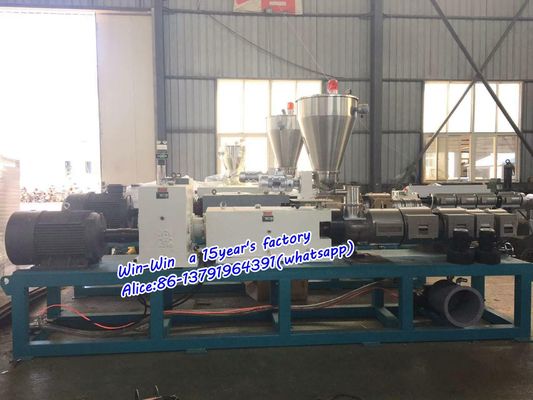

high efficient screw, hard gear surface gearbox, uniformed raw material heating, good plasticization, high extrusion speed.

PP PE PVC Pipe Making Machine Production Line Single or Double Screw Corrugated Pipe Extrusion Line 3

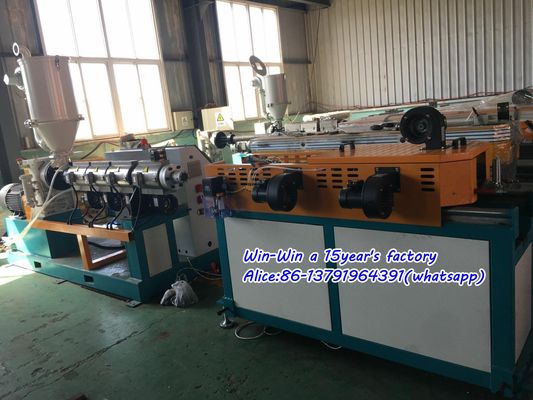

Forming modules: it is made of hard steel, dealed with a rigorous use of CNC finishing materials produced to ensure the            hardness and precision of the molding modules. These modules are easy and convenient to change.

Die Head:Material:40Cr,the surface of die is chromeplated,anti-corrosive.

Mould Blocks :It is 40Cr materials ,could be two cavities or single cavity.



PP PE PVC Pipe Making Machine Production Line Single or Double Screw Corrugated Pipe Extrusion Line 4

Vacuum Calibration And Spray Water Cooling Tank :Made of stainless steel ensures precise calibration and fast cooling.,It has water pump and vacuum pump,the thickness of the wall is 2-4mm.

-PP PE PVC Pipe Making Machine Production Line Single or Double Screw Corrugated Pipe Extrusion Line 5

Haul- Off Machine : It dopts multi claws haul-off unit, speed adjusted by frequency inverter,For different pipe size and different speed requirement ,we develop kinds of haul-off machine accordingly,Optional to choose muti-caterpillar hual-off machine with wide speed range.

PP PE PVC Pipe Making Machine Production Line Single or Double Screw Corrugated Pipe Extrusion Line 6

Coiler :Single position or double position with torque motors,40 type single/double station coiler,63type single/double station coiler,110type single station coiler.we offer different solutions according different requirement.Sinments PLC automatic operation mode,It is controlled by inverter system,suitable for corrugated hose winding.



Technical parameters:

1. Normal speed

Pipe diameter(mm) Extruder model Output(kg/h) Total power(kw) Module No.(pairs)  speed(m/min)
Φ6-12 SJ-45 40-60 16 42 6-12
Φ16-32 SJ-50 50-70 23 48 6-12
Φ20-63 SJ-65 60-100 38 56 4-8
Φ50-80 SJ-75 70-130 64 72 3-8

2. High speed

Pipe diameter(mm) Extruder model Output(kg/h) Total power(kw) Module No(pairs)  speed(m/min)
Φ7-14 SJ45/SJ50 40-80 25 70 10-20
Φ16-58 SJ65/SJ75 60-120 46 74 10-25

FAQ:
1.Are you manufacturer or trading company?
We are manufacturer for plastic pipe machines, PVC profile machines and plastic recycling machines.
2.Why choose us?
We have 15 years experience for producing plastic machine. Experienced engineers and skilled workers with
good raw material to build the machines with heart and honesty to guarantee the performance of the machines.
3.Delivery time:
40-60 working days.
4.Payment terms:
30% of total amount should be paid by T/T as down payment, the
balance (70% of total amount) should be paid before delivery by T/T or irrevocable
L/C(at sight).
5.After-sales service:
Free Spare Parts ;
Field installation, commissioning and training ;
Field maintenance and repair service ;
Video/Online technical support.
6.Warranty:
12 month
7. How to send an inquiry?
Plase tell us what kind of plastic pipe and diameters you want to produce, we will prepare proposal for you.

You just tell me what machine you want,let us do the rest work:

1. Design and manufacture suitble machine for you.
2. Before delivery, we will test the machine until you are completely satisfied. (You can come to
our factory to inspect the running production line.)
3. Delivery.
4. We will provide after-sales service:
(1) Installation and commissioning;
(2) Training your workers;
(3) Maintenance and repair service ;
(4) Free Spare Parts ;
(5) Video/Online technical support.
