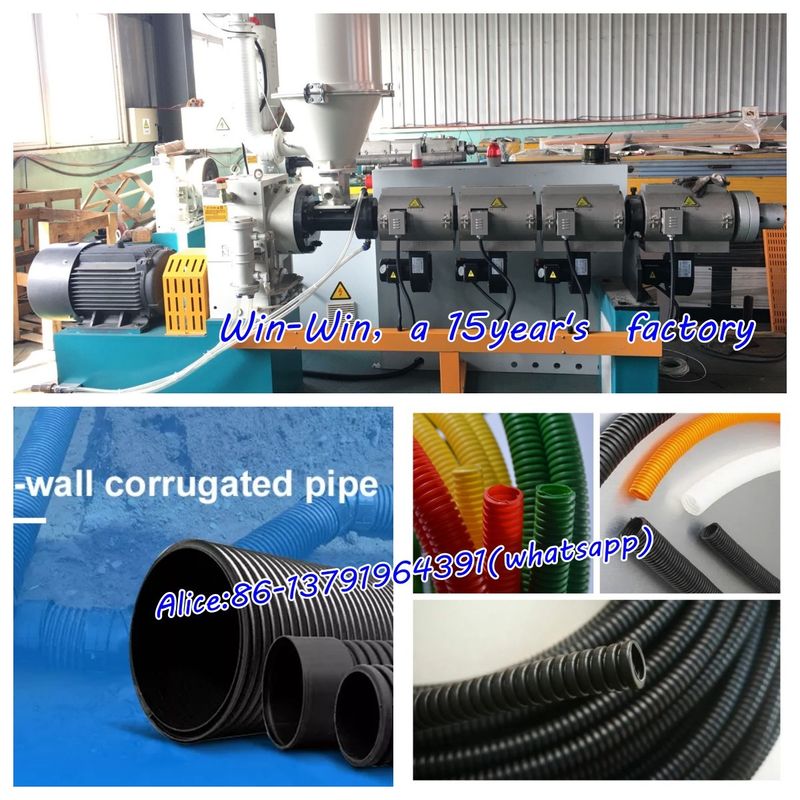

Corrugated Plastic PVC PP PE Pipe Extrusion Machine Single Wall

Plastic Corrugated PP/PE Pipe/Tube Extrusion Making Machine Wholesale Plastic PVC PP PE Single Wall Corrugated Pipe

     Plastic corrugated pipe is very widely used in our daily life, It can be used such as threading pipe, drain pipe, pipes, Shisha pipe, shrinking pipe and so on.

  Win-Win takes high technology and we can provide you the high-speed single-wall corrugated pipe production line, to make small diameter pipe with good stability, fast forming speed, long service life, convenient operation and convenient module replacement.

   In the production of small diameter pipe and requirements under the condition of high output, especially shows the Advantages of using dual-strand extrusion. The characteristics of using dual-strand downstream equipment is withTwo sets of independent control circuit, the speed of each pipeline can be adjusted respectively, and can evenProduce differentdiameter of the pipe at the same time. Four strand extrusion line is suitable for the <=32 mm pipeWith high-speed production, unilateral pipe speed up to 25 m/min. This extrusion line adopts special screw andMould design, materials uniform plasticizing, fast production speed, low energy consumption. Control is easy to operate,Educe the technical requirements of the operation of operating workers. And effectively save the workshop space.

Main Features of The Machine:
1.Suitable to U-PVC,C-PVC,M-PVC ,PE, PPR,PP,HDPE,LDPE pipe extrusion.
2.Plastic corrugated pipe machine/small diameter single wall corrugated pipe line/pvc corrugated pipe machine with price various diameter and wall thickness, from 10-50mm.
3.adoped the Simens, ABB, famous brand electric components and high quality extruder alloy screw and barrel.

4.Supply technical service, formula guide and staple raw material purchase.

More Details of Our Machines:

  The  Electiric Box

    Scimens motor/ABB inverter/Omron temperature control/Schneider Conactor/Air swith

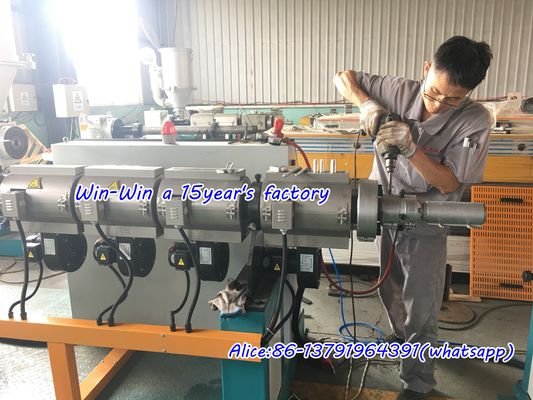

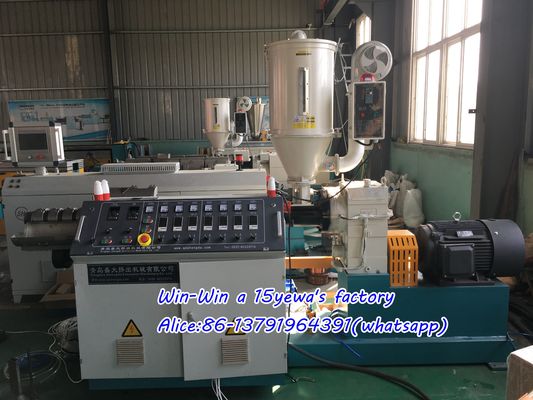

Screw and Barrel:

     Material of screw and barrel: 38CrMoAlA, nitrogen quenched (0.4-0.7mm ), Rigidity of screw: >740 , Rigidity of barel >940, the surface of screw is chromeplated Feeding bush with water cooling system.The die head is made by 40Cr moulds materials.Using mica heating way

Screw diameter: 65mm
L/D Ratio: 33:1
Screw&barrel material: 38CrMoAlA
Motor: 45kw
Barrel heating method:Cast-alumium heating, with stainless steel protection
Output:130-200 kg/h
Temperature Control: Ormon
Contactor: Dexili

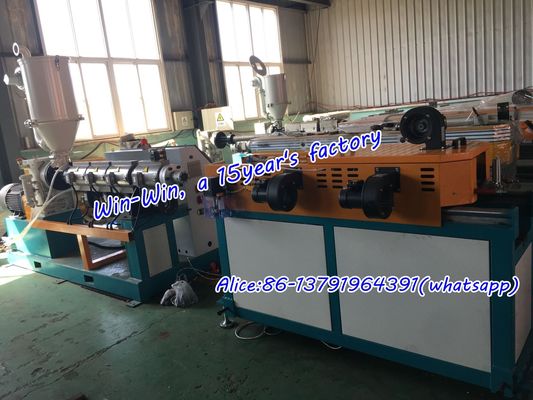

Corrugated Pipe Forming Machine
   Motor: 3kw
   Production speed:20-25m/min
   Quantity of shaping mold:36-72 pairs per set
   Cooling method:Water cooling

Pipe Vacuum Tank

     It is adopted stainless steel materials, the thickness is 4mm.high quality vacuum and water pumb. There is flow stabilization system for better pipe surfaceWater cooling tank it is stainless steel materials. It could be water leaching cooling way or water spray cooling way according pipe diameters and extrusion speed.

Hual Off Units

    It could be rubber belt or rubber block clamping way.2 claw, 3 claw, 4 claw ,6 claw, 8 claw, 12 claw made according pipe diameters.It could be double wheel or single wheel winding according pipe diameters. Always 10-40mm will use double wheel like the photo.

Double Winder

  Inner diameter of coil(mm):can be made as your request Outside diamter of coil(mm):can be made as your request

  Working method: pneumati

Pipe Machine Capacity And Relevant Parameters Of The Pipe Machines:

Diameter range(mm)	Extruder model	Max.Capacity(kg/h)	Max.lineal speed(m/min.)	Extrusion power(KW)
20-63	SJ65/33	220	12	55
20-63	SJ60/38	460	30	110
20-63Dual	SJ60/38	460	15*2	110
20-110	SJ65/38	220	12	55
20-110	SJ60/38	460	30	110
20-160	SJ60/38	460	15	110
50-250	SJ75/38	600	12	160
110-450	SJ90/38	850	8	250
250-630	SJ90/38	1050	4	280
500-800	SJ120/38	1300	2	355
710-1200	SJ75/38 SJ90/38	1450	1	160 250
710-1200	SJ90/38 SJ90/38	1900	0.6	280 280

FAQ:
1.Are you manufacturer or trading company?
We are manufacturer for plastic pipe machines, PVC profile machines and plastic recycling machines.
2.Why choose us?
We have 15 years experience for producing plastic machine. Experienced engineers and skilled workers with
good raw material to build the machines with heart and honesty to guarantee the performance of the machines.
3.Delivery time:
40-60 working days.
4.Payment terms:
30% of total amount should be paid by T/T as down payment, the
balance (70% of total amount) should be paid before delivery by T/T or irrevocable
L/C(at sight).
5.After-sales service:
Free Spare Parts ;
Field installation, commissioning and training ;
Field maintenance and repair service ;
Video/Online technical support.
6.Warranty:
12 month
7. How to send an inquiry?
Plase tell us what kind of plastic pipe and diameters you want to produce, we will prepare proposal for you.

You just tell me what machine you want,let us do the rest work:

1. Design and manufacture suitble machine for you.
2. Before delivery, we will test the machine until you are completely satisfied. (You can come to
our factory to inspect the running production line.)
3. Delivery.
4. We will provide after-sales service:
(1) Installation and commissioning;
(2) Training your workers;
(3) Maintenance and repair service ;
(4) Free Spare Parts ;
(5) Video/Online technical support.
