Product Details:
|
| Raw Material: | PVC Resin+Additives | Screw Material: | 38crmoala |
|---|---|---|---|
| Output: | 250-350kg/H | Extruder Type: | Conical Twi/Single Screw |
| Specification: | It Depends | Machine Color: | Customized |
| High Light: | HDPE Pipe Double Screw Extrusion Line,PPR Tube Double Screw Extrusion Line,350kg/H Single Screw Extrusion Line |
||

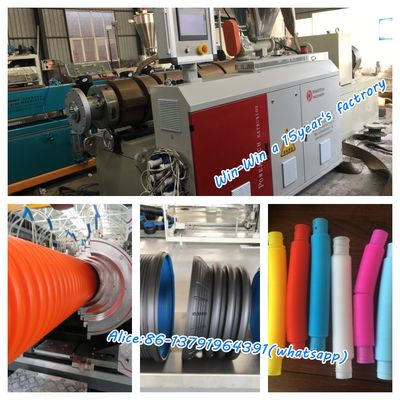

Features of Win-Win Corrugated PIpe Extrusion Line:
- Automatic feeder with Alarming on lack ing of material.
- Harden treated screw and barrels for longer life span and durability.
- The complete extrusion line runs full-automatically.
- Pressure water-cooling for mould blocks greatly increase the production speed; the maximum speed is 6.24m/min.
- Efficient vacuum system for forming perfect pipes.
- Mould block temperature control system helps to optimize the pipe quality both appearance and inside.
- Easy and quick changeover between different sizes of moulds.
- Pipe Corrugator and extruders are synchronously controlled.
- Sawdust-free cutting, a hydraulic feed device with high precision can ensure flat and smooth cross-section of the pipes.
- The unloading device is equipped with automatic pipe weighting system.
Higher output, lower production cost
The mould blocks are continuously cooled with pressure water cooling system to achieve higher cooling efficiency and higher production speed of the corrugated pipe machine, so as to lower pipe production cost.
Flexible production organization improve equipment utilization and increase overall capacity of the factory
The moulds are compatible between different sizes of corrugators; it makes production organization more flexible. All the corrugated pipe production lines can be utilized more sufficiently to increase the overall capacity of the factory.
Quick and easier changeover, less down-time and higher production efficiency.
Innovative rapid assembly of mould blocks simplifies the operation of changing mould blocks and greatly shortens the down time of corrugated pipe machines.
Stable, Reliable and High Durability
1. Excellent mechanical structure design is the premise of stable running.
2. Manufactured with world-class machine tools to guarantee high accurate.
3. Implement strictly high-grade quality standards with international advanced quality testing apparatus.
4. Select high-quality suppliers around the world
Higher Pipe Quality
1. Mould block temperature control system helps to optimize the pipe quality both appearance and inside.
2. Stable vacuum molding technology and unique double-layer socket technique ensure that the inner layer and outer layer stick together perfectly.
Material Saving (lower pipe weight)
Win-Win has installed 200+ sets of corrugated pipe production lines around the world, and in last over 15years, Win-Win has been paying close attention to customers' feedback and market demand, constantly optimize pipe design so that customers can produce high-quality corrugated pipes with less material.
Perfect In-line Double-layer Socket
We can produce perfect in-line double-layer socket whose two layers are stick together closely from the starting point. Win-Win has always been leading the technological development of corrugated pipe machine in China and has become one of mainstream suppliers of corrugated pipe machine in the international market.
1. The high-speed corrugated pipe production line with pressure water cooling system is the pioneer of high-speed corrugated pipe machine in China.
2. The company in China that successfully launched a corrugator with a mould block parking station.
3. The corrugated pipe machines can cover from OD50mm to OD2400mm.
4. The largest production line that can produce OD1800mm double-wall corrugated pipes
5. More than 200 sets of corrugated pipe production lines have been installed in more than 30 countries around the world.
6. The customer repeat-purchasing rate is as high as 90%.
Main technical parameter:
|
Diameter(mm)
|
16-40dual | 20-63dual | 20-63 | 50-160 | 63-200 | 160-315 | 315-630 |
|
Extruder model
|
SJ51/105 | SJ65/132 | SJ51/105 | SJ65/132 | SJ65/132 | SJ80/156 | SJ92/188 |
|
Extruder power
|
18.5AC | 37AC | 18.5AC | 37AC | 37AC | 55AC | 110DC |
|
Max lineal speed
|
10 | 15 | 15 | 8 | 3.5 | 3 | 1.2 |
| Max capacity | 120 | 250 | 120 | 250 | 250 | 350 |
800
|
FAQ:
1.Are you manufacturer or trading company?
We are manufacturer for plastic pipe machines, PVC profile machines and plastic recycling machines.
2.Why choose us?
We have 15 years experience for producing plastic machine. Experienced engineers and skilled workers with
good raw material to build the machines with heart and honesty to guarantee the performance of the machines.
3.Delivery time:
40-60 working days.
4.Payment terms:
30% of total amount should be paid by T/T as down payment, the
balance (70% of total amount) should be paid before delivery by T/T or irrevocable
L/C(at sight).
5.After-sales service:
Free Spare Parts ;
Field installation, commissioning and training ;
Field maintenance and repair service ;
Video/Online technical support.
6.Warranty:
12 month
7. How to send an inquiry?
Plase tell us what kind of plastic pipe and diameters you want to produce, we will prepare proposal for you.
