Plastic HDPE PP Pipe Single Screw Plastic Extrusion Machine Extrusion Line

Plastic HDPE PP Pipe Single Screw Plastic Extrusion Machine Extrusion Line
Plastic HDPE PP Pipe Single Screw Plastic Extrusion Machine Extrusion Line
Plastic HDPE PP Pipe Single Screw Plastic Extrusion Machine Extrusion Line Plastic HDPE PP Pipe Single Screw Plastic Extrusion Machine Extrusion Line Plastic HDPE PP Pipe Single Screw Plastic Extrusion Machine Extrusion Line

Large Image :  Plastic HDPE PP Pipe Single Screw Plastic Extrusion Machine Extrusion Line

Product Details:
Place of Origin: China
Brand Name: Win Win
Certification: CE
Model Number: SJ65/30
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Delivery Time: 45 Workdays
Payment Terms: T/T
Supply Ability: 50 sets/mouth
Contact Now

Plastic HDPE PP Pipe Single Screw Plastic Extrusion Machine Extrusion Line

Description
Product Type: HDPE PE PP Screw No.: Single-screw
Pipe Diameter: 20-63mm Customized: Customized
Usage: Plastic Extrusion Warranty: 1 Year
High Light:

HDPE Single Screw Plastic Extrusion Machine

,

Dia20mm Plastic Extrusion Machine

Plastic HDPE PP Pipe Single Screw Plastic Extrusion Machine Extruder Extrusion Line

Qingdao Win Win Machinery Co., Ltd. devoloped a new type of pipe production line for PE, PP and other polyolefin pipes, all models with advanced PLC/PCC modular intelligent control system, in order to realize the whole production line automation and real-time dta recording and closed-loop control, the production line has some high yield, wide adaption of raw materials, sustained and stable production of high quality products.

Technical specifications for PE/HDPE Pipe Production Line
Model Pipe Spec(mm) Single screw extruder Max output(kg/h) Total power(kw)
SW63-PE Φ20-Φ63 SJ 65/38 250-300 75/90
SW110-PE Φ63-Φ110 SJ 65/38 250-300 90
SW250-PE Φ75-Φ250 SJ 75/38 500-550 185
SW450-PE Φ160-Φ450 SJ 90/38 700-750 250
SW630-PE Φ315-Φ630 SJ 120/33 900-1100 280



PRODUCT CONFIGURATION

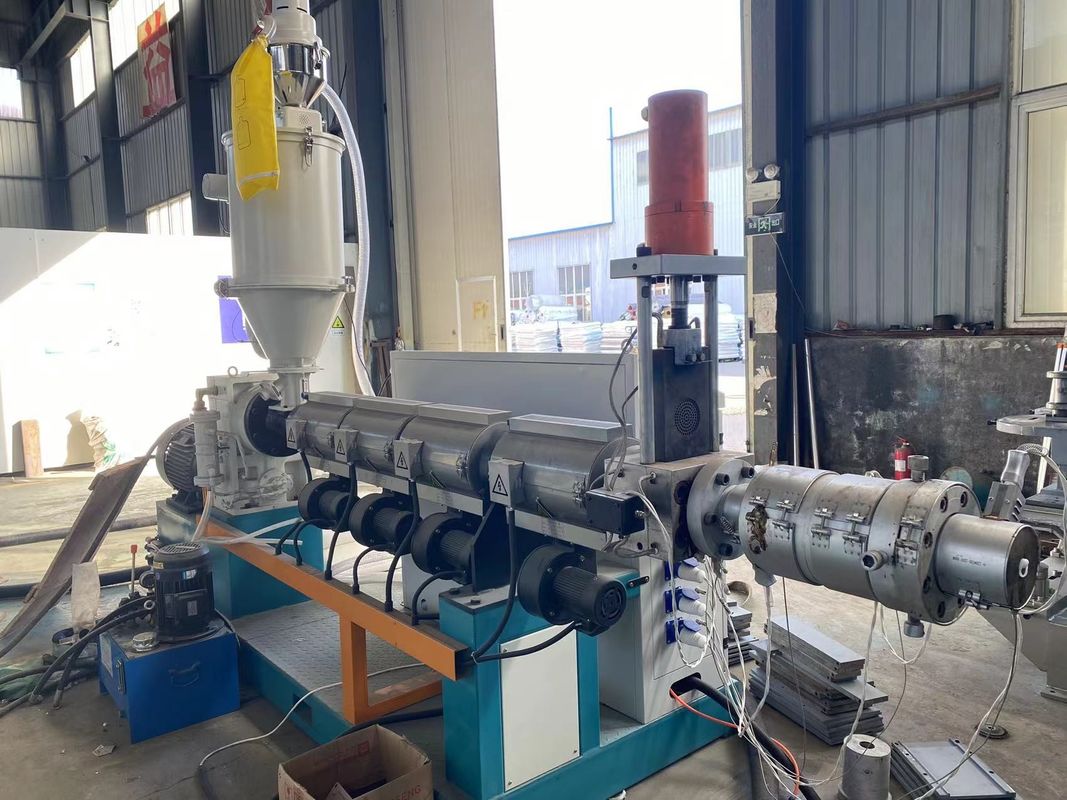

PE/PP pipe extruder

PE pipe extrusion line provides the pipes for feed-water piping, like Tap-water, hot water supply pipes for civil building, farmland irrigation, ground source heat pump pipeline, siphon rainwater drainage system, etc.

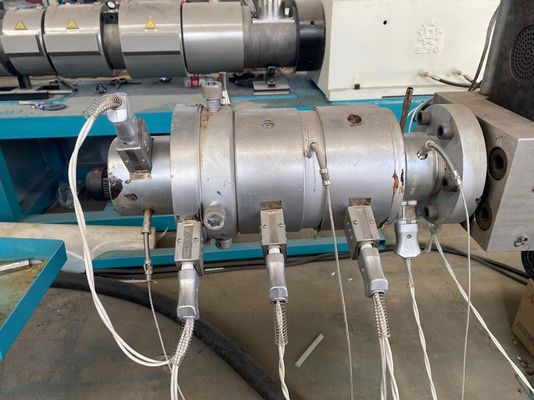

Mould

Different kinds of diameter the mould is different. Customized mould is acceptable.
Can do one strand or two strand output

Calibration Table

Vacuum Diameter Table
There are two kinds of cooling:
1. Cooled by submerged in water
2. Cooled by sprayed water

Haul-Off machine

There are two kinds of Haul-Off machine:
1.Multi-claw Haul-Off machine (for large size pipe)
2.Caterpillar Haul-Off machine(for small size pipe)
Electrical components were adopted famous brand making the device running stably and efficiently.

Cutting machine

There are two kinds of cutting machine for choosing:
1. Saw Blade cutting machine
2. Planetary cutting machine
1.Planetary cutting table no noisy and dust-free. Double Control Length system guaranteed cutting accuracy.

Stacker
The profiles is collected easily. Labor force and profiles wastage are decreased.



Plastic HDPE PP Pipe Single Screw Plastic Extrusion Machine Extrusion Line 0



Plastic HDPE PP Pipe Single Screw Plastic Extrusion Machine Extrusion Line 1



Company Profile

 Plastic HDPE PP Pipe Single Screw Plastic Extrusion Machine Extrusion Line 2     Plastic HDPE PP Pipe Single Screw Plastic Extrusion Machine Extrusion Line 3​



Qingdao Win Win Machinery Co., Ltd. is a new type of high-tech enterprise specializing in R & D and production of extrusion machine. The company's main products -- plastic pipe extrusion complete production line.
Our production technology of single / double wall corrugated pipe machine, carbon spiral pipe machine and solid wall pipe machine has always been in the leading position in the industry.
If you need plastic extrusion equipment, please feel free to contact me!



Packaging & Shipping



Plastic HDPE PP Pipe Single Screw Plastic Extrusion Machine Extrusion Line 4Plastic HDPE PP Pipe Single Screw Plastic Extrusion Machine Extrusion Line 5



Li Bing

Tel:86-158 4530 5907 (Wechat/skype/whatsapp)

E-mail: libing@qdwinwin.cn

Web1: www.qdwinwin.cn

Web2: www.corrugatedpipeextrusionline.com

Address: Jiaoxi Industrial Park, Jiaozhou, Qingdao, Shandong, China
