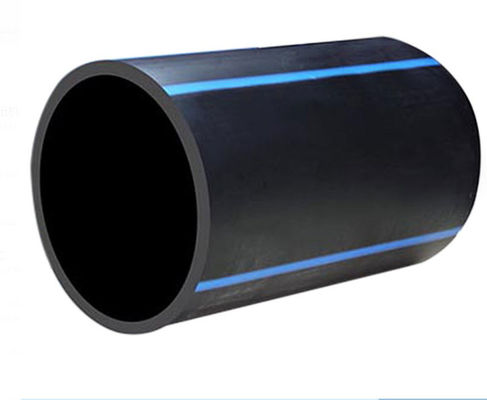

Electric Conduit Wire Gas HDPE Pipe Extrusion Line Single Screw

Description of Plastic PE PPR Water Supply Drainage Electric Conduit Wire Gas Pipe Extruder HDPE Pipe Production Line

SJ-75×33 High speed single screw extruder
With SIEMENS motor, Guomao gearbox, and Zhoushan screw/barrel, which ensures good plastify capacity.
With vaccum feeding equipment.

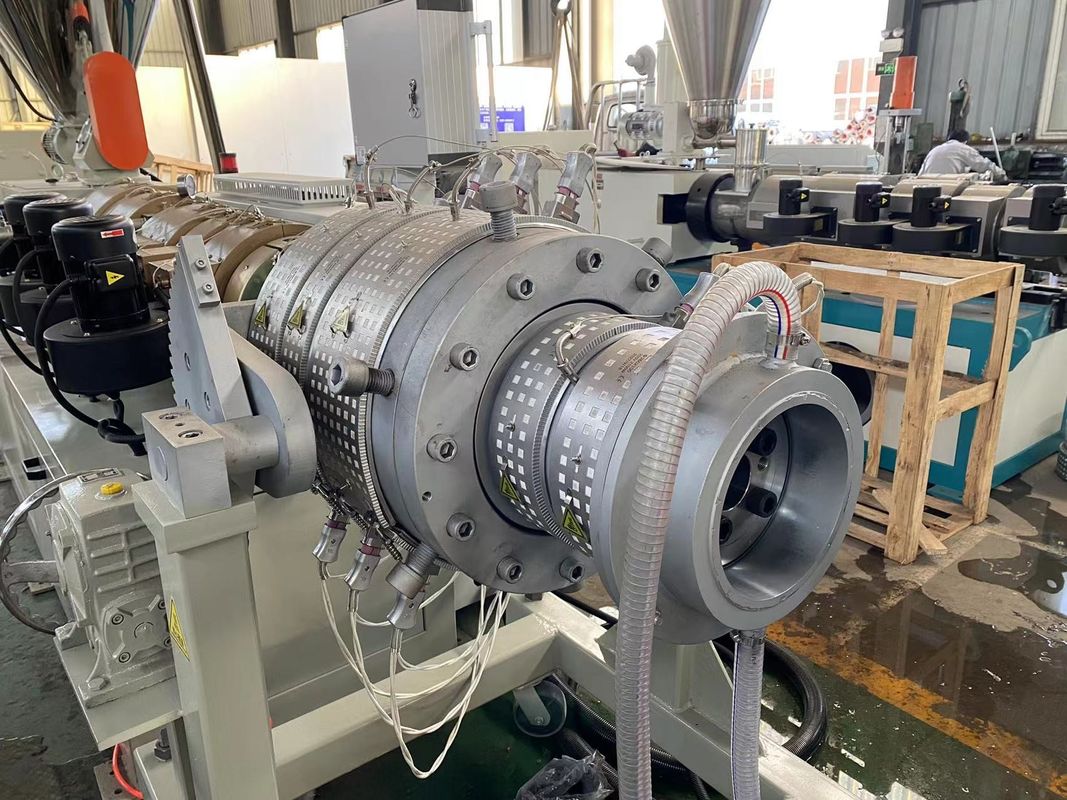

HDPE Pipe Mold
Own designed Spiral feeding system,ensure the melting liquid pressure, even flow, no jamming. Finished pipes smooth, high density, no flow stains.

Vacuum calibration cooling tank
100% SUS304
With strong vaccum pump and water pump, give hot pipe enough cooling effect.

Spray cooling tank
100% SUS304

Haul Off Equipment
Own designed traction structure,could save electric consumption,
and easy to operate & maintainance.
More importantly, stronger traction ability.

Cutting Machine
With SIEMENS PLC , OMRON encoder
Ensure exact cutting length.
Smooth cutting surface and better cutting speed than before.

Plane pipe cutter
With SIEMENS PLC , OMRON encoder
Ensure exact cutting length.
Smooth cutting surface and better cutting speed than before.

Online wall thickness controlling system and gravimetric doser for optional.

HDPE/PPR Pipe Production Line Machine Characteristics

1. The optimum spiral structure feeding throat highly improves the output of extruder

2. Accurate temperature control system ensures materials melting performance

3. Unique screw design achieves better plasticizing and high quality products

4. Precisely designed gearbox with a high torsion guarantees stable running

5. "H" shape frame to decrease vibrating of extruder

6. Advanced PLC operation system realizes synchronization and automation

7. Adopt automatic water temperature & level control and special independent filters on both vacuum and cooling tanks

8. Offer stable haul-off unit with 2-12 caterpillars

9. Provide saw & chip-free cutting options

10. Low energy consumption, excellent performance, and easy maintenance

Company Profile



      ​

Qingdao Win Win Machinery Co., Ltd. is a new type of high-tech enterprise specializing in R & D and production of extrusion machine. The company's main products -- plastic pipe extrusion complete production line.
Our production technology of single / double wall corrugated pipe machine, carbon spiral pipe machine and solid wall pipe machine has always been in the leading position in the industry.
If you need plastic extrusion equipment, please feel free to contact me!
