PE PVC Corrugated Hose Production Line PP Single Wall Pipe Making Machine

PE PVC Corrugated Hose Production Line PP Single Wall Pipe Making Machine
PE PVC Corrugated Hose Production Line PP Single Wall Pipe Making Machine PE PVC Corrugated Hose Production Line PP Single Wall Pipe Making Machine PE PVC Corrugated Hose Production Line PP Single Wall Pipe Making Machine PE PVC Corrugated Hose Production Line PP Single Wall Pipe Making Machine

Large Image :  PE PVC Corrugated Hose Production Line PP Single Wall Pipe Making Machine

Product Details:
Place of Origin: China
Brand Name: Win-Win
Certification: CE
Model Number: SJQZ
Payment & Shipping Terms:
Minimum Order Quantity: 1SET
Packaging Details: stretch film,steel pallet packing
Delivery Time: 45 work days
Payment Terms: T/T, Western Union
Supply Ability: 50Sets/year
Contact Now

PE PVC Corrugated Hose Production Line PP Single Wall Pipe Making Machine

Description
Raw Material:: PE PVC Screw Material:: 38CrMoALA
Voltage:: 380V 50HZ 3Phase(Customized) Power (kW):: 185
Showroom Location:: Italy, Viet Nam, Philippines, Russia Control System:: PLC
Speed:: 1.2-4.5m/min Forming Type:: Vacuum
High Light:

PVC Corrugated Hose Production Line

,

PLC Corrugated Hose Production Line

,

3P PP Pipe Making Machine

    Hot Selling Products PE PVC Corrugated Hose Production Line PP Single Wall Pipe Making Machine Equipment Manufacturer
     PVC PE Single Wall Production Line Plastic Tube Extruder Making Machine Single Wall Corrugated Pipe Extrusion Line  Introduction:
It consists of automatic feeding system/single screw extruder/die head/forming machine /winder.
     It is mainly produce PE/PP/PVC single corrugated pipe. The PE/PP/PVC single corrugated pipe is mainly used in the golf course, playgrounds as light load of drainage, floods; Interior decoration cable casing; Automotive wire casing;
Machine's Features:
    Plastic single-wall corrugated pipe production line developed by our company adopts gears to run moulds and templates so as to realize water circulating cooling and air cooling of the products, which ensures high-speed molding, even corrugation, smooth inner and outer pipe wall.
-----Production speed is 15m/min to 25m/min.
-----The forming machine has 38 pairs to 72 pairs forming block.
Machine parts list:

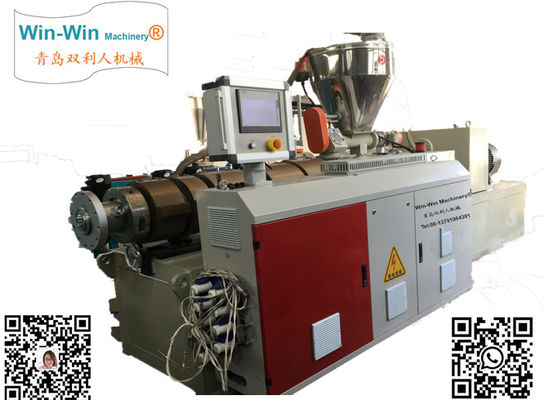

1. Single screw extruder: SJ-45/30, 65/30

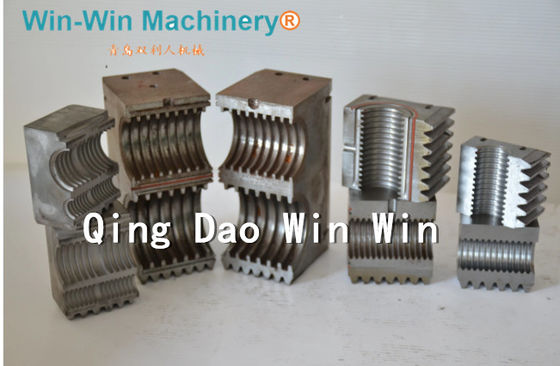

2. Corruated pipe mold: 50-72pairs

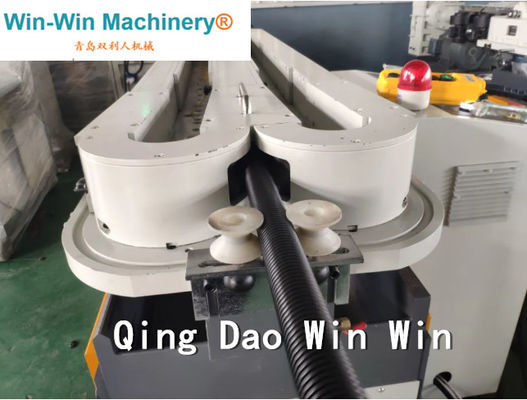

3. Corrugated pipe forming machine
4. Double station winder
5. Electric control cabinet.

Normal speed corrugated pipe machine

4.5-110mm corrugated pipe making machine

This Plastic Single Wall Corrugated Pipe extrusion machine made by Qingda Win Wim Plastic Machinery Company.It is used to produce PP, PE, PVC, EVA, PA and other material single-wall corrugated pipes continuously.
Plastic single wall corrugated pipes have features of strong thermo-stability, corrosion resistance, abrasion resistance, high intensity, good flexibility, etc.
Single wall corrugated pipes are widely applied in many fields such as electrical thread-passing pipes, circuit of machine tool,protective pipe of lamps, water pipes in air conditioner, washing machine, bathroom, etc.
Pipe diameter range
4.5mm-12mm
9mm-32mm
12mm-50mm
50mm-110mm
Model of extruder
SJ45
SJ50
SJ65
SJ65
Production capacity
20-30kg/h
40-50kg/h
60-70kg/h
70-90kg/h
Power of extruder
7.5kw
15kw
30kw
37kw
Power of forming machine
1.1kw
1.5kw
4kw
4kw
Pairs of modules
42pairs
50pairs
50pairs
70pairs
Cooling mode
Wind&Water cooling
Wind&Water cooling
Wind&Water cooling
Wind&Water cooling
Production speed
6-10m/min
8-12m/min
8-12m/min
2-6m/min

High speed single wall corrugated pipe making machine

  GSDBGZ high speed plastic pipe extruder machine 4.5-53mm single wall corrugated pipe production line is developed on the basis of our original single-wall corrugated pipe machine.

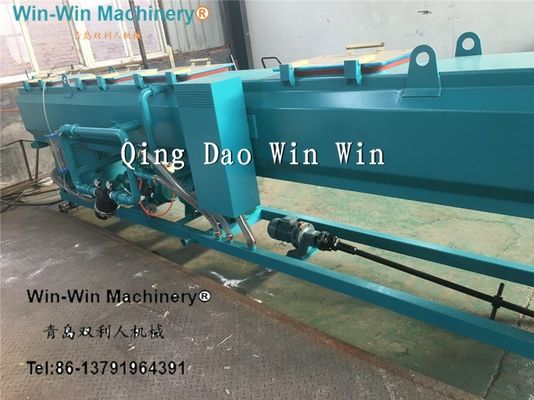

The molds are moved by gear on the runway. It is equipped with specially designed water cooling sealing system, and the
lubrication oil can be injected automatically.
In the forming machine, for small sizes mould, it can be set with two mould chambers which can make two different sizes of pipes only by adjusting the height of forming machine automatically.
All these features improve the production speed of single wall corrugated pipes to a great extent, which can reach 20-25m/min.
Besides, the production line is equipped with pre-stress eliminating cooling device, automatic tapping machine in production line and automatic coiling machine, and it is especially suitable for the production of car harness corrugated pipes.

Pipe diameter range

Pipe diameter range

9mm-50mm

9mm-53mm
(Pipe with joint)

Model of extruder

SJ45B

SJ65B

SJ65B

Production capacity

20-30kg/h

60-80kg/h

70-90kg/h

Power of extruder

7.5KW

30KW

37KW

Power of forming machine

1.1KW

4KW

4KW

Pairs of modules

63 pairs

72pairs

72pairs

Cooling mode

water cooling

water cooling

water cooling

Production speed

10-20m/min

20-25m/min

20-25m/min


PE PVC Corrugated Hose Production Line PP Single Wall Pipe Making Machine 0

PE PVC Corrugated Hose Production Line PP Single Wall Pipe Making Machine 1

PE PVC Corrugated Hose Production Line PP Single Wall Pipe Making Machine 2

PE PVC Corrugated Hose Production Line PP Single Wall Pipe Making Machine 3

PE PVC Corrugated Hose Production Line PP Single Wall Pipe Making Machine 4


PE PVC Corrugated Hose Production Line PP Single Wall Pipe Making Machine 5

PE PVC Corrugated Hose Production Line PP Single Wall Pipe Making Machine 6


PE PVC Corrugated Hose Production Line PP Single Wall Pipe Making Machine 7
PE PVC Corrugated Hose Production Line PP Single Wall Pipe Making Machine 8
PE PVC Corrugated Hose Production Line PP Single Wall Pipe Making Machine 9
PE PVC Corrugated Hose Production Line PP Single Wall Pipe Making Machine 10
PE PVC Corrugated Hose Production Line PP Single Wall Pipe Making Machine 11


PE PVC Corrugated Hose Production Line PP Single Wall Pipe Making Machine 12
PE PVC Corrugated Hose Production Line PP Single Wall Pipe Making Machine 13

  PE PVC Corrugated Hose Production Line PP Single Wall Pipe Making Machine 14    PE PVC Corrugated Hose Production Line PP Single Wall Pipe Making Machine 15 PE PVC Corrugated Hose Production Line PP Single Wall Pipe Making Machine 16
