Product Details:
|
| Specification: | 20-63m | Screw: | Single-screw |
|---|---|---|---|
| Inventer: | ABB | Temperature Controller: | Omron |
| Contactor: | Schneider | Customized: | Customized |
| Condition: | New | Warranty: | 1 Year |
| High Light: | 20mm Corrugated Pipe Extruder,Abb Inverter Pipe Machine,100kgh Pipe Extrusion Line |
||
Small Diameter PE PP Pipe Making Machine with Marking Line HDPE Pipe Extrusion Line
Technical conditions:
| 1,Power supply | 380v/3P/50Hz | |||
| 2,supply Material | HDPE | |||
| 3,Capacity of extrusion: | ||||
|
Model
|
Material
|
Max. capacity
|
Remarks |
|
| SD SJ-65×30 | HDPE | ≥50kg/h | Pipe extrusion | |
| SD SJ-25×25 | HDPE | ≥8kg/h | Marking line | |
| 4,Spec of pipe | Φ20-63mm | |||
| 5,Speed of line | 1-10m/min | |||
| 6,Central height of extruder: | 1000mm | |||
| 7,Operation direction | from right to left | |||
| 8,Cooling cycling water | ≤20℃ ≥0.3Mpa ～10T/h | |||
| 9,Compressed air | 0.4m3/min ＞0.5Mpa | |||
Small Diameter PE PP Pipe Making Machine with Marking Line HDPE Pipe Extrusion Line
1. The extruder adopts frequency converter control which has the features of easy adjustment, reliable running, stable working and low energy consumption. It adopts independent electric cabinet and it is easy for the whole machine's centralized control and operation.
2. The screw bolt and barrel of the extruder is made of good quality nitriding steel. The design is reasonable and the plasticizing effect is excellent and it features stable production.
3. Shaping of the pipe adopts center material feeding mold and vacuum sizing. Cooling method is the combination of spraying and leach so the precision of the pipe size is high and the outlook is good.
4. It adopts special-purpose roller type tractor and the pipe will not deform easily due to plasticity.
5. Soft pipe rolling machine adopts torque motor control which overcomes disadvantage of tension. It adopts independent electric cabinet control which is convenient for independent control and operation during production.
6. When producing small diameter pipe change winder to coiler for hard pipe and equip the line with suitable extruding mold, hard pipe can be produced. When producing big diameter pipe, it shall adopt caterpillar type tractor and change winder to pipe rack and equipped with suitable extruding mold and pipe cutting device to produce hard pipe.
Small Diameter PE PP Pipe Making Machine with Marking Line HDPE Pipe Extrusion Line
Process flow:
Plastic granules → Vacuum feeding →Single screw extruder → Co-extruder for mark line→ mould → vacuum tank →water cooling tank → haul off machine → cutting machine → stacker or automatic belling winder machine
1.Single screw extruder and mark line co-extruder
2.Die head. Due to the diameter, it can be design according customer requirments
3.Vacuum tank and water cooling tank: due to diameter, it can be designing of single, double vacuum chambers
4.Haul-offs: due to diameter, it can be designing of double, three, four, six, eight caterpillars

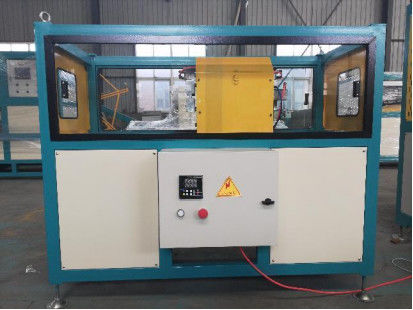

5.Cutter: due to diameter, it can be designing of saw cutter or planetary cutter
6.Stacker or automatic winder machine
Small Diameter PE PP Pipe Making Machine with Marking Line HDPE Pipe Extrusion Line
Details

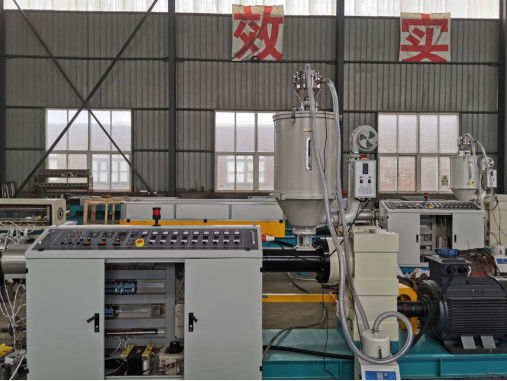

1, High effective single screw extruder with PLC control system.
Qingdao Win Win Machinery Co., Ltd. is a new type of high-tech enterprise specializing in R & D and production of extrusion machine. The company's main products -- plastic pipe extrusion complete production line.
Our production technology of single / double wall corrugated pipe machine, carbon spiral pipe machine and solid wall pipe machine has always been in the leading position in the industry.
If you need plastic extrusion equipment, please feel free to contact me!
