Product Details:
|
| Raw Material: | PE, PP, PVC, HDPE, HDPE/PP, PE/PP, LDPE | Screw Material: | 38crmoala |
|---|---|---|---|
| Output: | 500-1200kg/H | Extruder Type: | Conical Twi/Single Screw |
| Specification: | It Depends | Machine Color: | Customized |
| High Light: | Corrugated HDPE Tube Making Machine,1200kg/H Tube Making Machine,HDPE Corrugated Pipe Extruder |
||

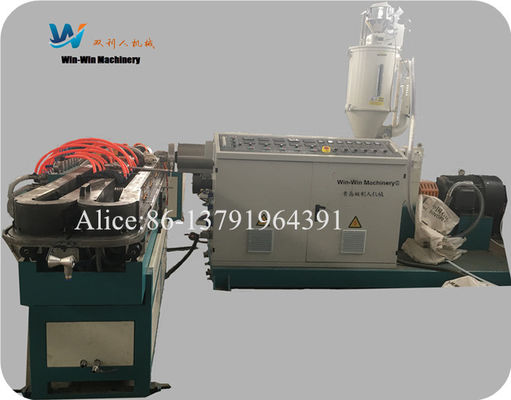

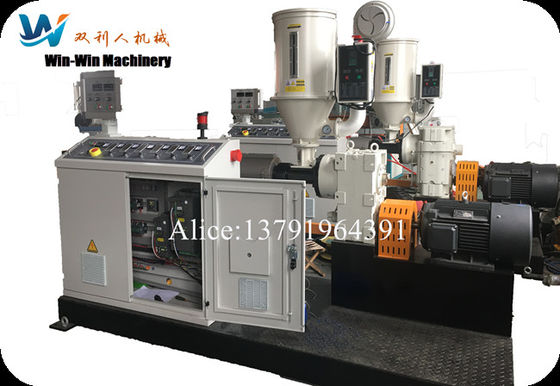

Corrugated Pipe Extrusion Line High Efficiency Single Screw Extruder
Material: HDPE or PP orPVC
Heat treatment: bimetallic
Heating type: Ceramic heating rings
PLC:B&R
Contactor: Schneider
Relay:APT
Air switch: Schneider
High-speed Double Position Winder
The equipment is independent research and development,which can automatically wind PPR, PE-RT or PE pipes. With the perfect combination of advanced mechanical structure and high precision PLC automatic control system. During the production process, it can ensure the uniform and orderly arrangement of pipe and run smoothly, speed free control, and it can be easily operated by a single person with a high degree ofautomation.
Main technical parameter:
|
Diameter(mm)
|
16-40dual | 20-63dual | 20-63 | 50-160 | 63-200 | 160-315 | 315-630 |
|
Extruder model
|
SJ51/105 | SJ65/132 | SJ51/105 | SJ65/132 | SJ65/132 | SJ80/156 | SJ92/188 |
|
Extruder power
|
18.5AC | 37AC | 18.5AC | 37AC | 37AC | 55AC | 110DC |
|
Max lineal speed
|
10 | 15 | 15 | 8 | 3.5 | 3 | 1.2 |
| Max capacity | 120 | 250 | 120 | 250 | 250 | 350 |
800
|

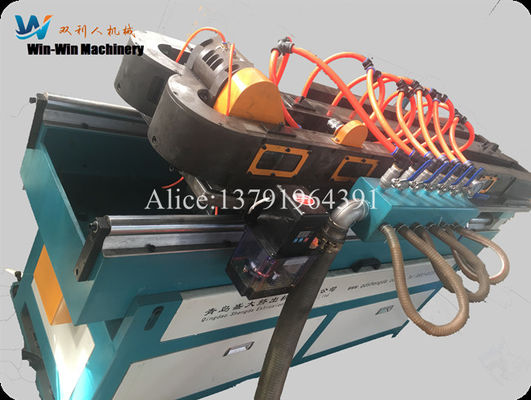

Corrugated Pipe Extrusion Line Forming machine:
1. Surface is wear-resistance.
2. Corrugated shape is specially designed and calculated software, which has better ring-stiffness.
3. The sliding base of forming machine is geared and equipped with large size needle roller bearing,which improves the bearing capacity of
sliding base.More stable operation,longer life.
4. Production line has fixed center height, no need to adjust again when changing model
5. Modules can be widely used in different lines, easy to install and disassemble.
6. Unique internal modules cooling design, enables the cooling water to flow rapidly
7. Using advanced PLC and color LCD control system; stable and reliable production,high degree automation
The complete extrusion line runs full-automatically.
Pressure water-cooling for mould blocks greatly increase the production speed; the maximum speed is 6.24m/min
Efficient vacuum system for forming perfect pipes
FAQ:
1.Are you manufacturer or trading company?
We are manufacturer for plastic pipe machines, PVC profile machines and plastic recycling machines.
2.Why choose us?
We have 15 years experience for producing plastic machine. Experienced engineers and skilled workers with
good raw material to build the machines with heart and honesty to guarantee the performance of the machines.
3.Delivery time:
40-60 working days.
4.Payment terms:
30% of total amount should be paid by T/T as down payment, the
balance (70% of total amount) should be paid before delivery by T/T or irrevocable
L/C(at sight).
5.After-sales service:
Free Spare Parts ;
Field installation, commissioning and training ;
Field maintenance and repair service ;
Video/Online technical support.
6.Warranty:
12 month
7. How to send an inquiry?
Plase tell us what kind of plastic pipe and diameters you want to produce, we will prepare proposal for you.
