Product Details:
|
| High Light: | Pet Recycling Grinding Machine Granulator,PS Recycling Grinding Machine Granulator,800x800mm PP Grinding Machine |
||
|---|---|---|---|
Plastic Crusher for PP/PE/PS/Pet/ Recycling Grinding Machine Granulator Agricultural Film Drum
This series light crusher is of beautiful exterior design and high-quality steel structure welding. The rotor uses the latest V-shaped cutting technology to send the crushed material to the central, which not only avoids the material impacting on the sidewall, but also makes the sidepiece wearable, and reduces dust producing. The main shaft is made of high-quality material. It has advantage of assembly operation, static balance check, good toughness, hard to deformation, stable working, and light vibration.
Cabinet: The main box adopts solid welded steel structure, precision machining by CNC machine tool. It has the characteristics of large thickness, high strength, strong wear resistance, no pollution and long service life. Equipped with exquisite buckle, fastening durable, scientific design, easy to lift pressure, the upper box can be easily opened, hydraulic device, convenient maintenance.
Spindle: made of high quality steel, dynamic and static balance, not easy to deform when working, stable working state. Adopting the latest "V" cutting technology, according to the different grinding materials, the rotor can be processed into different quantities. Make the blade in the work to achieve uniform cutting, energy saving and emission reduction, reduce noise.
Tray and plate special crusher, is mainly for crushing wide but thin plastic products. It has a dedicated main shaft and unique feeding hopper, which is easy to feed trays and wide plate products in. Wide products do not need to be cut, which spares the recycling process, saves energy, reduces labor intensity and cost and improves the efficiency of pulverization and recycling.
Mainly for crushing wide but thin plastic products and it has a dedicated main shaft and unique feeding hopper, which is easy to feed trays and wide plate products in. Wide products do not need to be cut, which spares the recycling process, saves energy, reduces labor intensity and cost and improves the efficiency of pulverization and recycling.
Specifications
| MODEL | FEED MOUTH SIZE(MM) | MAIN MOTOR POWER(KW) | MOVING KNIFE QUANTITY(PIS) | FIXED KNIFE QUANTITY(PIS) |
ROTOR DIAMETER (MM) |
OUT PUT (KG/H) |
| QDSD-Z800 | 800*800 | 45-75 | 6/10 | 4/6 | Ф600 |
600
|
| QDSD-Z 1000 | 1000*1000 | 75-110 | 10/14 | 4/6 | Ф700 | 800 |
| QDSD-Z 1200 | 1200*1200 | 90-132 | 10/14/18 | 4/6 | Ф800 | 1000 |
| QDSD-Z 1500 | 1500*1200 | 160-200 | 14/18 | 4/6 | Ф1000 | 1200 |

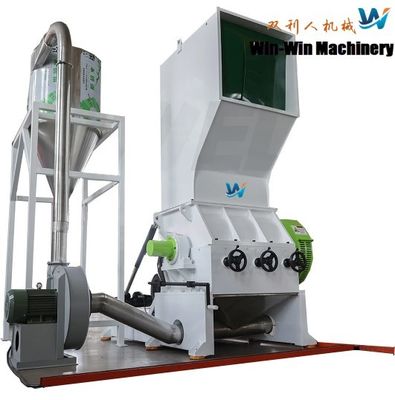

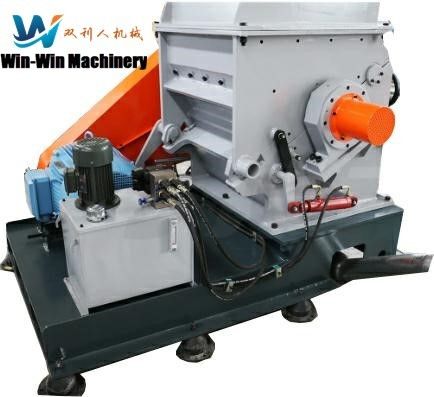

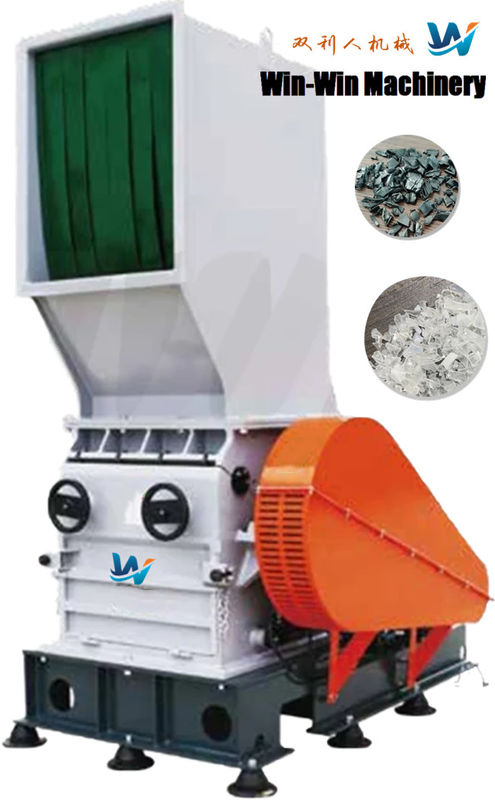

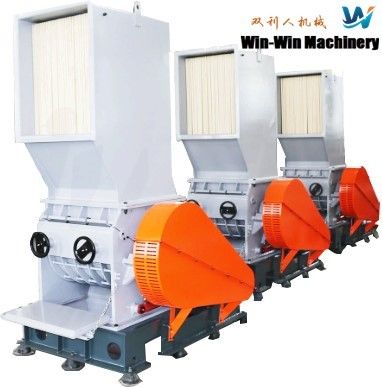

More Pics of Our Machine:
Process Steps
