Bridge Prestressed Ribbed PE Corrugated Flat / Bamboo Pipe Extrusion Machine

Bridge Prestressed Ribbed PE Corrugated Flat / Bamboo Pipe Extrusion Machine
Bridge Prestressed Ribbed PE Corrugated Flat / Bamboo Pipe Extrusion Machine
Bridge Prestressed Ribbed PE Corrugated Flat / Bamboo Pipe Extrusion Machine Bridge Prestressed Ribbed PE Corrugated Flat / Bamboo Pipe Extrusion Machine Bridge Prestressed Ribbed PE Corrugated Flat / Bamboo Pipe Extrusion Machine Bridge Prestressed Ribbed PE Corrugated Flat / Bamboo Pipe Extrusion Machine Bridge Prestressed Ribbed PE Corrugated Flat / Bamboo Pipe Extrusion Machine Bridge Prestressed Ribbed PE Corrugated Flat / Bamboo Pipe Extrusion Machine

Large Image :  Bridge Prestressed Ribbed PE Corrugated Flat / Bamboo Pipe Extrusion Machine

Product Details:
Place of Origin: China
Brand Name: Win-Win
Certification: CE
Model Number: SJ
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Packaging Details: Stretch Film+Wood Conton
Delivery Time: 45workdays
Payment Terms: T/T
Contact Now

Bridge Prestressed Ribbed PE Corrugated Flat / Bamboo Pipe Extrusion Machine

Description
Extruder: Single-Screw Place Of Origin: Shandong, China
Screw Barrel Raw Material: 38crmoaia Extruder Heater: Cast Aluminum / Ceramic
Core Components:: Motor, PLC, Gearbox Warranty: 1 Year
High Light:

Bamboo Pipe Extrusion Machine

,

Ribbed PE Corrugated Pipe Extruder

,

Bridge Prestressed Ribbed Pipe Extruder

Bridge Prestressed Ribbed PE Corrugated Flat/bamboo Pipe Machine Production Line Extrusion Machine

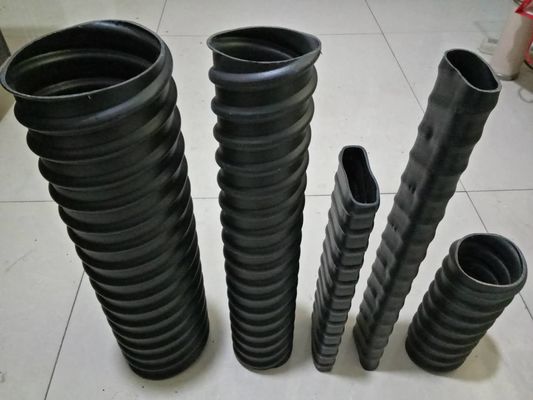

This type of corrugated pipe is mainly used in highway, railway, municipal bridge engineering, elevated bridge, water conservancy project, large iron and steel plant construction (pre buried bolt Engineering) and large-scale high-rise building engineering pre-stressed corrugated pipe system products, grouting construction.

Bridge Prestressed Ribbed PE Corrugated Flat / Bamboo Pipe Extrusion Machine 0



Bridge Prestressed Ribbed PE Corrugated Flat / Bamboo Pipe Extrusion Machine 1

Bridge Prestressed Ribbed PE Corrugated Flat / Bamboo Pipe Extrusion Machine 2

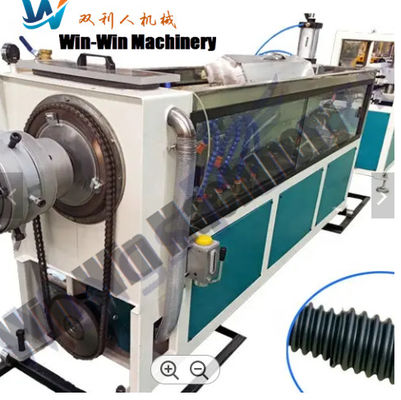

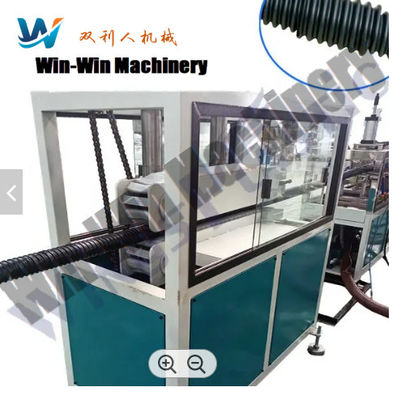

Corrugated Pipe Forming Machine

Production speed: 20-30m/min
Plate material: 38CrMoAlA

High surface hardness, wear resistance, fatigue strength, heat resistance and corrosion resistance. Utilizing nitriding technology and high diamensional precision after treatment. The service life is double than 45#steel .
Cooling method: water cooling
The purple part of the plate is perforated for water circulation, which can ensure that the forming machine and mould are always keeping in low temperature, the pipe inner side more smooth, increase the production speed and product quality.
Forming machine adjustment:
manual control left and right,
Electric control up and down.

PP PE corrugated pipe machine: can carve customer's logo, can choose double cavity or three cavity in one set of mould.

When changing the size, just need to move up and down the forming machine, no need to move out all set of mould, which can save a lot of time for customer.
Mould is made of 38CrMoAlA, same material as screw barrel, high quality and longer working life



The Plastic Extruder Mouth Mould: new designed core bar and mouth mould can combine properly.

When changing the size, there is no need to change the core bar and mouth mould seperately like the old design.

Which can save more than 1h for the clean of the waste material.

Specification

NO
Name
Unit
Qty
1
Vacuum Feeder and Hopper Dryer
Set
1
2

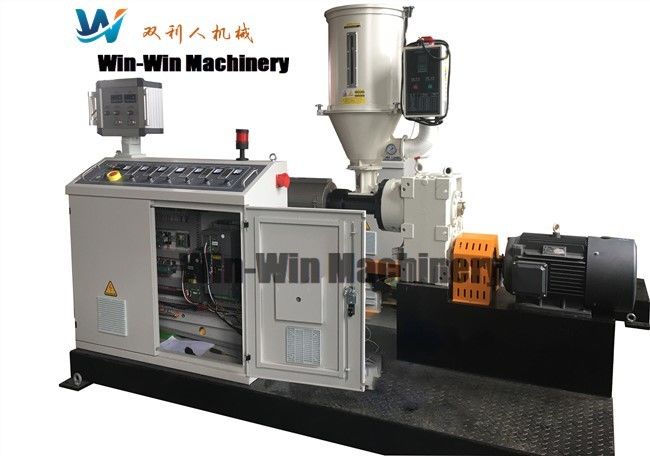

SJ-65/30 Single Screw Extruder
Set
1
3
Corrugated pipe die head
Set
1
4
Core bar and mouth mould
Set
1
5
pipe forming Mould(12-32mm)
Set
1
6
Corrugated pipe forming machine
Set
1
7
Double station Winding machine
Set
1
8
Free spare parts
Pcs
19
9
PLC control system
Set
1





Bridge Prestressed Ribbed PE Corrugated Flat / Bamboo Pipe Extrusion Machine 3

Bridge Prestressed Ribbed PE Corrugated Flat / Bamboo Pipe Extrusion Machine 4

Bridge Prestressed Ribbed PE Corrugated Flat / Bamboo Pipe Extrusion Machine 5

Bridge Prestressed Ribbed PE Corrugated Flat / Bamboo Pipe Extrusion Machine 6

Bridge Prestressed Ribbed PE Corrugated Flat / Bamboo Pipe Extrusion Machine 7

Bridge Prestressed Ribbed PE Corrugated Flat / Bamboo Pipe Extrusion Machine 8

Bridge Prestressed Ribbed PE Corrugated Flat / Bamboo Pipe Extrusion Machine 9

Bridge Prestressed Ribbed PE Corrugated Flat / Bamboo Pipe Extrusion Machine 10

Bridge Prestressed Ribbed PE Corrugated Flat / Bamboo Pipe Extrusion Machine 11

Bridge Prestressed Ribbed PE Corrugated Flat / Bamboo Pipe Extrusion Machine 12Bridge Prestressed Ribbed PE Corrugated Flat / Bamboo Pipe Extrusion Machine 13Bridge Prestressed Ribbed PE Corrugated Flat / Bamboo Pipe Extrusion Machine 14
